EP1S60F1508C6N

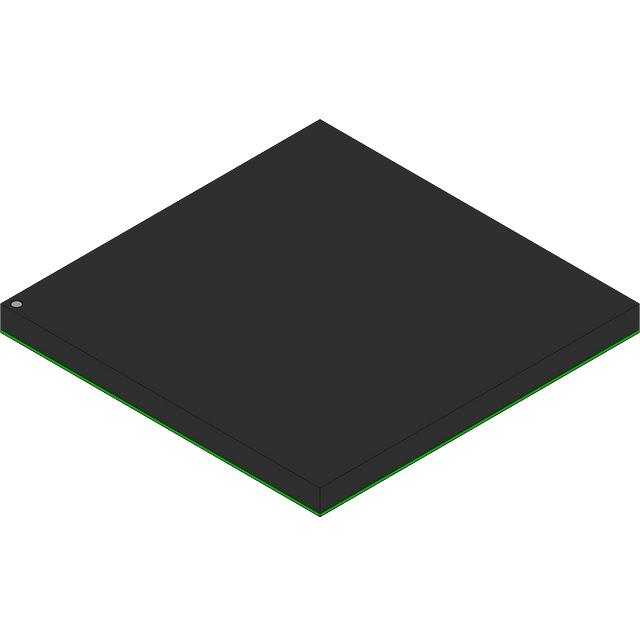

The EP1S60F1508C6N is an Altera Stratix® field programmable gate array designed for high-density digital designs. It combines a large logic fabric, substantial on-chip memory, and a very high I/O count in a compact 1508-BBGA FCBGA surface-mount package.

Targeted at commercial-temperature applications, this device is suited to systems that require extensive logic resources, significant embedded memory, and dense external interfacing while maintaining RoHS compliance.

Key Features

• Logic Capacity  Approximately 57,120 logic elements provide the programmable resources needed for complex digital functions and system-on-chip style integration.
• Embedded Memory  Total on-chip RAM of 5,215,104 bits (approximately 5.2 Mbits) supports FIFOs, buffering, and on-die storage for algorithm implementation.
• High I/O Density  1,203 available I/O pins enable extensive external interfacing for multi-channel designs, parallel buses, or large connector arrays.
• Power Supply  Operates from a core voltage supply range of 1.425 V to 1.575 V, supporting designs with defined core voltage requirements.
• Package & Mounting  1508-BBGA FCBGA package (supplier package: 1508-FBGA, 30×30) in a surface-mount format for compact board-level integration.
• Operating Grade  Commercial temperature range from 0 °C to 85 °C, suitable for standard commercial electronics deployments.
• Environmental Compliance  RoHS compliant for lead-free manufacturing and assembly processes.

Typical Applications

• High-density digital systems  Use the large logic capacity to implement complex state machines, custom processors, and parallel datapaths within a single FPGA.
• I/O-rich interface hubs  Leverage the 1,203 I/Os to aggregate multiple external buses, sensors, or communication channels in a compact design.
• Embedded memory buffering  Apply the approximately 5.2 Mbits of on-chip RAM for data buffering, packet queues, and temporary storage in streaming or packetized systems.
• Board-level integration  The 1508-BBGA FCBGA surface-mount package supports dense board layouts where space and pin-count are critical.

Unique Advantages

• Large programmable fabric: Provides roughly 57,120 logic elements to consolidate multiple functions into a single device and reduce external ASIC/FPGA count.
• Substantial on-chip memory: Approximately 5.2 Mbits of embedded RAM reduces dependence on external memory for many buffering and storage tasks.
• Exceptional I/O capacity: 1,203 I/Os enable flexible interfacing and simplify routing of multi-channel or multi-protocol systems.
• Compact FCBGA packaging: The 1508-BBGA (30×30) package delivers high pin density in a surface-mount form factor for space-constrained PCBs.
• Commercial temperature suitability: Rated 0 °C to 85 °C for standard commercial deployments and environments.
• RoHS compliant: Supports lead-free manufacturing and assembly requirements.

Why Choose EP1S60F1508C6N?

The EP1S60F1508C6N is positioned for designers who need a high-density FPGA with extensive logic resources, generous embedded memory, and very high I/O capacity in a compact surface-mount package. Its combination of approximately 57,120 logic elements, about 5.2 Mbits of on-chip RAM, and 1,203 I/Os makes it well suited for complex commercial electronic systems that consolidate multiple functions into a single FPGA.

Backed by Altera’s Stratix family lineage and offered in a 1508-BBGA FCBGA package with RoHS compliance and a commercial operating range, this device provides a balance of integration and board-level density for long-lived, scalable commercial designs.
