M2GL060T-VFG784

The M2GL060T-VFG784 is an IGLOO2 family FPGA optimized for mid-density designs that require integrated memory and logic in a low-power flash-based architecture. This device pairs a 4-input LUT-based FPGA fabric and on-chip memory subsystem with a commercial-grade voltage and temperature operating range to support a variety of embedded applications.

With 56,520 logic elements and approximately 1.87 Mbits of embedded RAM, the M2GL060T-VFG784 targets designs that need substantial programmable logic and local memory while operating from a low-voltage supply and in a compact 784-FBGA package.

Key Features

• Logic Density  56,520 logic elements (cells) to implement complex programmable logic and state machines.
• Embedded Memory  Total on-chip RAM of 1,869,824 bits (approximately 1.87 Mbits) for data buffering, lookup tables, and local storage.
• FPGA Fabric Architecture  Industry-standard 4-input LUT-based FPGA fabric with integrated math blocks and multiple embedded memory blocks (IGLOO2 family architecture).
• Low-Power Flash Technology  Flash-based configuration and low-power design characteristics inherent to the IGLOO2 family.
• Power Supply  Nominal core voltage range of 1.14 V to 1.26 V for low-voltage operation.

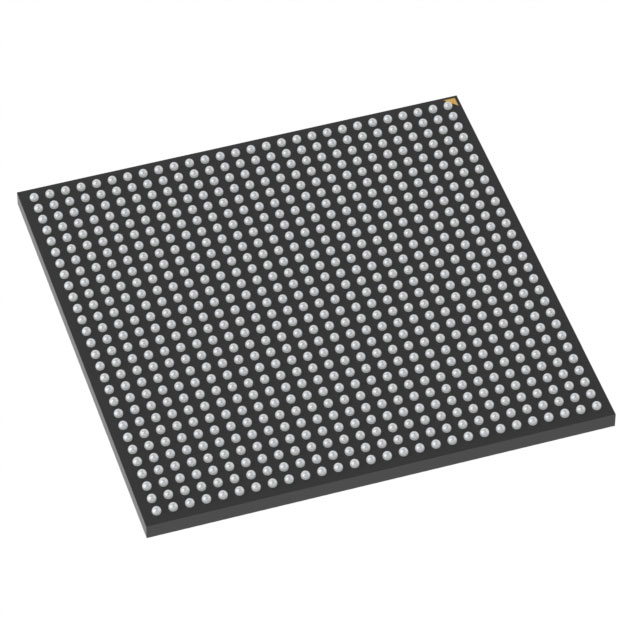

• Package and Mounting  784-ball FBGA (supplier package: 784-VFBGA, 23 × 23) in a surface-mount form factor for dense board integration.
• Operating Range  Commercial temperature grade with an operating range of 0 °C to 85 °C.
• Compliance  RoHS-compliant manufacturing.

Typical Applications

• Memory-centric embedded systems  Use the IGLOO2 memory subsystem and local RAM for buffering, packet handling, or protocol bridging where on-chip memory reduces external memory dependence.
• Control and signal processing  Implement finite-state machines, DSP-friendly math blocks, and custom control logic using the FPGA fabric and logic element density.
• Compact, low-power designs  Ideal for applications that require low-voltage core operation and a compact FBGA package for space-constrained PCBs.
• Secure and reliable embedded functions  Leverage flash-based configuration and IGLOO2 family security-related features for designs that require non-volatile configuration and stable operation.

Unique Advantages

• High logic capacity in a compact package: 56,520 logic elements in a 784-FBGA (23 × 23) enable dense implementations without a large board footprint.
• On-chip memory for reduced BOM: Approximately 1.87 Mbits of embedded RAM lowers the need for external memory devices and simplifies board-level design.
• Low-voltage core operation: 1.14–1.26 V supply range supports lower power consumption and compatibility with modern low-voltage systems.
• Surface-mount FBGA for manufacturability: Standard surface-mount 784-ball FBGA package supports automated assembly and high-volume production.
• Commercial-grade robustness: Rated for 0 °C to 85 °C operation to meet typical commercial and industrial-adjacent use cases.
• RoHS compliant: Conforms to RoHS requirements for environmentally conscious designs and global market acceptance.

Why Choose M2GL060T-VFG784?

The M2GL060T-VFG784 provides a balanced combination of programmable logic capacity and embedded memory within the IGLOO2 family architecture. Its flash-based FPGA fabric, substantial logic element count, and embedded RAM make it well suited for mid-density embedded designs that require on-chip memory and low-voltage operation.

This device is appropriate for engineers and teams developing compact, low-power systems that benefit from reduced external BOM, surface-mount packaging, and comprehensive family-level documentation and resources provided for IGLOO2 devices.

Request a quote or submit a purchase inquiry to get pricing and availability for the M2GL060T-VFG784.
