M2GL060T-VFG784I

The M2GL060T-VFG784I is an IGLOO2 Field Programmable Gate Array (FPGA) from Microchip Technology designed for industrial-grade embedded and communications applications. This device integrates a 4-input LUT-based FPGA fabric with dedicated math blocks, multiple embedded memory blocks and on-chip nonvolatile flash memory technologies as described in the IGLOO2 family documentation.

With 56,520 logic elements and approximately 1.87 Mbits of on-chip RAM, the M2GL060T-VFG784I targets designs that require significant programmable logic capacity, reliable operation over a wide temperature range and a compact 784-ball FBGA package for space-constrained boards.

Key Features

• Logic Capacity — 56,520 logic elements (LEs) for implementing medium- to high-density programmable logic and custom accelerators.
• Embedded Memory — Approximately 1.87 Mbits of on-chip RAM to support buffering, state machines and intermediate data storage without immediate external memory dependency.
• IGLOO2 FPGA Fabric — Industry-standard 4-input LUT-based fabric with integrated math blocks and multiple embedded memory blocks as described for the IGLOO2 family.
• On-Chip Nonvolatile and SRAM — IGLOO2 family integration includes on-chip flash and embedded SRAM resources for configuration and runtime storage.
• I/O and High-Speed Interfaces (Family Capability) — The IGLOO2 family documentation cites high-performance SerDes lanes and memory interface capabilities; use these family capabilities where applicable in system design.

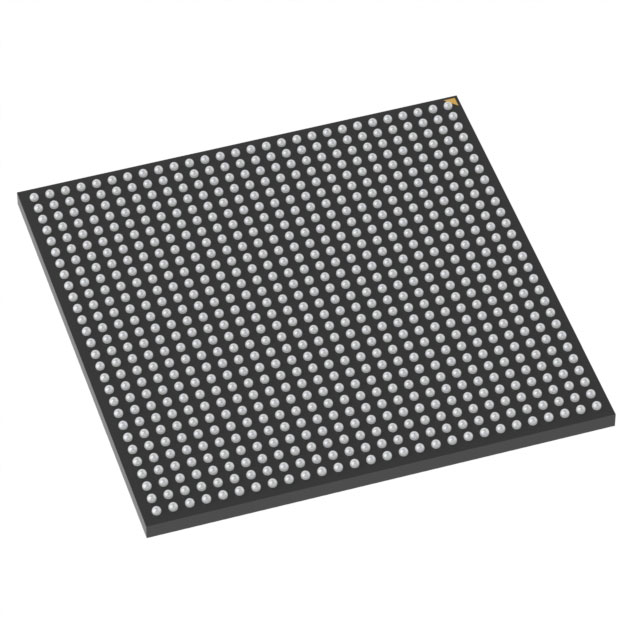

• Package — 784-FBGA (supplier device package: 784-VFBGA, 23×23) optimized for high-density board layouts.
• Power — Core supply range 1.14 V to 1.26 V for power budgeting and regulator selection.
• Industrial Temperature Grade — Rated for operation from −40 °C to 100 °C to meet demanding environmental conditions.
• Mounting — Surface-mount device suitable for modern PCB assembly processes.
• RoHS Compliant — Conforms to RoHS environmental requirements.

Typical Applications

• Industrial Control — Implement motor control, motion sequencing and custom I/O processing using the device’s programmable logic and embedded memory while benefiting from the −40 °C to 100 °C rating.
• Communications Infrastructure — Use the IGLOO2 family’s high-performance SerDes and memory interface capabilities for protocol bridging and packet processing in networking equipment.
• Embedded Processing and Acceleration — Offload compute-intensive tasks to integrated math blocks and custom logic implemented across 56,520 logic elements.
• Secure, Low-Power Systems — Leverage the family’s low-power flash technology and on-chip nonvolatile storage for secure configuration and reduced BOM in energy-conscious designs.

Unique Advantages

• Substantial Logic Density: 56,520 logic elements provide the capacity to implement complex state machines, datapaths and hardware accelerators without immediate external FPGA resources.
• Embedded Memory Resources: Approximately 1.87 Mbits of on-chip RAM reduce dependency on external memory for many buffering and scratchpad needs, simplifying system architecture.
• Industrial Reliability: −40 °C to 100 °C operating range and industrial grade classification support deployment in harsh and temperature-variable environments.
• Compact, High-Density Package: The 784-FBGA (23×23) package delivers high I/O density in a compact footprint for space-constrained PCBs.
• Tight Power Envelope: A defined core supply range (1.14 V to 1.26 V) simplifies power-supply design and helps with predictable power budgeting.
• Family-Level Integration: IGLOO2 family features—integrated LUT fabric, math blocks, on-chip flash and embedded SRAM—enable tightly integrated system designs and reduced external BOM.

Why Choose M2GL060T-VFG784I?

The M2GL060T-VFG784I brings a balanced mix of programmable logic capacity, embedded memory and rugged industrial specifications suited for demanding embedded and communications applications. Its 56,520 logic elements and approximately 1.87 Mbits of on-chip RAM allow designers to implement complex functions on-chip while the IGLOO2 family’s integrated architecture supports compact, low-power system designs.

This device is well suited to engineering teams and procurement groups building industrial controls, networking equipment and embedded accelerators that require a reliable, factory-tested FPGA in a high-density FBGA package with defined power and thermal characteristics.

Request a quote or submit an inquiry for pricing and availability for the M2GL060T-VFG784I today.
