M2GL060TS-1VFG784

The M2GL060TS-1VFG784 is an IGLOO2 family Field Programmable Gate Array (FPGA) from Microchip Technology. It combines a 4-input LUT-based FPGA fabric with integrated math resources and multiple embedded memory blocks to address mid-density programmable logic requirements.

Targeted at communications and embedded applications that require a balance of logic capacity, I/O density and low-power operation, this device provides 56,520 logic elements, approximately 1.87 Mbits of embedded RAM and 395 I/O pins in a compact 784‑FBGA package.

Key Features

• Logic Capacity  56,520 logic elements designed for mid-density FPGA designs and programmable logic implementation.
• Embedded Memory  Approximately 1.87 Mbits of on-chip RAM for buffering, packet processing and local data storage.
• I/O Density  395 user I/O pins supporting complex interfacing and system-level connectivity.
• FPGA Architecture  Industry-standard 4-input LUT fabric with integrated math blocks and multiple embedded memory blocks as described for the IGLOO2 family.
• On‑chip Subsystems  IGLOO2 devices include a high-performance memory subsystem with on-chip flash, 32 KB embedded SRAM and multiple DMA controllers (family capability).
• Power and Supply  Core supply range of 1.14 V to 1.26 V to support low-voltage system designs.

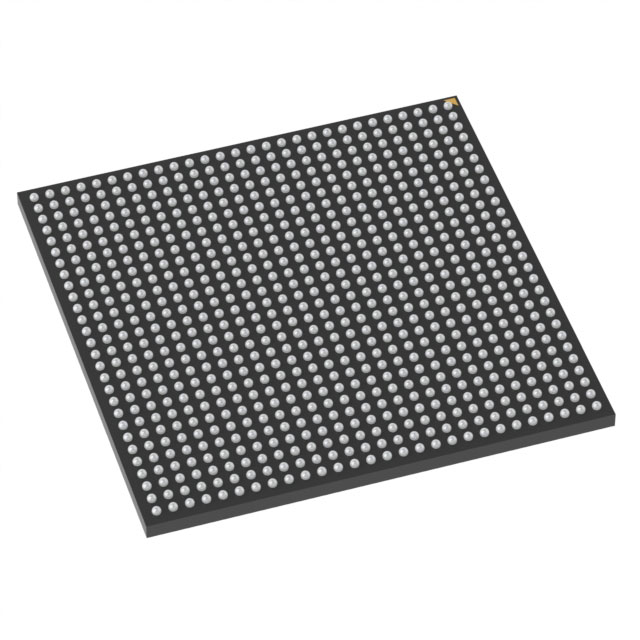

• Package & Mounting  784‑FBGA (supplier package 784‑VFBGA, 23×23 mm) in a surface-mount form factor for compact board layouts.
• Operating Range  Commercial grade operation from 0 °C to 85 °C.
• Compliance  RoHS compliant.

Typical Applications

• Communications & Networking  High I/O count and embedded memory make the device suitable for packet processing, protocol bridging and interface aggregation.
• Embedded Control & Signal Processing  Integrated math blocks and on-chip RAM support real-time control loops, DSP functions and data buffering.
• Memory Subsystems  IGLOO2 family memory features and DMA support enable designs that require coordinated on‑chip and external memory management.
• Industrial Automation (Commercial Systems)  Commercial-temperature automation equipment and instrumentation that operate within 0 °C to 85 °C can leverage the device’s logic density and I/O.

Unique Advantages

• Balanced Logic and Memory:  56,520 logic elements combined with ~1.87 Mbits of embedded RAM provide a practical balance for mid-range FPGA designs without over-provisioning.
• High I/O Count:  395 I/Os simplify board-level integration for systems requiring many external interfaces or parallel connections.
• Compact, Surface‑Mount Package:  784‑FBGA (23×23 mm) enables dense PCB layouts while retaining a high pin count.
• Low‑Voltage Core Operation:  1.14 V to 1.26 V supply supports low-power system architectures and modern power-rail designs.
• On‑Chip Memory Subsystem:  Family-level integration of on-chip flash, embedded SRAM and DMA controllers helps reduce external memory dependence and simplifies system design.
• Regulatory Compatibility:  RoHS compliance supports use in assemblies requiring hazardous-substance conformity.

Why Choose M2GL060TS-1VFG784?

The M2GL060TS-1VFG784 positions itself as a mid-density, low-voltage FPGA option within the IGLOO2 family that pairs substantial logic capacity and I/O density with an integrated memory subsystem. It is well-suited for designers who need a compact, surface-mount FPGA that supports complex interfacing, local buffering and embedded processing functions within a commercial temperature envelope.

Choosing this device provides a clear path for applications that require on‑chip memory and high I/O counts while keeping board area and power budgets in check. The IGLOO2 family documentation and device electrical specifications support engineering evaluation and system integration.

Request a quote or submit an inquiry to receive pricing, availability and additional technical support for the M2GL060TS-1VFG784.
