M2GL060TS-1VFG784I

The M2GL060TS-1VFG784I is an IGLOO2 series FPGA in a 784-FBGA (784-VFBGA, 23×23) package, designed for industrial-grade embedded applications. It provides a compact, surface-mount solution with a high I/O count and substantial on-chip resources for complex digital designs.

As part of the IGLOO2 family, the device is built around a 4-input LUT-based FPGA fabric with integrated math blocks, multiple embedded memory blocks and SerDes-capable interfaces, and leverages low-power flash technology and on-chip memory subsystems described in the series datasheet.

Key Features

• Logic Capacity — 56,520 logic elements for implementing medium-to-high density digital functions.
• Embedded Memory — Approximately 1.87 Mbits of on-chip RAM (1,869,824 bits) to support buffering, state machines and local storage.
• High I/O Count — 395 user I/O pins to interface with sensors, peripherals and board-level systems.

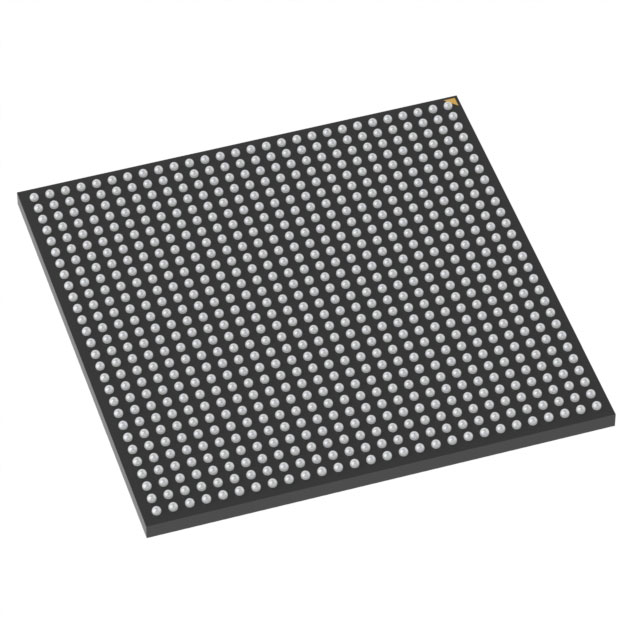

• Package — 784-FBGA (supplier device package: 784-VFBGA, 23×23) surface-mount package for compact board layouts.
• Power Supply — Core voltage range of 1.14 V to 1.26 V as specified for this device.
• Industrial Temperature Range — Rated for operation from −40 °C to 100 °C for deployment in industrial environments.
• Series-Level Architecture — IGLOO2 family architecture includes a 4-input LUT fabric, integrated math blocks, multiple embedded memory blocks and SerDes-capable interfaces, and uses low-power flash technology as described in the series datasheet.
• Regulatory — RoHS-compliant.

Typical Applications

• Industrial Control and Automation — The industrial temperature rating (−40 °C to 100 °C) and high I/O count enable robust control, signal aggregation and interface roles on factory and process-control boards.
• Network and Communication Interfaces — Large logic capacity and series-level SerDes support make the device suitable for protocol bridging, packet manipulation and high-density I/O applications.
• Embedded Systems and Instrumentation — On-chip RAM and logic elements enable local data processing, buffering and deterministic control functions in embedded instrumentation.

Unique Advantages

• High logic density with compact footprint: 56,520 logic elements in a 784-FBGA package reduce board area while supporting complex designs.
• Ample on-chip memory: Approximately 1.87 Mbits of embedded RAM supports data buffering and state retention without immediate need for external memory.
• Extensive I/O capability: 395 I/Os allow direct connection to multiple peripherals, sensors and buses, simplifying PCB routing and system integration.
• Industrial reliability: Industrial-grade temperature range (−40 °C to 100 °C) and RoHS compliance support deployment in demanding environments with regulatory compliance.
• Low-power flash-based series architecture: IGLOO2 series devices use low-power flash technology and include integrated memory subsystem features described in the datasheet, aiding designs that prioritize non-volatile configuration and power efficiency.

Why Choose M2GL060TS-1VFG784I?

The M2GL060TS-1VFG784I delivers a balance of logic density, embedded memory and I/O capacity in a compact 784-FBGA surface-mount package tailored for industrial applications. Its specified core voltage range and wide operating temperature make it suitable for systems that require deterministic digital processing and robust environmental tolerance.

Engineers selecting this IGLOO2 device benefit from a series architecture that combines a LUT-based fabric, integrated math and memory blocks, and SerDes-capable interfaces as described in the datasheet—offering a scalable platform for mid-to-high complexity designs backed by Microchip’s documented electrical and timing specifications.

If you would like pricing, lead-time or a formal quote for M2GL060TS-1VFG784I, request a quote or submit an inquiry to our sales team for further assistance.
