M2GL060TS-VFG784

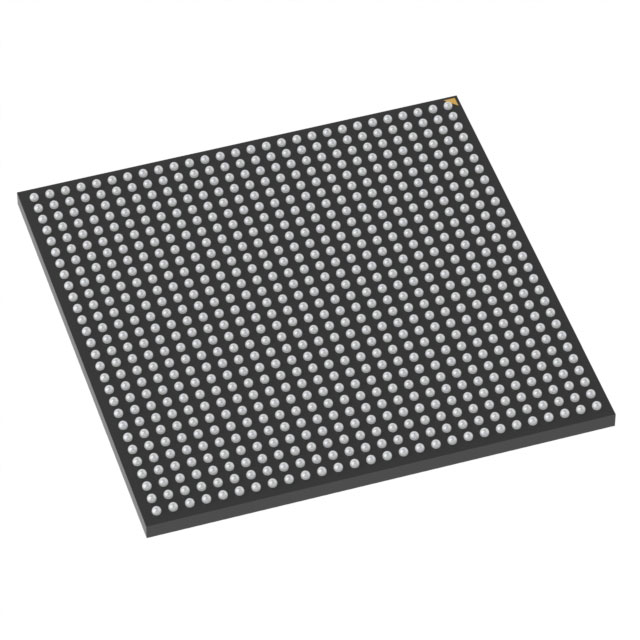

The M2GL060TS-VFG784 is an IGLOO2 field-programmable gate array from Microchip Technology integrating a LUT-based FPGA fabric with embedded math blocks and on-chip memory resources. This surface-mount FPGA offers 56,520 logic elements, 395 user I/O pins, and approximately 1.87 Mbits of total on-chip RAM, making it suitable for mid-to-high density control, signal processing, and interface tasks within commercial temperature environments.

Designed for systems that need a balance of logic capacity, dense I/O, and compact packaging, the device operates on a low core supply range of 1.14 V to 1.26 V and is supplied in a 784-VFBGA (23×23) package. It is RoHS compliant and specified for commercial operating temperatures (0 °C to 85 °C).

Key Features

• FPGA Fabric Architecture  4-input LUT-based fabric with integrated math blocks and multiple embedded memory blocks as part of the IGLOO2 family architecture.
• Logic Density  56,520 logic elements for complex glue logic, protocol handling, and mid-density processing tasks.
• Embedded Memory  Total on-chip RAM: 1,869,824 bits (approximately 1.87 Mbits) for buffers, FIFOs, and working memory.
• High I/O Count  395 user I/O pins to support wide parallel interfaces, sensor arrays, and multi-channel front-ends.
• Power and Voltage  Core voltage supply range from 1.14 V to 1.26 V to support low-voltage system designs.
• Package and Mounting  784-FBGA (supplier package: 784-VFBGA, 23×23) in a surface mount form factor for compact PCB integration.
• Operating Grade  Commercial temperature grade specified from 0 °C to 85 °C.
• Environmental  RoHS compliant.

Typical Applications

• Communications and Networking  Implement protocol bridging, packet processing, and interface logic using the device’s high I/O count and FPGA fabric.
• Industrial Control (Commercial Systems)  Motor control, PLC front-ends, and machine I/O where mid-density logic and compact packaging are required within commercial temperature ranges.
• Embedded Signal Processing  Data pre-processing, custom DSP blocks, and packet buffering leveraging embedded memory and math blocks.
• Test & Measurement Equipment  Custom timing, capture, and interface adaptation for laboratory and commercial test instrumentation.

Unique Advantages

• Balanced Logic Density:  56,520 logic elements provide substantial implementation capacity without the footprint of much larger FPGAs.
• Generous I/O Count:  395 user I/O pins simplify board-level interfacing and reduce the need for external multiplexing.
• Compact, Surface-Mount Package:  784-VFBGA (23×23) package enables high pin density in a compact footprint for space-constrained PCBs.
• Low-Voltage Core Operation:  Core supply range of 1.14 V–1.26 V supports low-power system design choices and modern power rails.
• On-Chip Memory Resources:  Approximately 1.87 Mbits of embedded RAM for local buffering, FIFOs, and working storage without relying on external memory.
• Commercial Temperature & RoHS Compliance:  Specified for 0 °C to 85 °C operation and RoHS-compliant for standard commercial deployments.

Why Choose M2GL060TS-VFG784?

The M2GL060TS-VFG784 combines a mid-to-high logic density FPGA fabric with substantial I/O and embedded memory in a compact 784-FBGA surface-mount package. Its low-voltage core and IGLOO2 family architecture—featuring 4-input LUTs, math blocks, and integrated memory subsystems—make it well suited for designers who need flexible programmable logic and dense interfacing in commercial temperature applications.

This device addresses designs that require a balance of performance, integration, and board-level density, and it benefits from Microchip’s IGLOO2 architecture and documentation for development and timing closure workflows.
