M2GL150T-FCV484

The M2GL150T-FCV484 is an IGLOO2 Field Programmable Gate Array (FPGA) IC offering a high logic capacity and substantial embedded memory in a compact BFBGA package. With 146,124 logic elements and approximately 5.12 Mbits of on-chip RAM, it targets designs that require dense programmable logic and local memory resources.

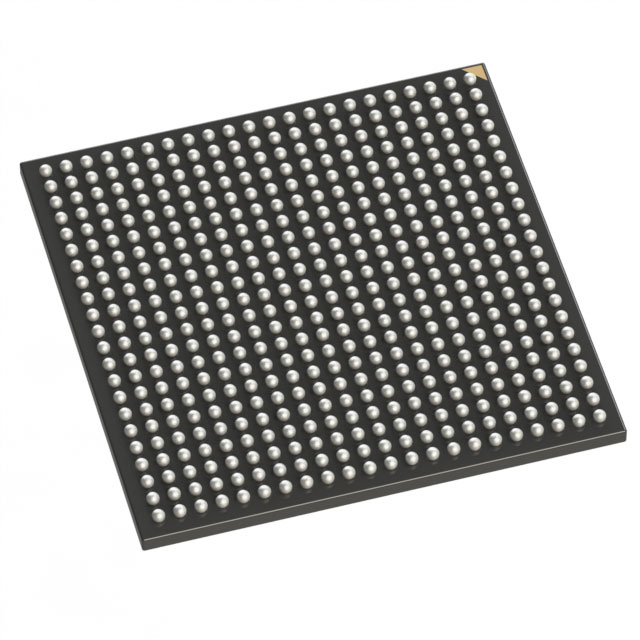

Key device attributes visible in hardware include 248 user I/O pins, a wide supply voltage window (1.14 V to 2.625 V), a surface-mount 484-BFBGA package (supplier package: 484-FBGA, 19×19), and commercial-grade operation from 0 °C to 85 °C. The device is RoHS compliant.

Key Features

• Logic Capacity  146,124 logic elements provide a large pool of programmable resources for complex digital designs.
• Embedded Memory  Approximately 5.12 Mbits of on-chip RAM for frame buffering, lookup tables, and intermediate data storage.
• I/O Resources  248 user I/O pins to support multiple parallel interfaces and board-level connectivity requirements.
• Power and Voltage  Operates across a supply voltage range of 1.14 V to 2.625 V to accommodate different core and I/O domain requirements.
• Package and Mounting  Surface-mount 484-BFBGA package; supplier device package listed as 484-FBGA (19×19) for compact PCB integration.
• Temperature and Grade  Commercial-grade device specified for operation from 0 °C to 85 °C.
• Environmental Compliance  RoHS compliant for use in assemblies requiring lead-free components.

Typical Applications

• High-density logic implementations  Use the large logic element count to implement complex state machines, custom datapaths, and protocol processing.
• Memory-intensive functions  Leverage approximately 5.12 Mbits of embedded RAM for buffering, packet queues, and on-chip data storage.
• Multi-interface designs  Utilize 248 I/O pins to connect parallel buses, peripheral interfaces, or mixed-signal front ends at the board level.
• Compact board-level integration  The 484-BFBGA (19×19) package supports densely routed PCB layouts where board space is constrained.

Unique Advantages

• High logic density: 146,124 logic elements enable consolidation of multiple functions into a single device, reducing BOM count.
• Substantial on-chip RAM: Approximately 5.12 Mbits of embedded memory reduces reliance on external memory and improves data throughput.
• Generous I/O count: 248 user I/Os allow flexible interfacing with peripherals and external components without additional glue logic.
• Flexible voltage support: Broad supply voltage range (1.14 V to 2.625 V) accommodates diverse power-domain requirements on modern boards.
• Compact BFBGA packaging: 484-BFBGA / 484-FBGA (19×19) form factor enables high-density PCB implementations while maintaining surface-mount assembly compatibility.
• RoHS compliant: Meets lead-free assembly requirements for contemporary electronics manufacturing.

Why Choose M2GL150T-FCV484?

The M2GL150T-FCV484 IGLOO2 FPGA combines a large pool of logic elements with significant embedded RAM and a high I/O count in a compact BFBGA package, making it well suited for commercial-grade designs that need concentrated programmable resources on a single device. Its supply voltage flexibility and RoHS compliance further simplify integration into modern board designs.

This device is targeted at engineers and procurement teams designing systems that require dense programmable logic, on-chip memory, and extensive I/O in a surface-mount package, offering a balance of integration and board-level efficiency supported by the IGLOO2 family specifications.

Request a quote or contact sales to discuss availability, pricing, and lead times for the M2GL150T-FCV484.
