M2GL150T-FCV484I

The M2GL150T-FCV484I is an IGLOO2 Field Programmable Gate Array (FPGA) from Microchip Technology designed for industrial applications. It provides a high logic capacity FPGA fabric with substantial embedded RAM, a broad I/O complement, and a compact 484-ball BFBGA package for surface-mount deployment.

With 146,124 logic elements, approximately 5.12 Mbits of on-chip RAM and 248 I/O pins, this device targets designs that require dense programmable logic, significant internal memory, and robust operating range in industrial environments.

Key Features

• FPGA Core IGLOO2 Field Programmable Gate Array architecture with 146,124 logic elements for implementing complex digital functions.
• Embedded Memory Approximately 5.12 Mbits of total on-chip RAM to support data buffering, state storage, and intermediate processing.
• I/O Capacity 248 general-purpose I/O pins to accommodate dense external connectivity and peripheral interfacing.
• Power and Supply Operates across a supply range of 1.14 V to 2.625 V to match a variety of core and I/O voltage domains.

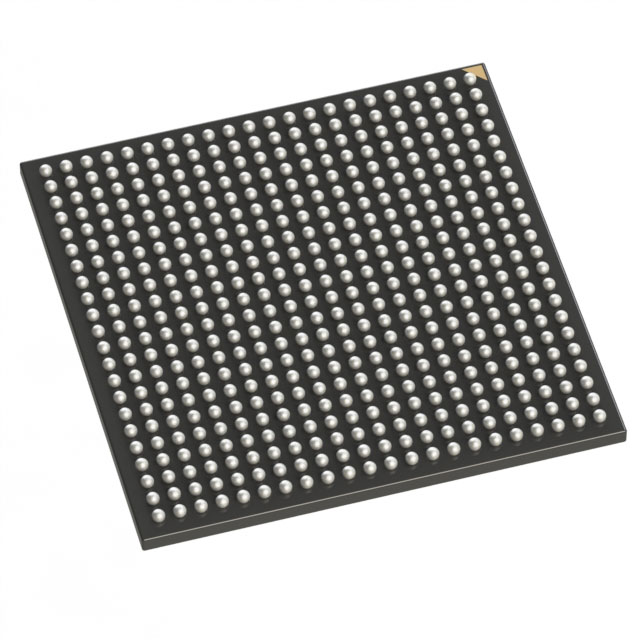

• Package and Mounting 484-BFBGA package (supplier device package: 484-FBGA, 19×19) in a surface-mount form factor for compact board integration.
• Industrial Temperature Range Rated for operation from −40 °C to 100 °C, suitable for industrial temperature environments.
• Regulatory RoHS compliant for meeting lead-free material requirements.

Typical Applications

• Industrial Control Implement custom control logic, sensor interfacing, and data aggregation functions that require robust operation across industrial temperature ranges.
• Communications & Networking Provide programmable packet processing, protocol bridging, or custom data-path logic where high logic density and on-chip RAM are needed.
• Test & Measurement Realize custom signal processing, trigger logic, and data buffering using the device’s ample logic elements and embedded memory.

Unique Advantages

• High Logic Density: 146,124 logic elements enable implementation of large, complex digital designs without external programmable logic.
• Substantial On-Chip Memory: Approximately 5.12 Mbits of RAM reduces reliance on external memory for buffering and intermediate storage.
• Generous I/O Count: 248 I/Os simplify integration with multiple peripherals, sensors, and high-pin-count interfaces.
• Industrial-Grade Operation: −40 °C to 100 °C operating range supports deployment in demanding industrial environments.
• Compact Surface-Mount Package: 484-BFBGA (19×19) package allows dense PCB layouts while maintaining robust connectivity.
• RoHS Compliant: Conforms to lead-free material requirements for environmentally conscious designs.

Why Choose M2GL150T-FCV484I?

The M2GL150T-FCV484I balances high logic capacity, significant embedded memory, and a broad I/O set in a compact surface-mount BFBGA package, making it a practical choice for industrial designs that require programmable logic and on-chip resources. Its wide supply voltage range and industrial temperature rating support flexible power architectures and reliable operation in harsh environments.

This device is well suited to engineering teams developing complex control, communication, and measurement systems who need scalable FPGA resources and a compact footprint from a Microchip Technology FPGA offering.

Request a quote or submit an inquiry for pricing and availability to begin integrating the M2GL150T-FCV484I into your next design.
