XC2S15-6TQG144C

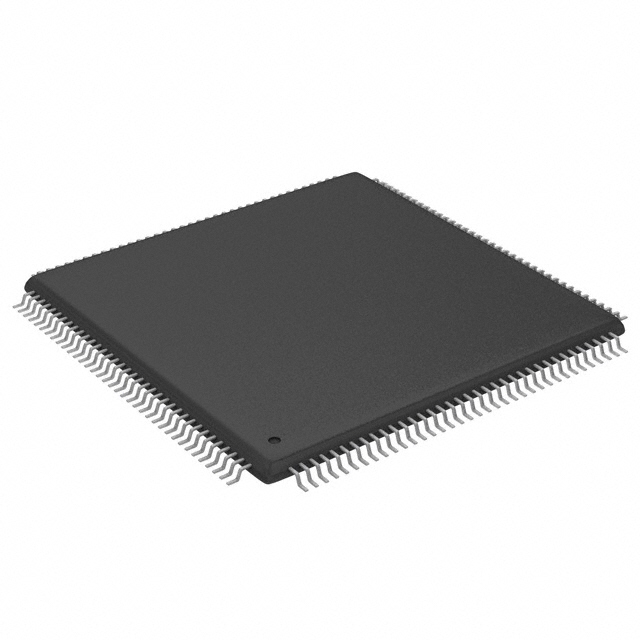

The XC2S15-6TQG144C is an AMD Spartan®-II Field Programmable Gate Array (FPGA) provided in a 144-pin low-profile quad-flat package. The device integrates 432 logic elements, approximately 16,384 bits of on-chip RAM, 86 programmable I/Os and an estimated 15,000 gates.

Packaged for surface-mount assembly and operating from a 2.375 V to 2.625 V supply with a commercial temperature rating (0 °C to 85 °C), this FPGA is specified for designs that require a balanced mix of logic, embedded memory and I/O in a compact footprint.

Key Features

• Core Logic  Provides 432 logic elements for implementing custom digital logic and control functions.
• Embedded Memory  Approximately 16,384 bits of on-chip RAM for small buffers, state machines and local storage.
• Gate Count  Estimated 15,000 gates that describe the device density for mid-range logic integration.
• I/O Count  86 programmable I/Os to interface with peripherals, sensors and external logic.
• Power  Operates from a defined core supply range of 2.375 V to 2.625 V.
• Package & Mounting  144-LQFP package case; supplier device package listed as 144-TQFP (20×20). Surface-mount mounting type for standard PCB assembly.
• Temperature & Grade  Commercial operating temperature range of 0 °C to 85 °C; classified as commercial grade.
• Environmental Compliance  RoHS compliant for regulations restricting hazardous substances.

Typical Applications

• Embedded Systems  Implement control logic and peripheral interfaces where moderate logic density and on-chip RAM are required.
• Custom I/O and Glue Logic  Use the 86 I/Os to adapt and interface disparate digital components on compact PCBs.
• Prototyping and Evaluation  A compact surface-mount FPGA option for validating logic partitions and small-scale designs.

Unique Advantages

• Balanced Logic and Memory: Combines 432 logic elements with approximately 16,384 bits of RAM to support both control logic and local buffering.
• Generous I/O Count: Eighty-six configurable I/Os provide flexible external interfacing without additional I/O expanders.
• Compact Surface-Mount Package: 144-LQFP (supplier 144-TQFP 20×20) enables dense board layouts and standard SMT assembly.
• Defined Power Envelope: Narrow supply voltage range (2.375 V–2.625 V) simplifies power-supply selection and design.
• Commercial Temperature Rating: Rated 0 °C to 85 °C for typical commercial electronics applications.
• RoHS Compliant: Meets common environmental requirements for restricted substances.

Why Choose XC2S15-6TQG144C?

The XC2S15-6TQG144C positions itself as a compact Spartan®-II FPGA option that brings together moderate logic capacity, embedded RAM and a substantial I/O complement in a surface-mount 144-pin package. Its defined supply range and commercial temperature rating make it appropriate for a wide range of standard electronic designs that need on-chip programmability without excessive density.

Engineers and procurement professionals selecting this device benefit from a known AMD Spartan®-II architecture and clear, verifiable specifications for logic elements, memory bits, I/O count, supply voltage and package details—helping streamline BOM decisions and board-level integration.

Request a quote or submit a pricing and availability inquiry for the XC2S15-6TQG144C to receive current lead times and ordering information.
