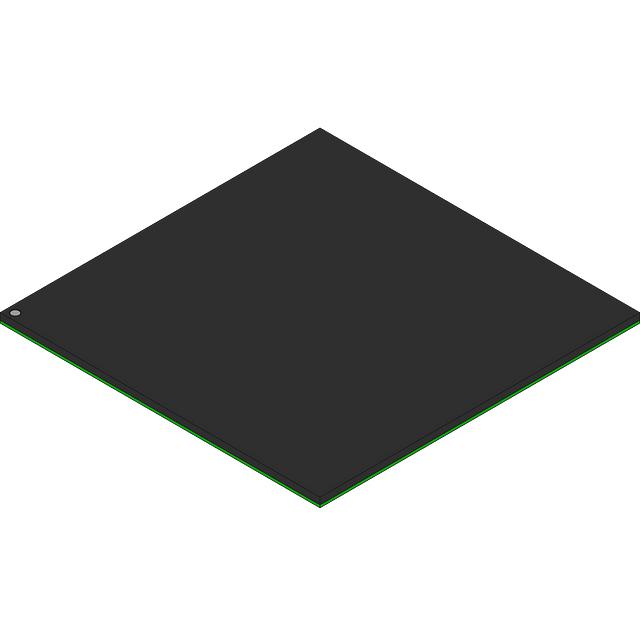

XC4085XLA-09BG560I

The XC4085XLA-09BG560I is a field programmable gate array (FPGA) in the XC4000XLA/XV family, featuring a balance of logic density, on-chip memory and high I/O count for industrial applications. Its combination of 7,448 logic elements, approximately 0.10 Mbits of embedded RAM and 404 I/Os supports complex, reconfigurable designs that require substantial interfacing and custom logic implementation.

Packaged in a 560-LBGA exposed pad metal package with surface-mount mounting and an operating range of -40 °C to 100 °C, this industrial-grade device is designed for deployment where robust thermal and environmental performance are required. The device operates from a 3 V to 3.6 V supply and is RoHS compliant.

Key Features

• Core Logic — 3,136 logic blocks and 7,448 logic elements provide the programmable fabric needed for medium-complexity custom logic and state machines; roughly 55,000 equivalent gates enable comprehensive logic integration.
• Embedded Memory — Total on-chip RAM of 100,352 bits (approximately 0.10 Mbits) supports local buffering, lookup tables and small data storage without immediate dependence on external memory.
• I/O Capacity — 404 I/O pins give extensive connection options for peripherals, sensors, bus interfaces and custom I/O routing.
• Package and Assembly — 560-LBGA exposed pad, metal package (supplier package: 560-MBGA, 42.5 × 42.5 mm) with surface-mount mounting for industrial PCBs and thermal conduction through the exposed pad.
• Power and Temperature — Operates from 3 V to 3.6 V and specified for an industrial operating temperature range of -40 °C to 100 °C, supporting deployment in demanding environments.
• Regulatory Compliance — RoHS compliant, supporting environmental and materials compliance requirements.

Typical Applications

• Industrial Control and Automation — Implement custom control logic, signal processing and I/O bridging with abundant logic elements and 404 I/Os, suitable for factory or process automation equipment.
• Embedded System Integration — Use as a configurable glue logic and processing element in embedded platforms that require on-chip memory and flexible interfacing.
• Communications and Networking — Deploy programmable protocol handling, interface translation and packet processing functions leveraging the device’s gate equivalent and I/O count.
• Custom Logic Acceleration — Offload deterministic, latency-sensitive functions into FPGA fabric using available logic elements and embedded RAM for local data buffering.

Unique Advantages

• High Logic Density: 7,448 logic elements and 3,136 logic blocks enable implementation of moderately complex digital systems without excessive external components.
• On-chip RAM for Local Storage: Approximately 0.10 Mbits of embedded memory reduces the need for small external RAM in many control and buffering tasks.
• Large I/O Count: 404 I/Os allow direct interfacing to numerous peripherals and buses, simplifying board-level connectivity and reducing external multiplexing.
• Industrial Temperature Rating: Specified for -40 °C to 100 °C operation, supporting deployment in a wide range of industrial environments.
• Robust Package Design: 560-LBGA exposed pad metal package with surface-mount mounting improves thermal conduction and supports reliable assembly on industrial PCBs.
• Environmental Compliance: RoHS compliance supports environmental regulations and corporate sourcing requirements.

Why Choose XC4085XLA-09BG560I?

The XC4085XLA-09BG560I offers a practical combination of logic capacity, embedded memory and extensive I/O in a package and temperature rating suited for industrial applications. It is positioned for engineers who need configurable hardware resources and reliable thermal performance in mid-range FPGA designs.

As part of the XC4000XLA/XV family and manufactured by AMD, this device provides a scalable option for designs that require moderate gate counts, on-chip RAM and high I/O density while maintaining industrial temperature and RoHS compliance.
