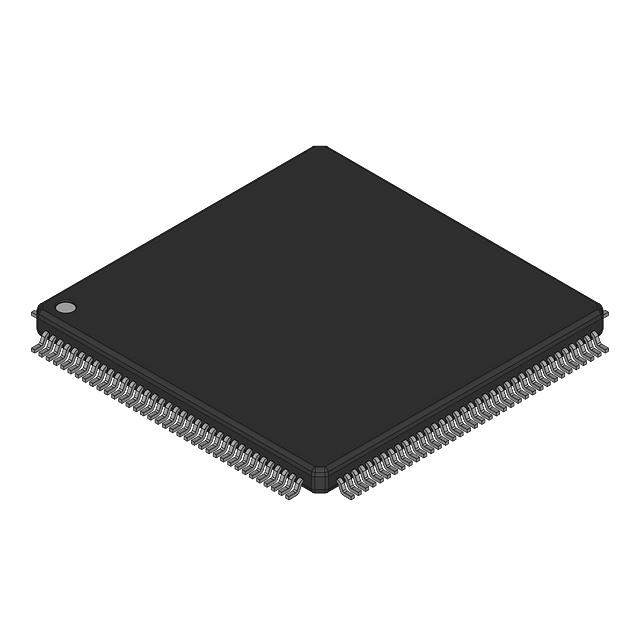

XC5215-6HQ208C0359

The XC5215-6HQ208C0359 is a commercial-grade Field Programmable Gate Array (FPGA) from the XC5200 family, manufactured by AMD. It delivers a mid-range programmable logic solution with 1,936 logic elements and approximately 23,000 gates in a 208-pin BFQFP exposed pad package.

Designed for commercial electronic designs, this surface-mount FPGA offers a high pin-count I/O (164 I/O) and industry-standard 5 V supply operation (4.75 V to 5.25 V), making it suitable for a wide range of board-level integration scenarios within its rated 0 °C to 85 °C operating range.

Key Features

• Core Logic  Provides 1,936 logic elements delivering approximately 23,000 gates for mid-range programmable logic implementations.
• IO Capacity  164 user I/O pins to support complex interfacing and parallel signal requirements.
• Package & Mounting  208-BFQFP exposed pad package (supplier device package: 208-PQFP, 28×28) in a surface-mount format for PCB assembly.
• Power  Operates from a 4.75 V to 5.25 V supply, compatible with 5 V system domains.
• Operating Range & Grade  Commercial-grade device rated for 0 °C to 85 °C operation.
• Environmental Compliance  RoHS compliant for environmental and regulatory alignment.

Typical Applications

• Commercial Embedded Systems  Suitable for commercial electronic products requiring a mid-range FPGA with defined operating temperature and commercial grade.
• High I/O Peripheral Control  Well suited to designs that require extensive external interfacing owing to 164 available I/O pins.
• Board-Level Surface-Mount Designs  208-pin BFQFP exposed pad package supports compact, surface-mount PCB assemblies.

Unique Advantages

• Well-balanced Logic Capacity: 1,936 logic elements and ~23,000 gates provide a predictable mid-range resource set for control and glue-logic applications.
• High Pin Count: 164 I/O pins enable flexible connectivity to peripherals, sensors, and external logic.
• Standard 5 V Supply Compatibility: Operates from 4.75 V to 5.25 V, simplifying integration with 5 V system domains.
• Surface-Mount BFQFP with Exposed Pad: 208-pin package in a 28×28 footprint offers a compact option for PCB assembly with an exposed pad for board-level mounting considerations.
• Commercial Temperature Rating: Rated for 0 °C to 85 °C, matching common commercial product requirements.
• RoHS Compliant: Conforms to RoHS requirements for environmentally compliant production.

Why Choose XC5215-6HQ208C0359?

The XC5215-6HQ208C0359 positions itself as a practical mid-range FPGA solution for commercial designs that require a balance of logic resources, a high I/O count, and a standard 5 V power domain. Its 208-pin BFQFP exposed pad surface-mount package and commercial temperature rating make it appropriate for board-level integration into compact assemblies.

Manufactured by AMD, this device is aimed at designers and teams building commercial embedded systems that need predictable logic capacity (1,936 logic elements, ~23,000 gates), extensive I/O, and RoHS compliance for streamlined production.

Request a quote or submit your purchasing inquiry to receive pricing and availability for the XC5215-6HQ208C0359.
