AS4C32M16D3L-12BCNTR

The AS4C32M16D3L-12BCNTR from Alliance Memory is a 512Mbit DDR3L SDRAM organized as 32M x 16, delivering reliable, high-speed memory performance with reduced power consumption. Built on proven DDR3 SDRAM technology, this device operates at 800MHz and supports an extended temperature range of 0°C to 95°C (case temperature), making it suitable for industrial and commercial applications requiring stable memory performance across varying environmental conditions.

Key Features

• 512Mbit Density with 32M x 16 Organization - Provides balanced capacity and data width for efficient memory subsystem design in embedded applications.
• DDR3L Low Voltage Operation - Operates at 1.283V to 1.45V supply voltage, reducing power consumption compared to standard DDR3 while maintaining full DDR3 performance characteristics.
• 800MHz Clock Frequency - Delivers 20ns access time for responsive system performance in data-intensive operations.
• Extended Temperature Range - Rated for 0°C to 95°C case temperature operation, ensuring reliability in industrial environments where ambient temperatures may fluctuate.

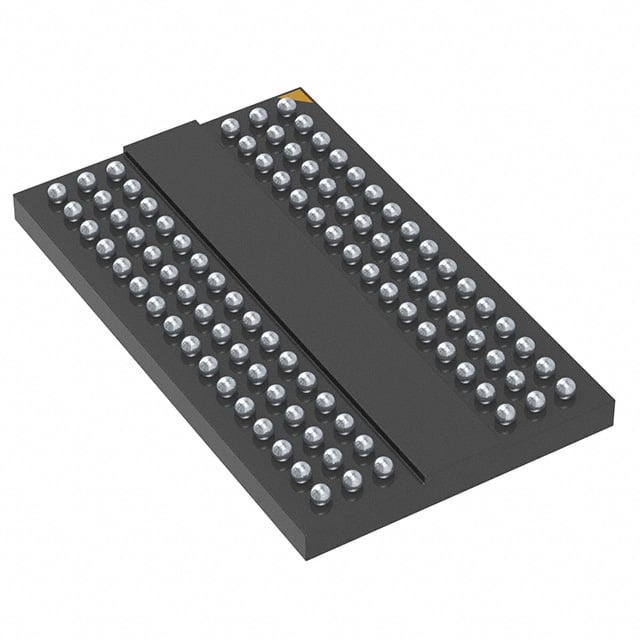

• Compact 96-FBGA Package - The 8mm x 13mm fine-pitch ball grid array package minimizes board space while providing robust electrical connectivity.

Typical Applications

• Industrial Automation Systems - This DDR3L SDRAM provides reliable memory for programmable logic controllers (PLCs), human-machine interfaces (HMIs), and industrial computers where extended temperature tolerance ensures consistent operation across factory floor conditions.
• Network Infrastructure Equipment - The 800MHz operation and parallel interface support high-throughput data buffering in routers, switches, and communication modules where reliable memory performance is critical for network stability.
• Embedded Computing Platforms - Suitable for single-board computers and embedded modules requiring moderate density volatile memory with low power consumption, particularly in space-constrained designs.
• Test and Measurement Instruments - The extended temperature rating and stable performance characteristics make this SDRAM appropriate for benchtop and portable test equipment that may operate in varied thermal environments.

Unique Advantages

• Reduced System Power Budget: DDR3L voltage specification lowers overall power consumption, minimizing heat generation and extending battery life in portable applications.
• Industrial Temperature Capability: Case temperature rating up to 95°C provides margin for reliable operation in thermally challenging enclosures without requiring aggressive cooling solutions.
• Standard DDR3 Interface Compatibility: Familiar parallel interface and timing characteristics simplify integration with existing DDR3-compatible memory controllers and reduce design risk.
• Compact Footprint: The 96-FBGA package delivers high pin density in a small form factor, conserving valuable board space for additional functionality.
• Active Lifecycle Status: Current production availability supports long-term design commitments and reduces obsolescence concerns for multi-year product lifecycles.

Why Choose AS4C32M16D3L-12BCNTR?

The AS4C32M16D3L-12BCNTR addresses the requirements of industrial and embedded systems that demand reliable DDR3L memory with extended temperature capability. Its combination of 512Mbit density, low voltage operation, and 0°C to 95°C case temperature rating makes it particularly well-suited for applications where standard commercial-grade components may not provide sufficient environmental robustness. The compact FBGA package and industry-standard DDR3 interface enable straightforward integration into both new designs and legacy platform upgrades.

For design teams developing industrial controls, network infrastructure, or embedded computing products with multi-year production horizons, this Alliance Memory DDR3L SDRAM offers a balance of proven technology, active availability, and thermal performance that supports reliable long-term operation.
