EMMC64G-TY29-5B102

The EMMC64G-TY29-5B102 is a packaged managed NAND flash device with an e•MMC™ 5.1 interface, delivering 512 Gbit of non-volatile TLC NAND in a single integrated package. It combines NAND media and an onboard e•MMC controller to provide standard host interfacing while handling flash media management, error control and performance optimization on-device.

Designed for commercial and industrial embedded storage, the device targets system boot, application storage and high-throughput data paths where e•MMC compliance, integrated management and configurable performance modes are required.

Key Features

• Core / Controller Packaged managed NAND with onboard e•MMC™ 5.1 controller that relieves the host of flash management, wear-leveling and error control tasks.
• Memory 512 Gbit capacity organized as 64G × 8 using TLC NAND. Factory configured with pseudo SLC (pSLC) mode for enhanced reliability and performance.
• Interface & Performance Compliant with JEDEC e•MMC™ 5.1. Supports variable clock frequencies to 200 MHz, three bus widths (1, 4, 8 bits) and multiple transfer modes including Single (up to 52 MB/s), DDR-104 (up to 104 MB/s), HS-200 (up to 200 MB/s) and HS-400 (up to 400 MB/s).
• Power & Voltage Operating voltage range listed as 2.7 V to 3.6 V; VCCQ options include 1.8 V and 3.3 V per device documentation.
• Reliability & Data Protection Internal ECC, CRC for command/data integrity, secure bad block erase, enhanced write protection (permanent and partial), and protection against sudden power failure during program operations. Supports device health reporting and Field Firmware Update (FFU).

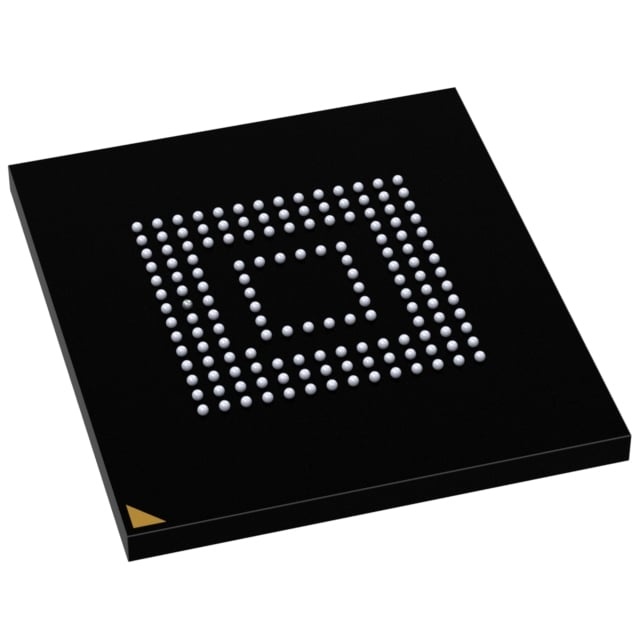

• Package & Temperature 153-ball JEDEC FBGA RoHS-compliant package (153-FBGA, 11.5 × 13 mm). Operating temperature range: −25 °C to +85 °C; storage temperature: −40 °C to +85 °C.

Typical Applications

• Commercial and Industrial Embedded Storage — Managed NAND storage for a wide range of commercial and industrial embedded systems that require a standard e•MMC interface and onboard flash management.
• System Boot and OS Storage — Supports alternate boot operation mode to provide a simple boot sequence for host processors and system firmware.
• Field-Updatable Devices — Field Firmware Update (FFU) support and device health reporting simplify maintenance and in-field updates.
• High-Throughput Data Paths — Supports HS-200 and HS-400 modes for systems that leverage higher sequential throughput.

Unique Advantages

• Factory-Configured pSLC Mode: Enhances endurance and performance by provisioning NAND in a pseudo-SLC configuration at manufacture.
• Integrated Flash Management: Onboard e•MMC controller manages ECC, wear-leveling and bad-block handling, reducing host software complexity.
• Flexible Interface Performance: Multiple bus widths and transfer modes (Single, DDR-104, HS-200, HS-400) allow tuning for capacity versus throughput.
• Robust Data Integrity Features: CRC, internal ECC, secure erase and sudden power-failure protection improve data reliability in the field.
• Compact JEDEC FBGA Package: 153-ball FBGA (11.5 × 13 mm) provides a small footprint for space-constrained designs.
• JEDEC e•MMC™ 5.1 Compliance: Backward compatibility with prior e•MMC revisions supports long-term system sustainment and compatibility.

Why Choose IC FLASH 512GBIT EMMC 153FBGA?

The EMMC64G-TY29-5B102 combines high-density NAND, an integrated e•MMC™ 5.1 controller and factory-configured pSLC mode to deliver a managed storage solution focused on integration and reliability. Its feature set—internal ECC/CRC, power-loss protection, FFU and device health reporting—addresses common embedded system storage requirements without adding host-side flash management complexity.

This device is suited to designers and procurement teams seeking JEDEC-compliant e•MMC storage for commercial and industrial embedded systems that require configurable performance modes, compact packaging and managed NAND functionality to simplify system design and lifecycle support.

Request a quote or submit an inquiry to get availability, pricing and further technical details for the EMMC64G-TY29-5B102.
