IS43DR16160A-37CBLI

IC DRAM 256MBIT PAR 84TWBGA
Part Description

IC DRAM 256MBIT PAR 84TWBGA

Quantity 209 Available (as of May 5, 2026)
Product CategoryMemory
ManufacturerIntegrated Silicon Solution Inc
Manufacturing StatusObsolete
Manufacturer Standard Lead TimeRFQ
Datasheet

Specifications & Environmental

Device Package84-TWBGA (8x12.5)Memory FormatDRAMTechnologySDRAM - DDR2
Memory Size256 MbitAccess Time500 psGradeIndustrial
Clock Frequency266 MHzVoltage1.7V ~ 1.9VMemory TypeVolatile
Operating Temperature-40°C ~ 85°C (TA)Write Cycle Time Word Page15 nsPackaging84-TFBGA
Mounting MethodVolatileMemory InterfaceParallelMemory Organization16M x 16
Moisture Sensitivity Level3 (168 Hours)RoHS ComplianceROHS CompliantREACH ComplianceREACH Unaffected
QualificationN/AECCNEAR99HTS Code8542.32.0024

Overview of IS43DR16160A-37CBLI – IC DRAM 256MBIT PAR 84TWBGA

The IS43DR16160A-37CBLI is a 256 Mbit DDR2 SDRAM organized as 16M × 16 with a parallel memory interface. It implements a double-data-rate architecture and on-chip features to support high-speed, synchronous data transfers for systems that require a compact 84-ball WBGA memory device.

This device targets designs that need a low-voltage (1.7–1.9 V) DDR2 memory solution with programmable latency, on-die termination and adjustable drive strength to match system timing and signaling requirements. It is specified for ambient operating temperatures from −40°C to 85°C.

Key Features

  • Core / Architecture DDR2 SDRAM with double-data-rate interface and 4-bit prefetch architecture enabling two data transfers per clock cycle.
  • Memory Organization 256 Mbit capacity configured as 16M × 16 with 4 internal banks (4M × 16 × 4 banks as defined in the datasheet).
  • Performance & Timing Supports programmable CAS latency (CL = 3, 4, 5, 6) and programmable additive latency (AL = 0–5). Key timing examples include a 266 MHz clock frequency, 500 ps access time, and a 15 ns write cycle time (word/page).
  • Power Low-voltage operation at VDD/VDDQ = 1.8 V ± 0.1 V (specified supply range 1.7 V–1.9 V) for compatibility with 1.8 V I/O and SSTL_18 signaling.
  • Interface & Signal Integrity Differential data strobe (DQS / DQS̅), on-die termination (ODT), on-chip DLL to align DQ and DQS with CK, and adjustable data-output drive strength to tune signal integrity.
  • Burst & Bank Operation Programmable burst lengths of 4 or 8 and four internal banks for concurrent operation and flexible access patterns.

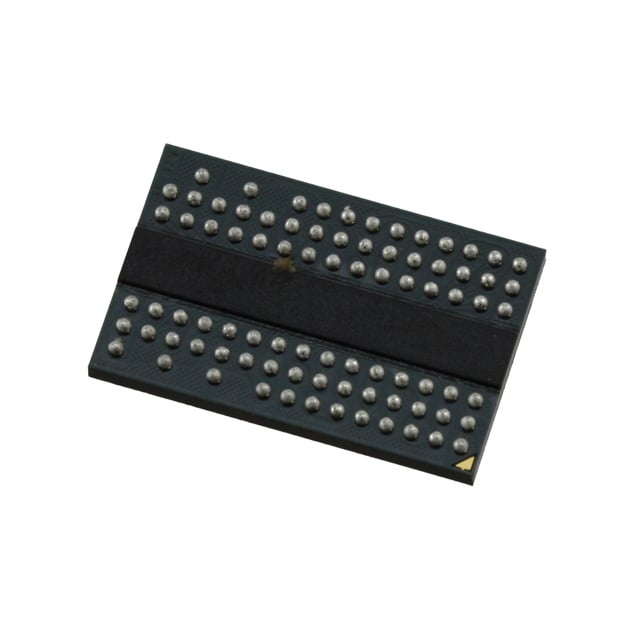

  • Package 84-ball WBGA package (84-TWBGA, 8 mm × 12.5 mm) delivering a compact surface-mount footprint for space-constrained board designs.
  • Operating Range Specified ambient temperature range of −40°C to 85°C (TA) for operation in extended-temperature environments.

Typical Applications

  • Parallel DDR2 memory expansion — Suitable for systems requiring a 256 Mbit parallel DDR2 SDRAM device with 16-bit data width.
  • High-speed buffering — Use where double-data-rate transfers and programmable latencies are needed for read/write buffering and temporary storage.
  • Compact board-level systems — The 84-ball WBGA package supports compact PCB layouts that require surface-mount DDR2 memory.

Unique Advantages

  • Low-voltage DDR2 operation: 1.7 V–1.9 V supply range and 1.8 V I/O compatibility reduce power compared with higher-voltage alternatives.
  • Flexible timing control: Programmable CAS and additive latencies plus selectable burst lengths enable tuning for a range of system timing requirements.
  • Signal integrity features: On-die termination, adjustable drive strength and on-chip DLL simplify meeting DDR2 signaling margins.
  • Compact package: 84-ball WBGA (8 mm × 12.5 mm) provides a small board footprint for space-limited designs.
  • Extended temperature operation: Specified for −40°C to 85°C ambient to support deployments in extended-temperature environments.

Why Choose IC DRAM 256MBIT PAR 84TWBGA?

The IS43DR16160A-37CBLI offers a practical DDR2 SDRAM option for designs that require a 256 Mbit, 16-bit parallel memory with configurable timing and on-die signal conditioning. Its combination of programmable latency, on-die termination, DLL alignment and adjustable drive strength allows system engineers to optimize memory timing and signal integrity without adding external components.

This device is suited to compact, board-level implementations where a small WBGA footprint, low-voltage operation and extended ambient temperature capability are important. It provides predictable, datasheet-defined electrical and timing parameters for integration into systems requiring DDR2 performance and configurability.

Request a quote or submit an inquiry to receive pricing and availability information for the IS43DR16160A-37CBLI.
