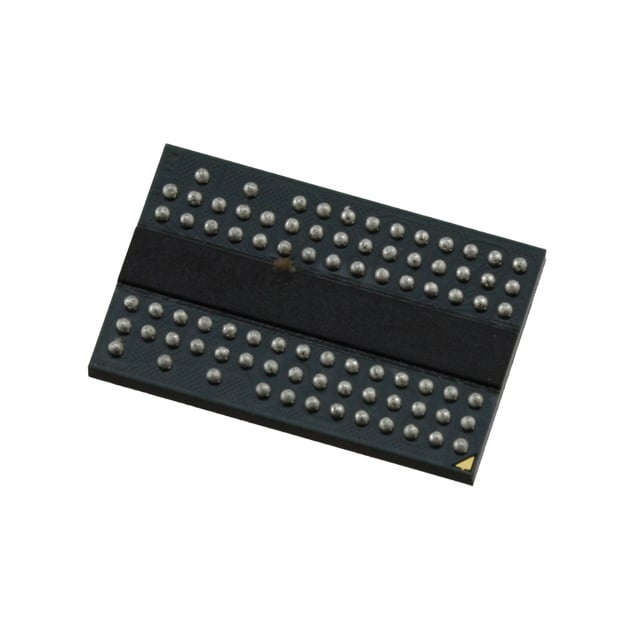

IS43DR16160A-3DBI
| Part Description |
IC DRAM 256MBIT PAR 84TWBGA |
|---|---|
| Quantity | 1,046 Available (as of May 5, 2026) |
| Product Category | Memory |
|---|---|
| Manufacturer | Integrated Silicon Solution Inc |
| Manufacturing Status | Obsolete |
| Manufacturer Standard Lead Time | RFQ |
| Datasheet |
Specifications & Environmental
| Device Package | 84-TWBGA (8x12.5) | Memory Format | DRAM | Technology | SDRAM - DDR2 | ||
|---|---|---|---|---|---|---|---|
| Memory Size | 256 Mbit | Access Time | 450 ps | Grade | Industrial | ||
| Clock Frequency | 333 MHz | Voltage | 1.7V ~ 1.9V | Memory Type | Volatile | ||
| Operating Temperature | -40°C ~ 85°C (TA) | Write Cycle Time Word Page | 15 ns | Packaging | 84-TFBGA | ||
| Mounting Method | Volatile | Memory Interface | Parallel | Memory Organization | 16M x 16 | ||
| Moisture Sensitivity Level | 3 (168 Hours) | RoHS Compliance | ROHS3 Compliant | REACH Compliance | REACH Unaffected | ||
| Qualification | N/A | ECCN | EAR99 | HTS Code | 8542.32.0024 |
Overview of IS43DR16160A-3DBI – IC DRAM 256Mbit PAR 84TWBGA
The IS43DR16160A-3DBI is a 256Mbit DDR2 SDRAM organized as 16M x 16 with a parallel memory interface in an 84‑TWBGA (8×12.5 mm) package. It implements a double-data-rate architecture with a 4‑bit prefetch and on‑chip DLL to deliver high‑speed, synchronous transfers at 1.8V I/O levels.
This device is intended for designs that require compact, parallel DDR2 memory with programmable timing, on‑die termination, and industrial ambient temperature performance.
Key Features
- Core / Architecture Double‑data‑rate DDR2 architecture with 4‑bit prefetch and on‑chip DLL for aligned DQ/DQS transitions; supports differential data strobe (DQS and /DQS).
- Memory Organization & Density 256 Mbit total; organized as 16M × 16 with 4 internal banks and programmable burst lengths of 4 or 8.
- Timing & Performance Clock frequency listed at 333 MHz; programmable CAS latencies CL = 3, 4, 5, 6 and programmable additive latency AL = 0–5. Typical access timing examples and speed grades are provided in the datasheet.
- Interface & I/O JEDEC‑standard 1.8V I/O (SSTL_18‑compatible) supporting double data transfers per clock cycle.
- Power & Voltage Supply voltage range 1.7 V to 1.9 V (VDD = VDDQ = 1.8 V ±0.1 V).
- Signal Integrity On‑die termination (ODT) and adjustable data‑output drive strength options.
- Package & Mounting 84‑TWBGA package (8 × 12.5 mm) suitable for high‑density board mounting.
- Operating Temperature Ambient operating range specified as −40°C to 85°C (TA).
- Write & Cycle Timing Write cycle time (word/page) specified at 15 ns; example key timing parameters (tRCD, tRP, tRAS, tRC) are listed per speed grade in the datasheet.
Typical Applications
- High‑speed system memory Use as parallel DDR2 SDRAM in systems that require predictable double‑data‑rate transfers and programmable latency.
- Compact, high‑density boards 84‑TWBGA (8×12.5 mm) package enables dense memory mounting in space‑constrained PCBs.
- Industrial ambient environments Operation across −40°C to 85°C ambient for applications requiring extended temperature range.
Unique Advantages
- Double‑data‑rate throughput: Supports two data transfers per clock cycle via DDR2 architecture and differential DQS for efficient high‑speed data movement.
- Flexible timing configuration: Programmable CAS latency (3–6) and additive latency (0–5) with selectable burst lengths (4 or 8) to match system timing requirements.
- SSTL_18‑compatible I/O and VDD tolerance: 1.7–1.9 V supply window and JEDEC 1.8V I/O compatibility simplify integration with 1.8V memory interfaces.
- Signal integrity features: On‑die termination and adjustable output drive strength help manage signal quality on high‑speed buses.
- Compact BGA package: 84‑TWBGA (8×12.5 mm) provides a small footprint for 256 Mbit density in space‑constrained designs.
- Industrial temperature capability: Specified ambient range down to −40°C supports deployment in temperature‑sensitive environments.
Why Choose IS43DR16160A-3DBI?
The IS43DR16160A-3DBI combines DDR2 double‑data‑rate operation, programmable timing options, on‑die termination, and a compact 84‑TWBGA package to deliver a predictable 256Mbit parallel DRAM solution. Its 1.8V I/O compatibility and support for multiple CAS/additive latency settings make it a practical choice for engineers needing configurable DDR2 memory behavior in compact hardware.
This part is well suited to designs that require a balance of density, timing flexibility, and industrial ambient operation, enabling straightforward integration where 16M × 16 organization and compact BGA mounting are required.
Request a quote or submit a pricing and availability inquiry to receive lead‑time and ordering information for the IS43DR16160A-3DBI.
