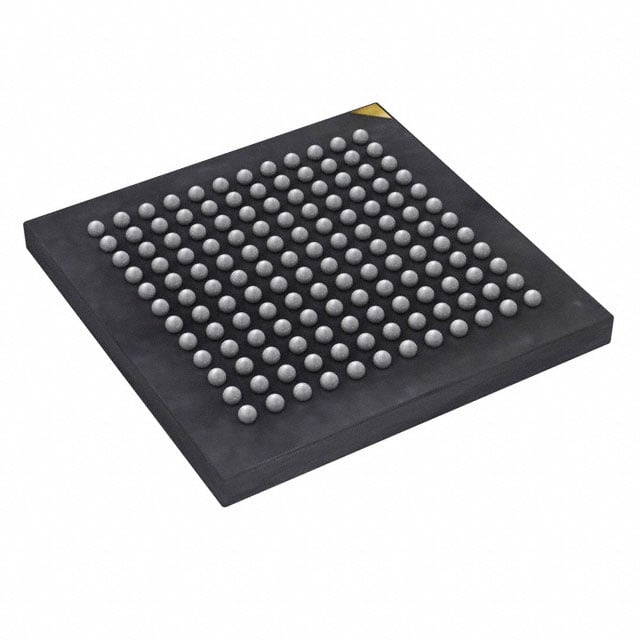

IS43R32800D-5BL

The IS43R32800D-5BL is a 256‑Mbit DDR SDRAM organized as 8M × 32, delivering double‑data‑rate transfers through a pipelined architecture with two data accesses per clock cycle. The device implements four internal banks, programmable burst length and CAS latency, and SSTL_2 compatible I/O for synchronous high‑speed memory interfaces.

Designed for applications requiring parallel DDR memory in a compact 144‑LFBGA (12×12) package, the device supports up to 200 MHz clock frequency, VDD/VDDQ operation from 2.3 V to 2.7 V, and a commercial operating temperature range of 0°C to 70°C.

Key Features

• Core & Architecture  8M × 32 organization (256 Mbit) with four internal banks and pipelined operation to support continuous read/write burst accesses.
• DDR Performance  Double‑data‑rate architecture provides two data transfers per clock cycle; maximum clock frequency up to 200 MHz (speed grade -5).
• Data Timing & Capture  Bidirectional data strobe (DQS) transmitted/received with data; DQS edge‑aligned for READs and centre‑aligned for WRITEs; DLL aligns DQ/DQS with clock transitions.
• Interface & Commands  Differential clock inputs (CK and CK̄); commands registered on positive CK edges; data and data mask referenced to both edges of DQS.
• Burst & Latency Options  Burst lengths of 2, 4 and 8 with sequential and interleave burst types; programmable CAS latency options 2, 2.5 and 3.
• Refresh & Power Modes  Auto Refresh and Self Refresh modes supported; Auto Precharge and TRAS lockout (tRAP = tRCD) implemented for memory integrity.
• Electrical  Supply voltage range VDD/VDDQ: 2.3 V to 2.7 V (datasheet nominal 2.5 V ±0.2 V); SSTL_2 compatible I/O signaling.
• Package & Temperature  144‑LFBGA (12×12) package; commercial temperature range 0°C to +70°C (TA).

Typical Applications

• Embedded memory subsystems  Provides a 256‑Mbit DDR SDRAM option for systems requiring parallel DDR memory in a compact BGA package.
• High‑speed data buffering  Suitable where double‑data‑rate transfers, burst access and programmable CAS latency are required for bursty data flows.
• Compact module integration  144‑LFBGA (12×12) footprint supports designs constrained by board space that require parallel DDR memory.

Unique Advantages

• High density in a small package: 256‑Mbit capacity in a 144‑LFBGA (12×12) helps maximize memory per footprint area.
• Double‑data‑rate throughput: Two data transfers per clock cycle increase effective bandwidth without raising clock rate, enabled up to 200 MHz.
• Flexible timing control: Programmable CAS latency (2, 2.5, 3) and selectable burst lengths support tuning for system timing and performance tradeoffs.
• Robust data capture: DQS with edge/center alignment and DLL synchronization improves reliable data capture at both read and write operations.
• SSTL_2 compatible I/O: Standard signaling for common DDR memory interfaces simplifies integration into SSTL_2 systems.
• Power and refresh modes: Auto Refresh and Self Refresh modes provide standard DRAM maintenance options for preserving data integrity.

Why Choose IS43R32800D-5BL?

The IS43R32800D-5BL delivers a compact, programmable 256‑Mbit DDR SDRAM solution with core features—four internal banks, DLL timing, DQS strobe handling and SSTL_2 I/O—that meet the needs of systems requiring parallel DDR memory in a small BGA footprint. Its support for up to 200 MHz operation, selectable burst behavior and CAS latency settings enables designers to balance bandwidth and timing for their specific application.
