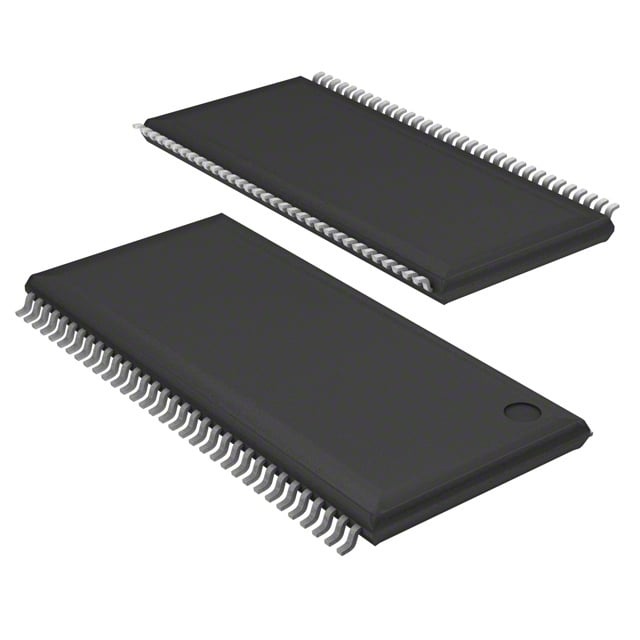

IS46R86400D-6TLA1-TR

IC DRAM 512MBIT PAR 66TSOP II
Part Description

IC DRAM 512MBIT PAR 66TSOP II

Quantity 258 Available (as of May 5, 2026)
Product CategoryMemory
ManufacturerIntegrated Silicon Solution Inc
Manufacturing StatusObsolete
Manufacturer Standard Lead TimeRFQ
Datasheet

Specifications & Environmental

Device Package66-TSOP IIMemory FormatDRAMTechnologySDRAM - DDR
Memory Size512 MbitAccess Time700 psGradeIndustrial
Clock Frequency166 MHzVoltage2.3V ~ 2.7VMemory TypeVolatile
Operating Temperature-40°C ~ 85°C (TA)Write Cycle Time Word Page15 nsPackaging66-TSSOP (0.400", 10.16mm Width)
Mounting MethodVolatileMemory InterfaceParallelMemory Organization64M x 8
Moisture Sensitivity Level3 (168 Hours)RoHS ComplianceROHS CompliantREACH ComplianceREACH Unaffected
QualificationN/AECCNEAR99HTS Code8542.32.0028

Overview of IS46R86400D-6TLA1-TR – IC DRAM 512MBIT PAR 66TSOP II

The IS46R86400D-6TLA1-TR is a 512‑Mbit DDR SDRAM organized as 64M × 8, implementing a double‑data‑rate pipeline architecture for high‑speed parallel memory access. The device provides burst read/write capability with programmable CAS latency and internal bank-based concurrency to support systems that require sustained, high‑throughput memory operations.

Designed for applications demanding parallel DDR SDRAM functionality, the device combines SSTL_2 compatible I/O, a DLL, and differential clock inputs to support reliable timing and data capture across a wide operating temperature range.

Key Features

  • Core Architecture Double‑data‑rate (DDR) pipeline architecture delivering two data transfers per clock cycle; DLL aligns DQ and DQS transitions with clock.
  • Memory Organization & Capacity 512 Mbit total capacity, internally organized as 64M × 8 with four internal banks for concurrent operations.
  • Data I/O and Timing Bidirectional data strobe (DQS) transmitted/received with data; DQS is edge‑aligned for reads and centre‑aligned for writes. Commands are registered on each positive clock edge.
  • Burst and Latency Options Burst length selectable 2, 4 or 8 with sequential and interleave burst types; programmable CAS latency options: 2, 2.5 and 3.
  • Clock & Timing Performance Differential clock inputs (CK/ /CK) and specified maximum clock frequency of 166 MHz (typical -6 grade 167 MHz), with access time down to 700 ps and a 15 ns write cycle time (word page).
  • Power VDD and VDDQ support operation within the 2.3 V to 2.7 V range (device speed grade -6 specified as 2.5 V ±0.2 V in datasheet).
  • SSTL_2 Compatible I/O All I/Os are SSTL_2 compatible to match standard DDR signalling requirements.
  • Refresh and Power Modes Auto Refresh and Self Refresh supported; Auto Precharge and Data Mask (DM) available to control write operations.
  • Package and Mounting Available in a 66‑pin TSOP‑II (66‑TSSOP, 0.400" / 10.16 mm width) package for board‑level mounting.
  • Operating Temperature Industrial operating range of -40°C to +85°C (TA).

Typical Applications

  • High‑throughput memory buffers — Provides burstable DDR storage for systems that need sustained parallel data transfer and low‑latency access.
  • Embedded systems with parallel DDR interface — Fits designs requiring a 512 Mbit DDR SDRAM device with SSTL_2 I/O and differential clocking.
  • Data acquisition and buffering — Supports applications that benefit from four internal banks and programmable burst/latency settings to manage continuous read/write streams.

Unique Advantages

  • Parallel DDR performance: Double‑data‑rate pipeline design enables two transfers per clock cycle for higher effective bandwidth.
  • Flexible timing control: Programmable CAS latency (2 / 2.5 / 3) and selectable burst lengths offer tuning for system timing and throughput.
  • Robust data capture: DQS timing (edge‑aligned reads, center‑aligned writes) with DLL and differential clock inputs improves data timing integrity.
  • Industry temperature support: Specified operation from -40°C to +85°C for deployment in industrial temperature environments.
  • Compact board footprint: 66‑TSSOP (TSOP‑II) package provides a small form factor for space‑constrained PCB designs.
  • SSTL_2 I/O compatibility: Ensures compatibility with SSTL_2 signaling domains used in DDR systems.

Why Choose IC DRAM 512MBIT PAR 66TSOP II?

The IS46R86400D-6TLA1-TR delivers a focused DDR SDRAM solution where 512 Mbit capacity, burstable DDR transfers and flexible timing are required. Its combination of SSTL_2 I/O, DLL timing alignment, differential clocking and selectable latency/burst modes makes it suitable for designs that need predictable, high‑speed parallel memory behavior.

This device is appropriate for engineers specifying a compact, industrial‑temperature DDR memory device in a 66‑pin TSOP‑II package, offering configurable timing and refresh options to match a range of system memory architectures.

Request a quote or submit an RFQ to receive pricing and availability information for IS46R86400D-6TLA1-TR.
