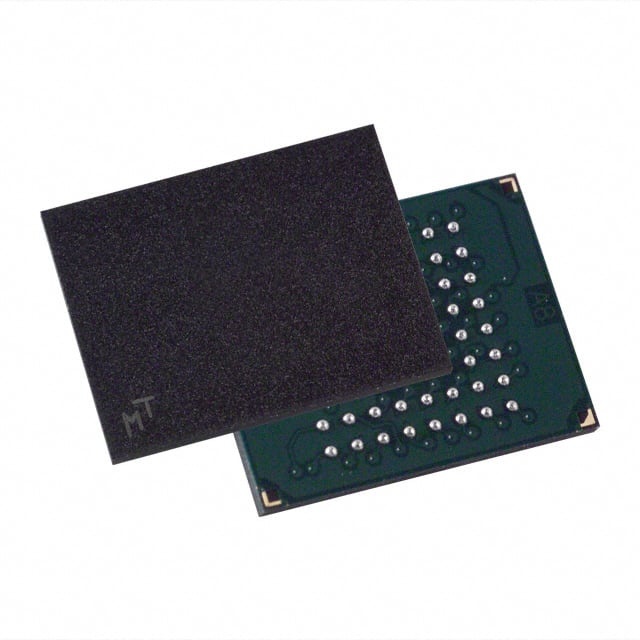

MT28F640J3BS-115 ET
| Part Description |
IC FLASH 64MBIT PARALLEL 64FBGA |
|---|---|
| Quantity | 370 Available (as of May 5, 2026) |
| Product Category | Memory |
|---|---|
| Manufacturer | Micron Technology Inc. |
| Manufacturing Status | Obsolete |
| Manufacturer Standard Lead Time | RFQ |
| Datasheet |
Specifications & Environmental
| Device Package | 64-FBGA (10x13) | Memory Format | FLASH | Technology | FLASH | ||
|---|---|---|---|---|---|---|---|
| Memory Size | 64 Mbit | Access Time | 115 ns | Grade | Industrial | ||
| Clock Frequency | N/A | Voltage | 2.7V ~ 3.6V | Memory Type | Non-Volatile | ||
| Operating Temperature | -40°C ~ 85°C (TA) | Write Cycle Time Word Page | N/A | Packaging | 64-FBGA | ||
| Mounting Method | Non-Volatile | Memory Interface | Parallel | Memory Organization | 8M x 8, 4M x 16 | ||
| Moisture Sensitivity Level | 2 (1 Year) | RoHS Compliance | ROHS3 Compliant | REACH Compliance | REACH Unaffected | ||
| Qualification | N/A | ECCN | 3A991B1A | HTS Code | 8542.32.0071 |
Overview of MT28F640J3BS-115 ET – IC FLASH 64Mbit Parallel, 64-FBGA
The MT28F640J3BS-115 ET is a 64 Mbit non-volatile FLASH memory device in a 64-ball FBGA package. It implements parallel NOR FLASH architecture with memory organizations of 8M × 8 or 4M × 16 and provides asynchronous page mode reads with a 115 ns access time.
This device targets systems that require persistent code or data storage with moderate read performance and industry-standard command/identification support. It offers a wide supply voltage range and an extended industrial temperature rating for use in temperature-sensitive environments.
Key Features
- Memory Capacity and Organization 64 Mbit total capacity supporting 8M × 8 and 4M × 16 organizations to match parallel data bus widths.
- Read Performance Asynchronous page mode read access time of 115 ns (64Mb timing option) with 25 ns page-mode cycle timing referenced in the datasheet.
- Non-Volatile FLASH Technology Q‑FLASH® technology with automatic write and erase algorithms and a 5.6 μs-per-byte effective programming time when using the write buffer.
- Voltage Range Operates from 2.7 V to 3.6 V for VCC and application programming, providing compatibility with common 3 V system rails.
- Package 64-ball FBGA package (64-FBGA, 10 × 13) suitable for high-density board layouts.
- Extended Temperature Range Rated for −40 °C to +85 °C (ET) for operation across extended industrial temperatures.
- Data Protection and Security Features include a 128-bit protection register, 64-bit unique device identifier, 64-bit user-programmable OTP cells, flexible sector locking, and enhanced protection options (VPEN = VSS).
- Endurance and Reliability Specified for 100,000 erase cycles per block and supports automatic suspend options (block erase/program suspend-to-read and program suspend-to-read) to enable read access during background operations.
- Industry Compatibility Industry-standard pinout, TTL-compatible inputs/outputs, Common Flash Interface (CFI) and Scalable Command Set for system-level interoperability.
Typical Applications
- Embedded Firmware Storage Non-volatile 64 Mbit FLASH for storing boot code and firmware images where parallel FLASH access and 115 ns read performance are suitable.
- Microcontroller/System Data Storage Persistent data or lookup-table storage in systems operating at 2.7–3.6 V supply rails using a parallel interface.
- Industrial and Extended-Temperature Electronics Use in applications requiring operation from −40 °C to +85 °C and up to 100,000 erase cycles per block.
- Device Identification and Secure Configuration On-device 64-bit unique ID and 64-bit OTP cells for device tracking or one-time programmable configuration data.
Unique Advantages
- Flexible Bus Widths: Available 8× and 16× memory organizations allow designers to match the device to target system bus widths.
- Proven Flash Command Support: Support for Common Flash Interface (CFI) and a Scalable Command Set simplifies device identification and command interoperability.
- Enhanced Data Protection: Protection register, sector locking, and VPEN-based protection features provide multiple layers of data and program/erase security.
- Suspend/Resume Capability: Block erase and program suspend features enable read access during background operations, improving system responsiveness.
- Industrial Temperature Rating: Extended −40 °C to +85 °C rating supports deployment in temperature-sensitive environments.
- High Endurance: 100,000 erase cycles per block supports long field life for frequently updated code or data storage.
Why Choose MT28F640J3BS-115 ET?
The MT28F640J3BS-115 ET positions itself as a solid non-volatile storage option within Micron’s Q-FLASH® family, combining 64 Mbit capacity, parallel interface flexibility, and extended-temperature operation. Its feature set—CFI/Scalable Command support, protection registers, unique ID/OTP, suspend capabilities, and established endurance—addresses designs that need reliable on-board code and data retention with predictable erase/program behavior.
This device is well suited for engineers and procurement teams specifying parallel NOR FLASH where compatibility with 2.7–3.6 V systems, industrial temperature range, and robust protection features are required. The availability of related densities and package options in the family supports design scalability and product line consistency.
Request a quote or submit a product inquiry to receive pricing, availability, and support information for the MT28F640J3BS-115 ET.
