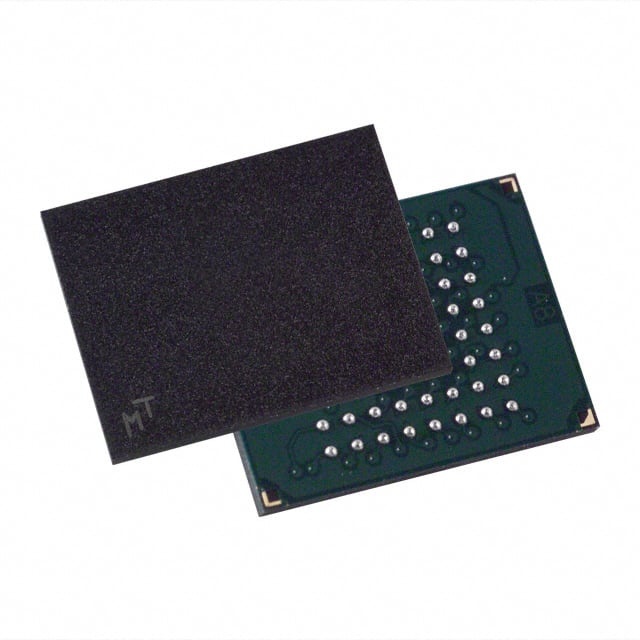

MT28F640J3FS-115 ET TR

IC FLASH 64MBIT PARALLEL 64FBGA
Part Description

IC FLASH 64MBIT PARALLEL 64FBGA

Quantity 311 Available (as of May 5, 2026)
Product CategoryMemory
ManufacturerMicron Technology Inc.
Manufacturing StatusObsolete
Manufacturer Standard Lead TimeRFQ
Datasheet

Specifications & Environmental

Device Package64-FBGA (10x13)Memory FormatFLASHTechnologyFLASH
Memory Size64 MbitAccess Time115 nsGradeIndustrial
Clock FrequencyN/AVoltage2.7V ~ 3.6VMemory TypeNon-Volatile
Operating Temperature-40°C ~ 85°C (TA)Write Cycle Time Word PageN/APackaging64-FBGA
Mounting MethodNon-VolatileMemory InterfaceParallelMemory Organization8M x 8, 4M x 16
Moisture Sensitivity Level3 (168 Hours)RoHS ComplianceRoHS non-compliantREACH ComplianceREACH Unaffected
QualificationN/AECCN3A991B1AHTS Code8542.32.0071

Overview of MT28F640J3FS-115 ET TR – IC FLASH 64MBIT PARALLEL 64FBGA

The MT28F640J3FS-115 ET TR is a 64 Mbit Q-FLASH non-volatile FLASH memory device with a parallel interface, supplied in a 64-ball FBGA (10×13) package. It supports x8 and x16 memory organizations and provides block-level erase/program control and status features for embedded code and data storage.

Designed for systems requiring asynchronous page-mode reads and block management, the device operates from 2.7 V to 3.6 V, delivers a 115 ns read access time, and is rated for operation from –40°C to +85°C (TA).

Key Features

  • Memory Architecture 64 Mbit Q-FLASH organized as 8M × 8 or 4M × 16 with sixty-four 128 KB erase blocks.
  • Interface & Command Set Parallel memory interface with industry-standard pinout, supports Common Flash Interface (CFI) and a scalable command set; inputs and outputs are TTL-compatible.
  • Performance / Timing Asynchronous page-mode reads with a 115 ns read access time (device timing option –115).
  • Program & Erase Automatic write and erase algorithm, write buffer delivering an effective 5.6 μs-per-byte programming time, and support for program/erase suspend operations (block erase suspend-to-read, block erase suspend-to-program, program suspend-to-read).
  • Data Protection & Identification 128-bit protection register, 64-bit unique device identifier, 64-bit user-programmable OTP cells, enhanced data protection with VPEN = VSS, and flexible sector locking including lockout during power transition.
  • Endurance & Reliability Up to 100,000 erase cycles per block (specified in datasheet).
  • Power & Temperature VCC and programming operation from 2.7 V to 3.6 V; operating temperature range –40°C to +85°C (TA).
  • Package 64-ball FBGA (10×13) package, 1.00 mm pitch option noted in datasheet packaging options.

Typical Applications

  • Firmware and boot code storage Non-volatile, block-erasable storage for system firmware and boot code in designs using parallel flash.
  • Embedded code and data storage Parallel FLASH organized for x8 or x16 bus widths in embedded systems requiring block erase and program operations.
  • Device identification and secure fields On-device 64-bit unique identifier and 64-bit user-programmable OTP cells for system identification or limited secure storage.
  • Suspend-capable memory operations Systems that benefit from block erase or program suspend-to-read/program features to maintain read access during long operations.

Unique Advantages

  • Flexible bus-width support Native x8 and x16 organization allows straightforward integration with 8-bit or 16-bit parallel data buses.
  • Fast parallel read access 115 ns asynchronous page-mode read access time supports responsive code and data fetch in parallel-memory designs.
  • Block-level endurance and management Sixty-four 128 KB erase blocks with up to 100,000 erase cycles per block and automatic erase/program algorithms simplify lifecycle planning.
  • Integrated protection and ID 128-bit protection register plus unique device ID and OTP cells provide on-chip options for protection, identification, and one-time programming.
  • Robust power and temperature window 2.7 V–3.6 V operation and –40°C to +85°C rating accommodate a broad range of supply and ambient conditions.
  • Compact FBGA footprint 64-ball FBGA (10×13) package enables dense board layout while retaining a parallel interface.

Why Choose MT28F640J3FS-115 ET TR?

The MT28F640J3FS-115 ET TR combines a parallel Q-FLASH architecture with block-level control, data protection features, and a compact 64-ball FBGA package. Its 8-bit/16-bit organization, CFI support, and suspend-capable program/erase operations make it suitable for systems that require reliable non-volatile code and data storage with predictable timing and endurance characteristics.

This device is ideal for designers who need a parallel FLASH solution with on-chip protection/ID options, flexible voltage operation (2.7 V–3.6 V), and an extended temperature range (–40°C to +85°C). The combination of documented endurance, programming performance, and block architecture supports long-term integration and field maintainability.

Request a quote or submit an inquiry to check availability and lead time for the MT28F640J3FS-115 ET TR.
