MT40A2G16TBB-062E:F TR

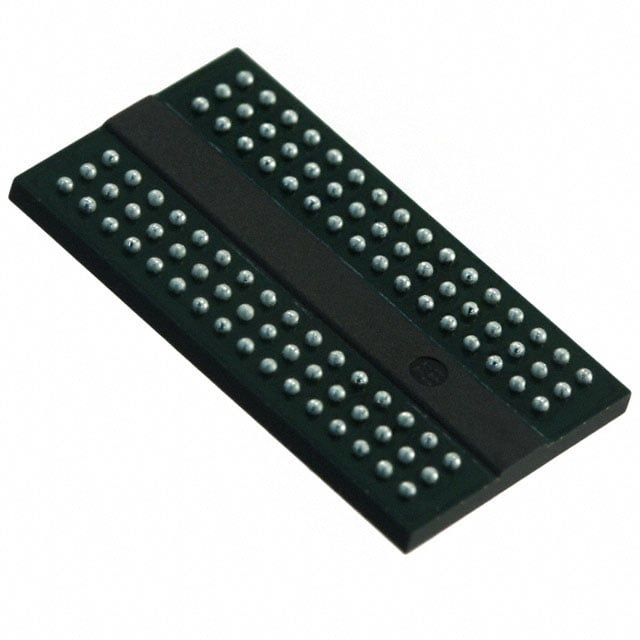

The MT40A2G16TBB-062E:F TR is a 32Gbit TwinDie DDR4 SDRAM organized as 2G × 16 with a parallel memory interface in a 96-ball FBGA package. It combines two 16Gb x8 die into a single x16 device (TwinDie single-rank) and implements DDR4 signaling and timing for high-speed memory systems.

Built for systems requiring DDR4-3200 performance, the device operates at VDD = VDDQ = 1.2V (1.14–1.26V) and supports an operating temperature range of 0°C to 95°C, with JEDEC-standard ball-out and a low-profile 7.5mm × 13mm package option.

Key Features

• Architecture (TwinDie Single-Rank)  Two 16Gb x8 Micron die combined to form one x16 device; single-rank TwinDie configuration for native x16 operation.
• Density & Organization  32 Gbit total capacity, organized as 2G × 16 with 128M × 16 × 16 banks × 1 rank (configuration documented in the datasheet).
• Performance (DDR4-3200)  Speed grade -062E targeted for 3200 MT/s operation with timing of CL22-nRCD-nRP (13.75 ns cycle time).
• Clock & Timing  1.6 GHz clock frequency (DDR4 data rate 3200 MT/s) and key timing parameters set to 13.75 ns for cycle time, RCD, and RP.
• Voltage & I/O  VDD = VDDQ = 1.2V operation (range 1.14–1.26V) with 1.2V VDDQ-terminated I/O as specified by DDR4 standards.
• Package  96-ball FBGA, low-profile option (7.5 mm × 13 mm × 1.2 mm per datasheet revision :F), JEDEC-standard ball-out and Pb-free package notation.
• Temperature & Refresh  Operating temperature 0°C to 95°C. Refresh requirements: 0°C–85°C: 8192 refresh cycles/64 ms; 85°C–95°C: 8192 refresh cycles/32 ms.
• Interface & Addressing  Parallel DDR4 interface with bank-group addressing (BG[1:0]), BA[1:0] bank addresses, 17-bit row addressing, 10-bit column addressing and 1KB page size per bank.
• Calibration & Controls  Includes an extra ZQ connection for faster ZQ calibration and requires BG1 control for x8 addressing modes as documented in the datasheet.

Unique Advantages

• High-density x16 in compact package: 32 Gbit capacity in a 96-ball FBGA (7.5 × 13 mm) provides substantial memory density in a low-profile footprint.
• Verified DDR4-3200 timing: Speed grade -062E targets 3200 MT/s with CL22 and 13.75 ns cycle time for predictable high-speed operation.
• Standard 1.2V DDR4 operation: VDD/VDDQ = 1.2V (1.14–1.26V) and VDDQ-terminated I/O for compatibility with DDR4 power domains.
• JEDEC-standard ball-out: Standardized FBGA ball mapping supports established PCB layouts and assembly flows.
• Temperature and refresh options documented: Operating range to 95°C with explicit refresh-cycle requirements for both 0°C–85°C and 85°C–95°C intervals.
• TwinDie integration: Two x8 die combined to deliver x16 functionality while maintaining documented calibration and control signals (ZQ, BG1).
