MT48LC16M16A2TG-6A:D TR

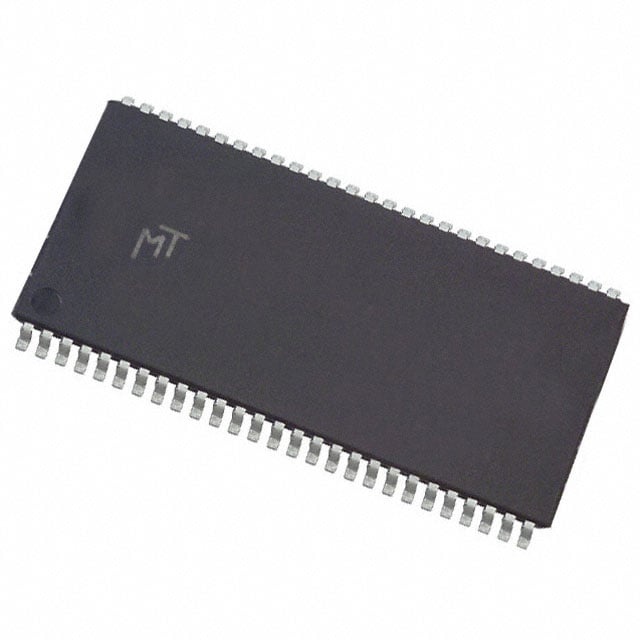

The MT48LC16M16A2TG-6A:D TR is a 256 Mbit synchronous DRAM (SDRAM) organized as 16M × 16 with a parallel memory interface in a 54-pin TSOP II (0.400", 10.16 mm width) package. It implements SDR SDRAM architecture with internal banks and pipelined operation for synchronous system clock operation.

Designed for commercial temperature operation (0°C to 70°C) and a single 3.0 V to 3.6 V supply, this device targets systems requiring a compact 256 Mbit SDRAM solution with 167 MHz clock capability and standard SDRAM features such as programmable burst lengths, auto refresh and self-refresh modes.

Key Features

• Core / Technology  SDR SDRAM architecture with fully synchronous operation; all signals registered on the positive edge of the system clock.
• Memory Organization  256 Mbit total capacity, organized as 16M × 16 with four internal banks (4 Meg × 16 × 4 banks).
• Performance & Timing  –6A speed grade supports a 167 MHz clock; datasheet timing target 3-3-3 (RCD-RP-CL) for this grade. Access time listed at 5.4 ns and write cycle time (word/page) at 12 ns.
• Burst, Refresh & Control  Programmable burst lengths (1, 2, 4, 8, or full page), auto precharge, auto refresh and self refresh modes to support a range of memory access patterns and power-management requirements.
• Voltage & I/O  Single-supply operation in the 3.0 V to 3.6 V range (3.3 V ±0.3 V class) with LVTTL-compatible inputs and outputs as documented in the datasheet.
• Package & Mounting  54-pin TSOP II plastic package (0.400", 10.16 mm width) for surface-mount PCB designs; supplier device package listed as 54-TSOP II.
• Operating Range  Commercial temperature grade: 0°C to +70°C (TA) as specified for this part.

Typical Applications

• Embedded system memory  Use as onboard SDRAM in embedded platforms that require a 256 Mbit parallel SDRAM device with synchronous operation.
• Legacy PC and computing subsystems  Applicable where PC100/PC133-compliant SDRAM timing and behavior are required; supports standard SDRAM control and burst modes.
• Industrial commercial electronics  Commercial-temperature electronic designs needing a compact TSOP II packaged SDRAM with standard refresh and self-refresh capability.

Unique Advantages

• Industry-standard SDR SDRAM feature set: Programmable burst lengths, auto precharge, auto refresh and self-refresh modes provide flexible control for diverse memory access patterns.
• High clock-rate support for its grade: The –6A speed grade targets 167 MHz operation with 3-3-3 timing (RCD-RP-CL), enabling synchronous designs that require those timing parameters.
• Compact TSOP II package: 54-pin TSOP II (0.400", 10.16 mm) package offers a small PCB footprint for space-constrained board layouts.
• Standard 3.3 V-class supply compatibility: Operates from 3.0 V to 3.6 V, matching common 3.3 V system rails and simplifying power supply design.
• Clear commercial temperature rating: Rated for 0°C to +70°C, providing defined operating limits for commercial designs.

Why Choose IC DRAM 256MBIT PAR 54TSOP II?

The MT48LC16M16A2TG-6A:D TR provides a straightforward 256 Mbit SDRAM building block with a parallel interface, standard SDRAM control features and a compact 54-pin TSOP II footprint. Its –6A timing grade, support for 167 MHz clocking, and 3.0 V–3.6 V supply make it suitable for commercial electronic designs that require synchronous DRAM with programmable burst and refresh capabilities.

This device is well suited for engineers and procurement teams specifying fixed-density SDRAM in space-constrained PCBs where a commercial-temperature, 3.3 V-class SDRAM solution with established SDRAM features and timing is required.
