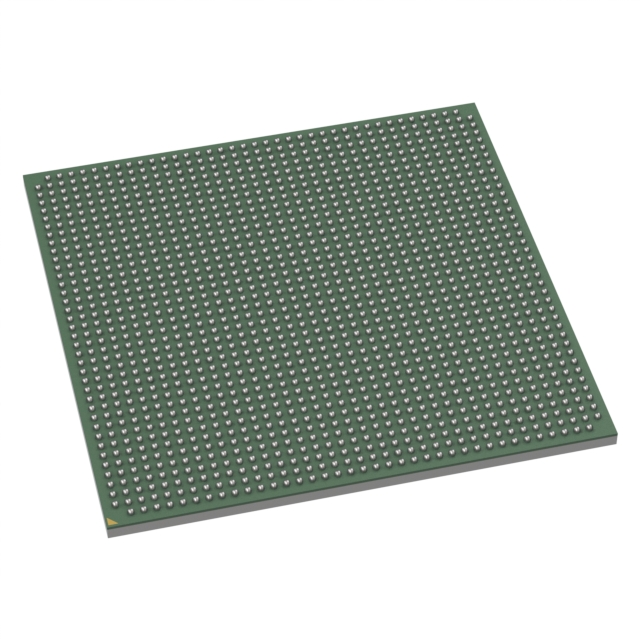

LX2080SN72232B

IC MPU QORLQ 2.2GHZ 1517FCPBGA
Part Description

ARM® Cortex®-A72 Microprocessor IC QorlQ LX2 8 Core, 64-Bit 2.2GHz 1517-FCPBGA (40x40)

Quantity 934 Available (as of October 8, 2026)
Product CategoryMicroprocessors
Part SeriesLX2080S
ManufacturerNXP USA Inc.
Manufacturing StatusActive
Manufacturer Standard Lead Time18 Weeks
Datasheet

Specifications & Environmental

Core ProcessorARM® Cortex®-A72Device Package1517-FCPBGA (40x40)ECCNN/A
Ethernet100Gbps (2)Graphics AccelerationYesHTS CodeN/A
Moisture Sensitivity LevelN/AMounting MethodSurface MountMounting TypeSurface Mount
Number of Cores/Bus Width8 Core, 64-BitOperating Temperature0°C ~ 105°C (TJ)Package / Case1517-BBGA, FCBGA
RAM ControllersDDR4REACH ComplianceREACH UnaffectedRoHS ComplianceROHS3 Compliant
SATASATA 3.0 (4)Security FeaturesSecure Boot, TrustZone®Speed2.2GHz
Supplier Device Package1517-FCPBGA (40×40)USBUSB 3.0 (2) + PHY (2)Voltage – I/O1.2V, 1.8V, 3.3V

Overview of LX2080SN72232B – ARM Cortex‑A72 8‑Core 2.2 GHz Microprocessor

The LX2080SN72232B is an NXP Semiconductors Layerscape LX2080S series microprocessor featuring an ARM® Cortex®‑A72 core architecture. It provides eight 64‑bit cores running at up to 2.2 GHz and is configured for embedded and compute‑intensive networking applications.

With integrated DDR4 memory controllers, multi‑100 Gbps class Ethernet capability, rich I/O including SATA, USB and CAN, and hardware security support, this device targets embedded systems that require high processing throughput, advanced connectivity and platform security.

Key Features

  • Core & Architecture  ARM® Cortex®‑A72 cores, 8 cores at up to 2.2 GHz, 64‑bit processing for high single‑ and multi‑threaded performance.
  • Memory  DDR4 RAM controllers for modern high‑speed memory interfaces.
  • High‑Speed Networking & I/O  Dual 100 Gbps Ethernet ports, 4 × SATA 3.0 ports, 2 × USB 3.0 plus 2 × USB PHY, and CANbus for flexible connectivity options.
  • Security  Secure Boot and Arm TrustZone® support to enable platform integrity and trusted execution.
  • Graphics & Acceleration  Graphics acceleration supported to offload display or media tasks from the CPU.
  • Package & Mounting  1517‑FCPBGA (1517‑BBGA) surface mount package (40 × 40 mm) suitable for compact board designs.
  • Operating Range & Qualification  Consumer qualification with an operating temperature range of 0 °C to 105 °C; RoHS compliant.

Typical Applications

  • Network Routing and Switching  High‑throughput control and packet processing using dual 100 Gbps Ethernet and robust I/O connectivity.
  • Data Center Offload  Compute and I/O integration suited for offload tasks and control‑plane functions in dense server or appliance designs.
  • 5G Packet Processing and Telecom  Enables packet processing workloads and network functions that require sustained multi‑core performance and high‑speed interfaces.
  • Industrial Networking  Embedded gateways and industrial control platforms benefiting from DDR4 memory support, CANbus, and wide I/O integration.

Unique Advantages

  • High multi‑core throughput: Eight Cortex‑A72 cores at up to 2.2 GHz deliver strong compute capability for concurrent networking and application tasks.
  • Rich, integrated I/O: Dual 100 Gbps Ethernet, SATA3, USB3 and CANbus reduce external controllers and simplify system design.
  • Security‑ready platform: Secure Boot and Arm TrustZone® support help implement trusted boot and isolated execution environments.
  • Compact, production‑ready package: 1517‑FCPBGA (40×40) surface mount package facilitates board density and streamlined manufacturing.
  • Software ecosystem compatibility: Layerscape processors are supported by established software stacks, enabling faster bring‑up and development.

Why Choose LX2080SN72232B?

The LX2080SN72232B positions itself as a high‑performance, highly integrated embedded processor for designs that demand multi‑core compute, broad connectivity and platform security. Its balance of CPU performance, DDR4 memory support and extensive I/O makes it well suited to networking, telecom and industrial embedded systems.

Designed by NXP and built on the Layerscape family foundations, this device offers a platform that supports established development toolchains and software stacks, helping teams accelerate time to market while retaining scalability for future system needs.

Request a quote or submit your requirements to receive pricing and lead‑time information for LX2080SN72232B.
