MC68EC020AA16

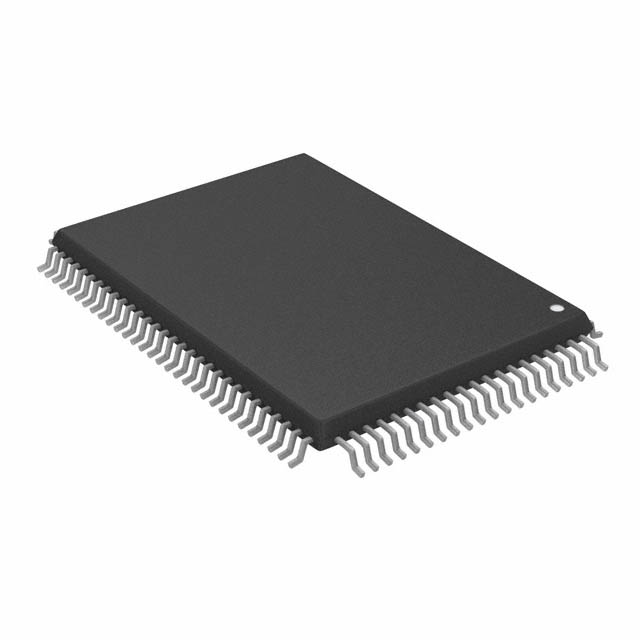

The MC68EC020AA16 is a 32-bit, second‑generation enhanced microprocessor in the MC68EC020 series, implemented as a single 68020 core running at 16 MHz. Designed for embedded applications, this surface‑mount device provides deterministic 32‑bit processing in a compact 100‑pin QFP (14×20 mm) package.

Targeted to consumer‑qualified embedded systems, the MC68EC020AA16 combines the MC68020 architecture with embedded‑focused integration and standard 5 V I/O to simplify system design and deployment in board‑level applications operating within 0 °C to 70 °C.

Key Features

• Core and Architecture — 68020 core, 32‑bit single‑core processor providing second‑generation enhanced M68020 functionality for embedded designs.
• Clock Speed — Fixed 16 MHz operating frequency for predictable timing and deterministic performance.
• Power and I/O — Standard 5 V I/O voltage compatible with legacy and contemporary 5 V embedded systems.
• On‑Chip Integration — Includes on‑chip cache memory and a coprocessor interface as described in the MC68020/MC68EC020 user manual, aiding performance and extensibility.
• Package and Mounting — 100‑pin BQFP (100‑QFP, 14×20 mm) surface‑mount package for compact board footprint and automated assembly.
• Operating Range — Rated for 0 °C to 70 °C operation, suited to consumer‑grade embedded environments.
• Compliance — RoHS compliant to meet contemporary environmental standards.
• Qualification — Consumer‑qualified device suitable for consumer embedded product applications.

Typical Applications

• Embedded Controllers — 32‑bit processing for control logic and system management in consumer embedded products.
• Legacy System Upgrades — Drop‑in replacements or platform maintainence where M68020 architecture compatibility is required.
• Evaluation and Development — Development platforms and prototypes leveraging the MC68EC020’s on‑chip cache and coprocessor interface for architectural exploration.

Unique Advantages

• Second‑generation M68020 Architecture: Provides the enhanced 32‑bit processing capabilities of the MC68020/MC68EC020 family for established embedded designs.
• Embedded Variant: The MC68EC020AA16 is the embedded form of the MC68020 family, offering features and packaging tailored for board‑level integration.
• Compact Surface‑Mount Package: 100‑pin QFP (14×20 mm) enables dense PCB layouts and automated assembly processes.
• Standard 5 V I/O: Simplifies interfacing with existing 5 V system components and legacy peripherals.
• On‑Chip Cache and Coprocessor Interface: Integrated cache memory and a coprocessor interface support improved data throughput and expandable functionality as documented in the device user manual.
• RoHS Compliant: Meets environmental compliance requirements for modern consumer electronics production.

Why Choose MC68EC020AA16?

The MC68EC020AA16 delivers deterministic 32‑bit processing based on the MC68020 enhanced architecture in a surface‑mount 100‑QFP package, making it well suited to consumer embedded designs that require a compact footprint and established processor architecture. Its combination of on‑chip cache, coprocessor interface, and 5 V I/O supports system designs that need performance, interfacing simplicity, and compatibility with legacy signal levels.

This device is appropriate for engineers and teams maintaining or developing consumer embedded systems that depend on the MC68020 architecture, offering clear integration points and adherence to environmental compliance for production deployments.

Request a quote or submit an RFQ to obtain pricing and availability for the MC68EC020AA16.
