MC68EC020AA25

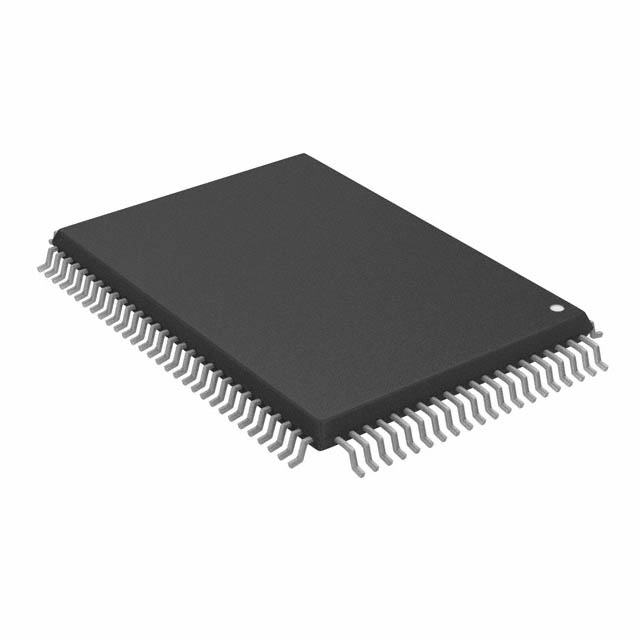

The MC68EC020AA25 from NXP Semiconductors is a 32‑bit, second‑generation enhanced MC68020 family microprocessor implemented as an embedded device. This single‑core MPU operates at 25 MHz with 5 V I/O and is provided in a 100‑lead QFP (14×20 mm) surface‑mount package.

Designed for embedded applications, the MC68EC020 series includes on‑chip architectural features described in the product documentation such as cache memory and a coprocessor interface, together with bus and exception handling functionality suitable for system integration. The device is RoHS compliant and rated for operation from 0 °C to 70 °C.

Key Features

• Core & Architecture 68020 core, 32‑bit single processor implementation operating at 25 MHz, part of the MC68EC020 embedded microprocessor family.
• On‑chip Functionality Embedded MC68EC020 documentation references on‑chip cache memory and a coprocessor interface to extend processing capabilities and improve instruction throughput.
• Bus and System Control Family documentation details bus operation and exception processing features for deterministic system behavior and integration with external devices.
• Supply & I/O 5 V I/O specification for compatibility with standard logic levels.
• Package & Mounting Supplied in a 100‑lead BQFP (100‑QFP) 14×20 mm surface‑mount package for board‑level integration.
• Operating Range & Qualification Consumer qualification with operating temperature specified from 0 °C to 70 °C.
• Environmental Compliance RoHS compliant.

Typical Applications

• Embedded systems — Integration as a 32‑bit MPU in embedded product designs that require a single 68020 core.
• Board‑level processor solutions — Surface‑mount 100‑QFP package supports compact PCB layouts and automated assembly.
• System designs requiring documented architecture — MC68EC020 series documentation covers instruction execution timing, bus operation, and interfacing details for engineering integration.

Unique Advantages

• 32‑bit 68020 processing: Provides a full 32‑bit core architecture for software and system designs that target the M680x0 instruction set family.
• On‑chip cache and coprocessor interface: Architectural features in the MC68EC020 family allow improved instruction handling and optional co‑processing support as described in the product documentation.
• Standard 5 V I/O: Simplifies interfacing with legacy and common digital logic levels.
• Surface‑mount 100‑QFP (14×20 mm): Enables dense board layouts and compatibility with common SMT assembly processes.
• RoHS compliant: Meets environmental compliance requirements for lead‑free manufacturing processes.
• Documented integration guidance: User manual material for the MC68020/MC68EC020 family provides details on signal descriptions, bus operation, exception processing, and interfacing that support system design and verification.

Why Choose MC68EC020AA25?

The MC68EC020AA25 delivers a documented, 32‑bit embedded microprocessor solution from the MC68EC020 family with a 25 MHz operating speed, standard 5 V I/O, and a compact 100‑lead QFP package—making it suitable for embedded designs where the M68020 architecture and family documentation are required. Its RoHS compliance and consumer‑grade qualification simplify procurement for commercial embedded products.

Engineers selecting the MC68EC020AA25 benefit from published user manual content covering architecture, cache behavior, bus protocols, and interfacing, helping reduce integration risk during development and system bring‑up.

Request a quote or submit an inquiry to receive pricing and availability information for the MC68EC020AA25.
