MC68HC000RC10

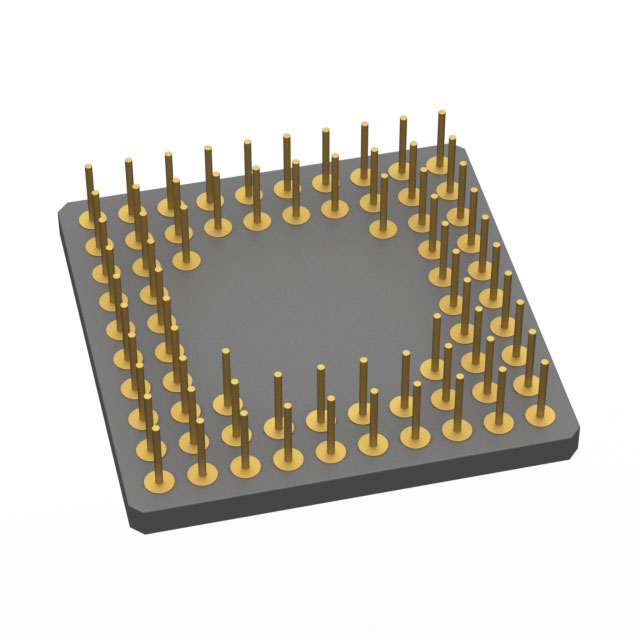

The MC68HC000RC10 is a single-core, 32-bit EC000 microprocessor in the MC68HC000 series designed for embedded consumer applications. It operates at 10 MHz with 5 V I/O and is supplied in a 68‑pin PGA package (26.92 × 26.92 mm) for through‑hole mounting.

As a member of the MC68HC000 family, documentation for the series includes the programmer’s model and data organization used by this device, making it suitable for designers working with established M680x0 architecture material.

Key Features

• Core and Architecture Single EC000 core, 32‑bit internal bus width for general-purpose embedded processing.
• Clock Speed 10 MHz operating frequency suitable for low- to moderate‑speed embedded control tasks.
• Supply and I/O 5 V I/O compatibility for systems designed around classic 5 V logic levels.
• Package and Mounting 68‑PGA (26.92 × 26.92 mm) package in a through‑hole mounting format for robust board retention and ease of replacement.
• Operating Range Consumer-grade operating temperature of 0 °C to 70 °C aligned with standard commercial applications.
• Compliance RoHS compliant, supporting environmental regulations for lead‑free assembly.

Typical Applications

• Consumer Embedded Systems Core processing for consumer-grade devices where a single 32‑bit CPU at 10 MHz and 5 V I/O are appropriate.
• Embedded Control and Interfaces Control and interface tasks in embedded boards that leverage through‑hole PGA packaging for serviceability.
• Development and Evaluation Use in development platforms or legacy-system maintenance where MC68HC000 series documentation and architecture are applicable.

Unique Advantages

• Established MC68HC000 Series Part of the MC68HC000 family with series documentation covering programmer’s model and data organization, helping engineers align software and system design.
• 32‑Bit Single Core A full 32‑bit core provides straightforward address and data handling for embedded code designs.
• Through‑Hole 68‑PGA Package Robust mechanical retention and simpler replacement or prototyping compared with surface‑mount equivalents.
• 5 V I/O Compatibility Direct interface to 5 V logic systems without additional level‑shifting for I/O signals.
• RoHS Compliant Meets lead‑free assembly requirements for environmentally conscious designs.

Why Choose MC68HC000RC10?

The MC68HC000RC10 delivers a straightforward, single‑core 32‑bit processing option at 10 MHz with 5 V I/O and a through‑hole 68‑PGA package, positioned for consumer and embedded applications that rely on established MC68HC000 series architecture. Its consumer-grade temperature range and RoHS compliance make it suitable for commercial products and development platforms that require proven documentation and serviceable packaging.

Backed by NXP Semiconductors as the manufacturer and supported by series documentation covering programmer’s model and register organization, the MC68HC000RC10 is a practical choice for designers targeting legacy‑aligned or serviceable embedded designs where a 32‑bit EC000 core and through‑hole PGA package are desired.

Request a quote or submit your requirements to receive pricing and availability for the MC68HC000RC10.
