MC68HC000RC16

The MC68HC000RC16 is a single‑core 32‑bit microprocessor based on the EC000 core, operating at 16 MHz. It targets embedded and consumer applications requiring a classic M680x0 architecture in a through‑hole 68‑PGA package.

This part delivers a 32‑bit core with 5 V I/O, RoHS compliance, and an operating temperature range of 0 °C to 70 °C, making it suitable for consumer and embedded designs that rely on proven M680x0 series behavior and documentation.

Key Features

• Core — EC000 single 32‑bit core designed for M680x0 series compatibility.
• Clock Speed — 16 MHz operating frequency for timing-deterministic embedded tasks.
• Voltage — 5 V I/O supply voltage compatible with legacy TTL/CMOS interfacing environments.

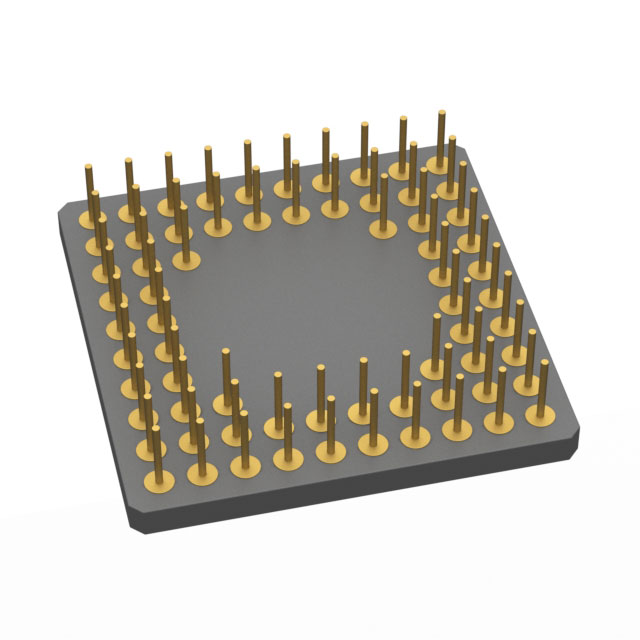

• Package & Mounting — 68‑PGA (26.92 × 26.92 mm) package, 68‑BCPGA case, through‑hole mounting for board-level robustness and ease of replacement.
• Operating Range — Rated for operation from 0 °C to 70 °C to meet consumer temperature requirements.
• Environmental Compliance — RoHS compliant.
• Graphics — No integrated graphics acceleration; ideal for control‑centric or compute tasks where discrete graphics are not required.
• Documentation — Part of the M68000 family with accompanying user manual and reference material for architecture and programming model details.

Typical Applications

• Embedded Control — MCU‑class control for embedded systems that leverage a 32‑bit EC000 core and require through‑hole packaging for repairability.
• Consumer Electronics — Control and processing tasks in consumer devices where the part’s consumer qualification and 0 °C to 70 °C rating meet product requirements.
• Legacy System Maintenance — Replacement and maintenance of existing M680x0‑based designs that depend on the architecture and documented programming model.

Unique Advantages

• Architectural continuity: Part of the M68000 family and based on the EC000 core, enabling reuse of existing design knowledge and software assets.
• Through‑hole 68‑PGA package: 68‑pin PGA (26.92 × 26.92 mm) simplifies board replacement and mechanical retention for repairable assemblies.
• Simple power interface: 5 V I/O reduces the need for additional level‑translation in legacy systems.
• RoHS compliant: Meets environmental regulatory expectations for modern consumer products.
• Clear operating specification: Defined 0 °C to 70 °C temperature range and explicit speed/voltage ratings for straightforward system integration.

Why Choose MC68HC000RC16?

The MC68HC000RC16 provides a straightforward, documented 32‑bit EC000 core implementation at 16 MHz in a 68‑PGA through‑hole package. Its specified 5 V I/O, consumer qualification, and RoHS compliance make it a practical choice for embedded and consumer designs that require the M680x0 architecture and reliable, serviceable packaging.

This part is well suited to engineers supporting legacy M680x0 platforms or integrating the EC000 core into new embedded systems where through‑hole mounting and clear operating specs simplify validation and maintenance.

Request a quote or submit a purchase inquiry to obtain pricing and availability for the MC68HC000RC16. Provide part number and required quantity to receive a timely response.
