MC68HC000RC8

The MC68HC000RC8 is a single-core EC000 microprocessor from the MC68HC000 series, featuring a 32-bit core running at 8 MHz. It is supplied in a 68‑PGA (26.92 × 26.92 mm) through‑hole package and is qualified for consumer applications.

This device is targeted at embedded system designs that require a 32‑bit general-purpose processor with 5 V I/O and a consumer temperature range of 0 °C to 70 °C. The device is RoHS compliant.

Key Features

• Core and Architecture  EC000 core, single 32‑bit processing core suitable for general-purpose embedded computing.
• Clock Speed  8 MHz operating frequency for deterministic, low‑speed control and processing tasks.
• Supply and I/O Voltage  5 V I/O voltage compatible with legacy 5 V systems and peripherals.

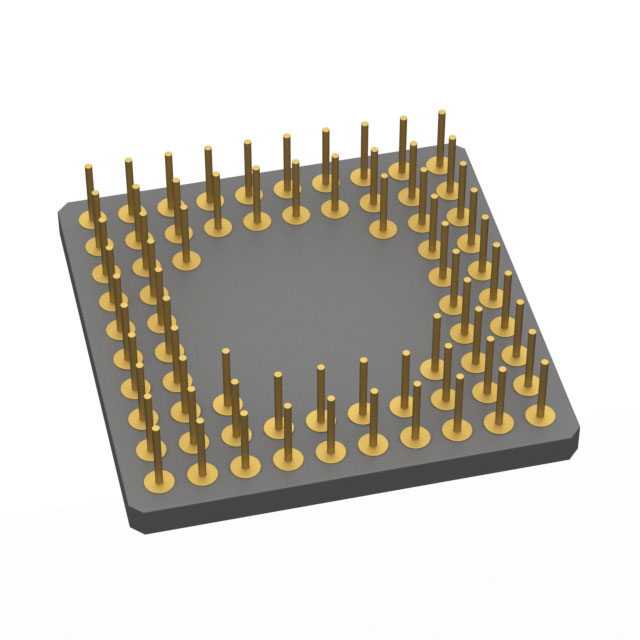

• Package and Mounting  68‑PGA (26.92 × 26.92 mm) package in a 68‑BCPGA case, designed for through‑hole mounting to support robust mechanical connections.
• Qualification and Environmental  Consumer qualification with an operating temperature range of 0 °C to 70 °C and RoHS compliance.
• Graphics  No dedicated graphics acceleration; focused on general-purpose processing as specified.

Typical Applications

• Consumer Electronics  Control and management functions in consumer devices that operate within a 0 °C to 70 °C range.
• Embedded Control  General-purpose processing for embedded systems requiring a 32‑bit core and 5 V I/O compatibility.
• Legacy Platform Support  Replacement or maintenance of existing systems using the M680x0 family form factor and electrical characteristics.
• Development and Education  Suitable for development boards and educational projects that work with through‑hole 68‑PGA packages and 5 V logic.

Unique Advantages

• 32‑Bit EC000 Core: Provides a full 32‑bit core for general-purpose embedded computation within the MC68HC000 series architecture.
• Through‑Hole 68‑PGA Packaging: 68‑PGA (26.92 × 26.92 mm) allows secure mechanical mounting and ease of prototyping or replacement in board-level assemblies.
• 5 V I/O Compatibility: Matches legacy 5 V logic environments, simplifying integration with existing peripherals and system designs.
• Consumer Temperature Range: Rated 0 °C to 70 °C for use in consumer-grade products.
• RoHS Compliant: Meets RoHS requirements for regulatory and environmental considerations.
• Series Heritage: Part of the MC68HC000 family, consistent with design considerations documented in the series user materials.

Why Choose MC68HC000RC8?

The MC68HC000RC8 delivers a straightforward, 32‑bit single‑core solution tailored for consumer embedded designs that require 5 V I/O and through‑hole 68‑PGA packaging. With an 8 MHz clock and EC000 core, it supports general-purpose processing tasks while fitting legacy form-factor and voltage requirements.

This part is suited to engineers maintaining or developing consumer‑grade embedded systems who need a RoHS‑compliant processor with an established MC68HC000 series architecture and defined operating conditions.

Request a quote or submit an RFQ to begin procurement for the MC68HC000RC8 and include your required quantities and delivery timeframe to initiate the process.
