MC68LC040RC25A

The MC68LC040RC25A is a member of the MC68LC040 series 68040 microprocessors, featuring a single 32‑bit 68040 core running at 25 MHz. Designed for embedded applications, it provides deterministic 32‑bit integer processing with a serial communications interface (SCI) and 5 V I/O compatibility.

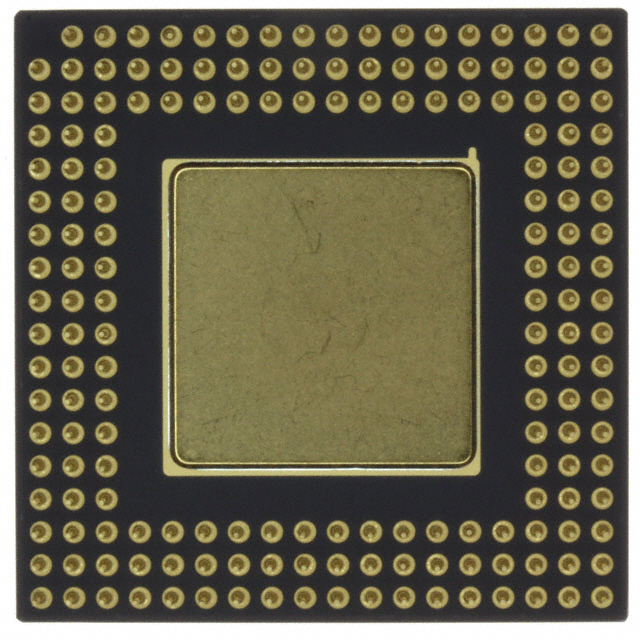

Packaged in a 179‑pin PGA (179‑PGA, 47.24 × 47.24) through‑hole package and rated for commercial temperature operation, this device is suited for embedded control, instrumentation, and legacy system maintenance where a socketed, serviceable processor is required.

Key Features

• Core Single 68040 32‑bit core running at 25 MHz, providing standardized M680x0 architecture processing for embedded control and signal handling.
• Voltage and I/O 5 V I/O voltage ensures compatibility with legacy 5 V logic domains and existing board designs.
• Package and Mounting 179‑PGA supplier device package (179‑BEPGA) with dimensions listed as 47.24 × 47.24 and through‑hole mounting for easy socketing, replacement, and prototyping.
• Interfaces Integrated SCI (Serial Communications Interface) for asynchronous serial communication and peripheral connectivity.
• Graphics and FPU No graphics acceleration is provided. Documentation for the MC68LC040 indicates floating‑point information does not apply to this variant.
• Operating Range Commercial temperature range rated from 0 °C to 70 °C.
• Environmental RoHS compliant.

Typical Applications

• Industrial Control Deterministic 32‑bit processing at 25 MHz and 5 V I/O make this device suitable for control and sequencing tasks in embedded controllers.
• Embedded Instrumentation Use in measurement, data‑acquisition, and instrument control systems where serial communications (SCI) and integer processing are required.
• Prototyping & Field Service Through‑hole 179‑PGA package supports socketed prototypes and field‑replaceable upgrades in legacy equipment.
• Legacy System Maintenance Suitable for sustaining or refurbishing existing systems built around the M680x0 architecture.

Unique Advantages

• 32‑Bit M68040 Architecture: Delivers a consistent M680x0 instruction set and 32‑bit integer performance for embedded software compatibility.
• Through‑Hole 179‑PGA Packaging: Large PGA footprint and through‑hole mounting simplify socketed implementations and board-level servicing.
• 5 V I/O Compatibility: Integrates into legacy 5 V systems without additional level‑shifting components.
• Integrated SCI: On‑chip serial communications interface reduces external component count for UART/serial links.
• Commercial Temperature Rating: Rated 0 °C to 70 °C for mainstream embedded applications.
• RoHS Compliant: Meets environmental compliance requirements for lead‑free designs.

Why Choose MC68LC040RC25A?

The MC68LC040RC25A positions itself as a practical, socketable 32‑bit microprocessor for embedded designers maintaining or developing systems around the M680x0 architecture. With a single 68040 core at 25 MHz, 5 V I/O compatibility, and a through‑hole 179‑PGA package, it supports direct replacement, prototyping, and refurbishment workflows where board‑level serviceability matters.

As a documented member of the M68040 family, this MC68LC040 variant is aligned with established M68040 user documentation, enabling predictable integration into designs that require integer processing and serial communications without floating‑point support.

Request a quote or submit an inquiry to our sales team to discuss pricing, lead times, and availability for the MC68LC040RC25A.
