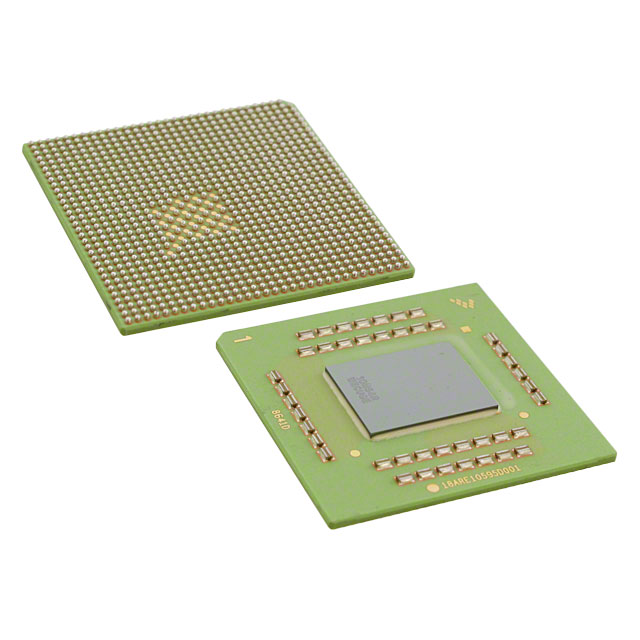

MC8641VU1333JE

The MC8641VU1333JE is a PowerPC e600-based microprocessor featuring a single 32-bit core clocked at 1.333 GHz. It targets embedded applications that require integrated system logic for networking, storage, wireless infrastructure and general-purpose embedded use.

Designed with on-chip memory controllers and multiple high-speed interfaces, the device delivers a compact, integrated platform for networked and storage-oriented embedded systems.

Key Features

• Core Single PowerPC e600 32-bit core running at 1.333 GHz, providing the primary processing engine for embedded workloads.
• Memory Integrated support for DDR and DDR2 SDRAM controllers to handle system memory requirements.
• Ethernet I/O Four 10/100/1000 Mbps Ethernet interfaces for multi-port networking connectivity.
• High-speed Serial and Bus Interfaces On-chip support and documented hardware for PCI Express, Serial RapidIO (SRIO), High-Speed Serial Interfaces (HSSI) and a Local Bus controller as indicated in the processor hardware specifications.
• System Peripherals Integrated peripherals referenced in the hardware documentation include DUART, I2C, JTAG and management interfaces suitable for embedded control and debug.
• Package & Mounting 994-FCCBGA (33×33) supplier device package, supplied in tray and designed for surface-mount assembly.

Typical Applications

• Network Appliances Use the MC8641VU1333JE in routers, switches or gateways that benefit from multiple Gigabit Ethernet ports and integrated system logic.
• Storage Systems Apply the integrated DDR/DDR2 controllers and high-speed interfaces in storage controllers and NAS devices.
• Wireless Infrastructure Deploy in wireless infrastructure equipment that requires a compact processing core with extensive I/O and high-speed serial links.
• General-Purpose Embedded Systems Suitable for embedded designs that need a single high-frequency PowerPC e600 core combined with on-chip peripherals for control and management.

Unique Advantages

• Highly integrated architecture: Combines a 1.333 GHz e600 core with on-chip memory controllers and multiport Ethernet to reduce external component count.
• Multiple high-speed interfaces: Documented support for PCI Express, Serial RapidIO and HSSI provides flexible connectivity options for demanding embedded designs.
• Optimized for networking and storage: Four Gigabit Ethernet ports and DDR/DDR2 support align the device to network and storage use cases without reliance on additional controllers.
• Compact BGA packaging: 994-FCCBGA (33×33) enables high-density board designs and surface-mount assembly in space-constrained systems.
• Embedded peripheral set: On-chip DUART, I2C and JTAG support simplifies system control, management and debug during development and deployment.

Why Choose MC8641VU1333JE?

The MC8641VU1333JE positions itself as a performance-oriented, integrated microprocessor platform for embedded networking, storage and wireless infrastructure applications. With a 1.333 GHz PowerPC e600 core, multiple Gigabit Ethernet ports and onboard DDR/DDR2 memory controllers, it simplifies system design by consolidating key functions on-chip.

This part is suited to engineers and procurement teams building compact, I/O-rich embedded systems that benefit from a documented hardware specification set and NXP Semiconductors manufacturer support.

Request a quote or submit your procurement inquiry for the MC8641VU1333JE to get pricing and availability tailored to your project requirements.
