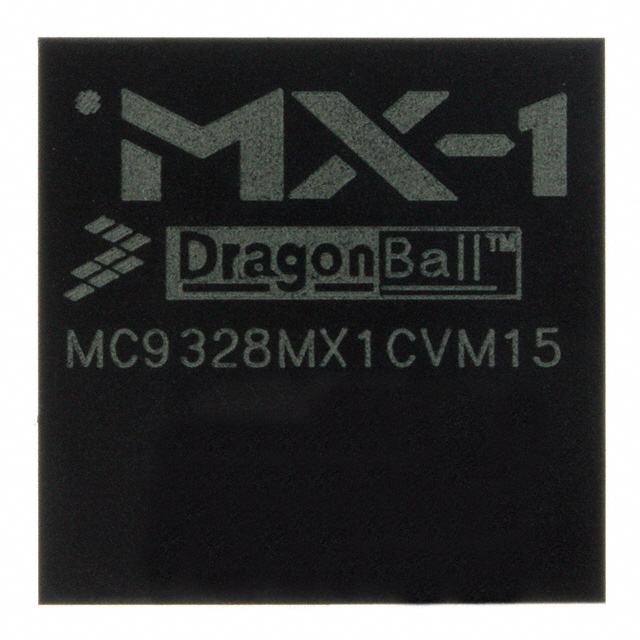

MC9328MX1CVM15

The MC9328MX1CVM15 is an ARM920T-based i.MX1 microprocessor core designed for embedded and portable applications. It delivers a single 32-bit ARM920T core running at 150 MHz with a highly integrated set of peripherals and system functions aimed at compact, multimedia-capable designs.

Targeted at industrial and portable markets, the device combines processing, memory interface, display and I/O subsystems in a 256-contact MAPBGA surface-mount package to simplify system design and reduce bill-of-materials.

Key Features

• Processor Core  ARM920T single 32-bit core operating at 150 MHz, suitable for control and application tasks in embedded systems.
• Memory and Bus  Integrated SDRAM controller and on-chip eSRAM support for efficient system memory access and simplified external memory interfacing.
• Display and Multimedia  Integrated LCD controller and touch-panel support enable compact user interfaces for portable and handheld products.
• USB and Storage Interfaces  On-chip USB device controller and MMC/SD host controller plus Memory Stick host support for peripheral and removable storage connectivity.
• Serial and Peripheral Interfaces  Multi-channel serial connectivity including I2C, multiple SPI ports, UARTs, and synchronous serial (SSI/I2S) interfaces for audio and sensor connectivity.
• System Control and Timing  DPLL clock and power control module, real-time clock, watchdog timer, PWM, and multiple timers for deterministic system control and power management.
• DMA and I/O  Integrated DMA controller and general-purpose I/O (GPIO) ports for efficient data movement and flexible board-level control.
• Package and Qualification  256-contact MAPBGA surface-mount package with industrial qualification and an operating temperature range of −40 °C to 85 °C for robust field deployment.
• Compliance  RoHS-compliant manufacturing status for regulated manufacturing environments.

Typical Applications

• Portable multimedia devices  Integrated LCD controller, audio interfaces, and removable-storage host controllers make the device suitable for handheld multimedia players and portable interfaces.
• Industrial HMI and control  Industrial temperature qualification, LCD/touch support, and robust serial connectivity enable human-machine interfaces and compact control panels.
• Embedded communication modules  USB device, multiple UARTs, SPI, and I2C support allow implementation of communication endpoints and protocol bridges in embedded products.
• Data acquisition and sensor gateways  SDRAM controller, DMA, and diverse serial interfaces provide the I/O and buffering needed for sensor aggregation and local processing.

Unique Advantages

• Highly integrated peripherals: A broad set of on-chip controllers (USB device, MMC/SD, LCD controller, serial buses) reduces external component count and simplifies system design.
• Industrial-ready thermal range: −40 °C to 85 °C qualification supports deployment in demanding environments without additional thermal qualification effort.
• Flexible memory subsystem: Built-in SDRAM controller and on-chip eSRAM support enable efficient memory architectures for responsive applications.
• Comprehensive connectivity: I2C, SPI, UARTs, SSI/I2S and GPIO provide adaptable interfaces for sensors, peripherals and user I/O.
• Compact, high-density package: 256-contact MAPBGA surface-mount package balances pin count with board-area efficiency for space-constrained designs.
• Vendor backing: Manufactured by NXP Semiconductors, providing access to product documentation and integration resources.

Why Choose MC9328MX1CVM15?

The MC9328MX1CVM15 positions itself as a compact, industrially qualified embedded processor that combines an ARM920T 150 MHz core with a wide set of integrated peripherals and memory interfaces. Its integration reduces external components and streamlines PCB design for portable multimedia, HMI, and embedded communication applications.

Designed for engineers seeking a balance of processing capability, peripheral integration, and industrial temperature operation, this device offers a practical foundation for long-life embedded products backed by NXP Semiconductors documentation and support resources.

Request a quote or submit an inquiry for pricing and availability to begin integrating the MC9328MX1CVM15 into your next embedded design.
