MCIMX27LVOP4AR2

The MCIMX27LVOP4AR2 is a single‑core, 32‑bit microprocessor based on the ARM926EJ‑S core running at up to 400 MHz. It is built for low‑power multimedia and embedded applications that require integrated interfaces, on‑chip acceleration and hardware security capabilities.

Designed with power‑saving techniques and 90 nm dual‑Vt process optimizations, the device targets consumer multimedia products and portable systems where performance, integration and energy efficiency are key considerations.

Key Features

• Processor Core  ARM926EJ‑S single core, 32‑bit architecture operating up to 400 MHz for embedded application processing.
• Memory and Cache  DDR memory controller(s) with on‑chip cache to boost system performance and memory throughput.
• Security and Cryptography  Integrated security features including cryptography, random number generator, RTIC, secure fusebox and secure memory; co‑processor listed as Security/SAHARAH2.
• Multimedia and Graphics  Graphics acceleration and display controllers supporting LCD and keypad interfaces for user interface designs.
• Connectivity  Integrated 10/100 Mbps Ethernet (1) and USB 2.0 with PHY support (USB 2.0 + PHY (3)) plus additional interfaces such as 1‑Wire.
• Low‑Power Design  Implements power‑saving techniques cited in documentation (DPTC, power gating, clock gating) and manufactured on a 90 nm dual‑Vt process to optimize performance versus leakage.

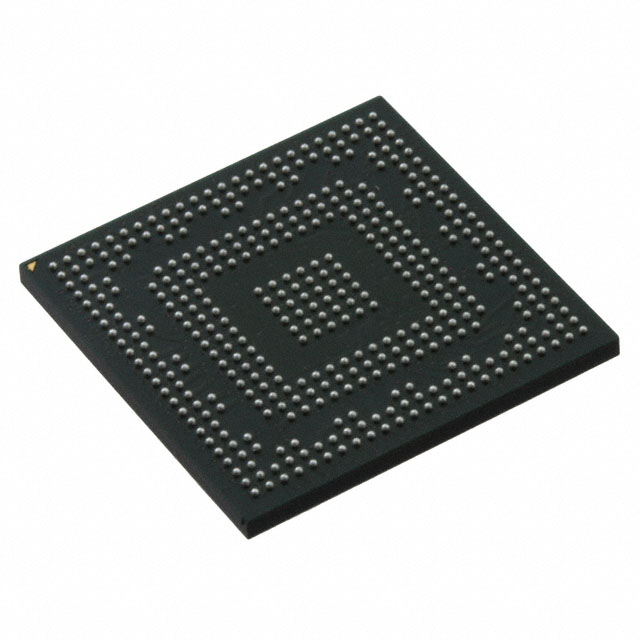

• Package and Mounting  404‑LFBGA package (17 mm × 17 mm), surface mount, suitable for compact board designs.
• Operating Range and Compliance  Operating temperature −20 °C to 85 °C; RoHS compliant and qualified for consumer applications.

Typical Applications

• Portable Media Players  Provides multimedia processing, graphics acceleration and interface support for playback and user interaction.
• Feature Phones and Handsets  Offers integrated connectivity (Ethernet, USB), security features and low‑power operation suitable for feature‑rich mobile devices.
• Handheld Gaming and PDAs  Combines a 400 MHz ARM926 core with graphics acceleration and display controllers for compact gaming and PDA platforms.
• Consumer Electronics  Targets portable DVD players, digital cameras and similar consumer devices requiring efficient multimedia processing and secure features.

Unique Advantages

• Balanced Performance and Power: ARM926EJ‑S core at up to 400 MHz with on‑chip cache and 90 nm dual‑Vt process yields practical processing capability while minimizing leakage.
• Integrated Multimedia Peripherals: Built‑in graphics acceleration, LCD and keypad controllers reduce external component count and simplify UI implementations.
• Comprehensive Security Suite: Hardware cryptography, RNG, RTIC and secure fusebox/secure memory support secure boot and content protection strategies.
• Broad Connectivity: Native 10/100 Ethernet, multiple USB 2.0 PHYs and 1‑Wire interface provide flexible options for wired connectivity and peripheral integration.
• Compact, Production‑Ready Package: 404‑LFBGA (17 mm × 17 mm) surface‑mount package enables dense board layouts for consumer and portable products.
• Regulatory and Market Fit: RoHS compliant and specified for consumer qualification, aligning with mainstream electronic product requirements.

Why Choose MCIMX27LVOP4AR2?

The MCIMX27LVOP4AR2 delivers a focused combination of embedded processing, multimedia capability and hardware security in a compact 404‑LFBGA package. With an ARM926EJ‑S core at up to 400 MHz, DDR memory support, on‑chip cache and dedicated security blocks, it suits designs where integration, energy efficiency and media handling are primary goals.

This part is ideal for engineers building consumer multimedia and portable products that require proven low‑power techniques, integrated interfaces (Ethernet, USB, display) and hardware security features, while maintaining a compact board footprint and RoHS compliance.

To request pricing, availability or to submit a quote, please request a quote or contact the sales channel for assistance with ordering and technical questions.
