MCIMX31CVKN5C

The MCIMX31CVKN5C is an NXP Semiconductors i.MX31-series multimedia applications processor built around a single ARM1136JF-S 32-bit core running at up to 532 MHz. It targets embedded multimedia and portable devices that require a combination of processing performance, media acceleration and system-level integration.

This device integrates multimedia co-processors (GPU, Image Processing Unit, MPEG‑4 encoder) and VFP support, on-chip DDR memory controllers, and a broad set of interfaces including USB 2.0. The architecture and documented power-management techniques are optimized for low-power, high-performance embedded applications.

Key Features

• Core ARM1136JF-S single 32‑bit core running up to 532 MHz, suitable for embedded multimedia processing tasks.
• Multimedia Co-processors On-chip multimedia acceleration including GPU, Image Processing Unit (IPU), MPEG‑4 encoder and Vector Floating Point (VFP) support for enhanced media and signal processing.
• Memory and Storage Interfaces Integrated DDR memory controller and support for common external memory types to handle program and media storage.
• Connectivity Multiple USB 2.0 ports (3) to support high-speed peripheral and host connectivity.
• Display and Input Display interface controllers with support for keyboard, keypad and LCD connectivity for compact user interfaces.
• Security On-chip security features including Random Number Generator, Secure Fusebox, Secure JTAG, Secure Memory and real-time integrity checks (RTIC).
• Power and Low-Power Techniques Architectural support for dynamic power-management techniques documented in the product series (e.g., DVFS, power gating, clock gating) to optimize performance versus power consumption.

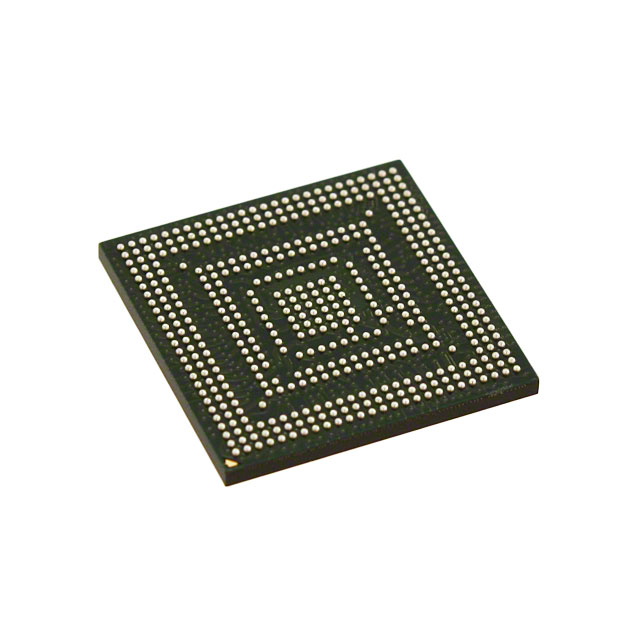

• Package and Mounting 457‑LFBGA surface-mount package (14 × 14 mm) for high‑density board designs.
• Qualification Industrial qualification level for deployments requiring extended environmental robustness.

Typical Applications

• Feature-rich Cellular Phones Provides multimedia acceleration and low-power operation for handheld phone platforms.
• Portable Media Players & Mobile Gaming On-chip MPEG‑4 encoder, GPU and IPU enable media playback, recording and graphics for portable entertainment devices.
• Personal Digital Assistants (PDAs) Integrated controller set and display interfaces support responsive user interfaces and data connectivity.
• Portable DVD Players & Digital Cameras Dedicated image processing and encoding capabilities simplify implementation of video capture and playback features.

Unique Advantages

• Highly integrated multimedia subsystem: Combines GPU, IPU, MPEG‑4 encoder and VFP to reduce external component count and simplify BOM for multimedia devices.
• Documented low-power strategies: Series-level support for DVFS, power gating and clock gating enables designers to balance performance and battery life.
• Industrial-grade qualification: Industrial qualification supports a wide range of embedded applications with increased environmental reliability.
• Comprehensive security features: Built-in RNG, secure fusebox, secure JTAG and secure memory provide foundational elements for device security implementations.
• Compact, manufacturable package: 457‑LFBGA (14×14 mm) surface-mount package offers a compact footprint for space-constrained designs.

Why Choose MCIMX31CVKN5C?

The MCIMX31CVKN5C positions itself as a balanced solution for embedded multimedia designs that require a single ARM1136JF-S core with dedicated media accelerators and comprehensive peripheral support. Its combination of on-chip multimedia engines, DDR memory interface and multi-port USB connectivity makes it suitable for portable consumer and industrial handheld devices.

Backed by series-level documentation and NXP Semiconductors’ product support materials, the MCIMX31CVKN5C is a practical choice for designers seeking an integrated, industrially qualified application processor with explicit on-chip security and power-management capabilities.

Request a quote or submit a pricing inquiry to receive availability and tailored purchasing information for the MCIMX31CVKN5C.
