MCIMX31CVKN5D

The MCIMX31CVKN5D is an NXP Semiconductors i.MX31 series multimedia applications microprocessor based on an ARM1136JF-S core running up to 532 MHz. It combines a single 32‑bit ARM11 core with integrated multimedia accelerators and co‑processors to address embedded designs requiring compact, industrial‑qualified processing with advanced media capabilities.

Engineered for portable and embedded multimedia applications, the device emphasizes integration and power‑aware operation with on‑chip accelerators and support for a range of external memories and high‑speed I/O.

Key Features

• Core – ARM1136JF‑S single 32‑bit core operating up to 532 MHz, delivering deterministic application processing for embedded multimedia workloads.
• Multimedia and Graphics – Integrated multimedia co‑processors including a GPU, Image Processing Unit (IPU), MPEG‑4 hardware encoder (VGA, 30 fps) and a Vector Floating Point (VFP11) co‑processor to accelerate video, imaging and math‑intensive tasks.
• Memory and Storage – On‑chip DDR memory controller with external memory support for DDR, NAND Flash, NOR Flash, SDRAM and SRAM to accommodate varied storage and system memory configurations.
• Connectivity and I/O – High‑speed USB 2.0 support, ATA/MMC/SDIO/compact flash connectivity options (as described in the series datasheet), plus display interface controllers for keyboard, keypad and LCD. Additional interface: 1‑Wire.
• Security and System Protection – Built‑in security features including a Random Number Generator, RTIC, Secure Fusebox, Secure JTAG and Secure Memory for device integrity and secure boot/key storage workflows.
• Power and Performance Optimization – Series‑level low‑power techniques listed in the datasheet (DPTC, DVFS, power gating, clock gating) and 90 nm process technology with dual‑Vt transistors for balanced performance versus leakage.

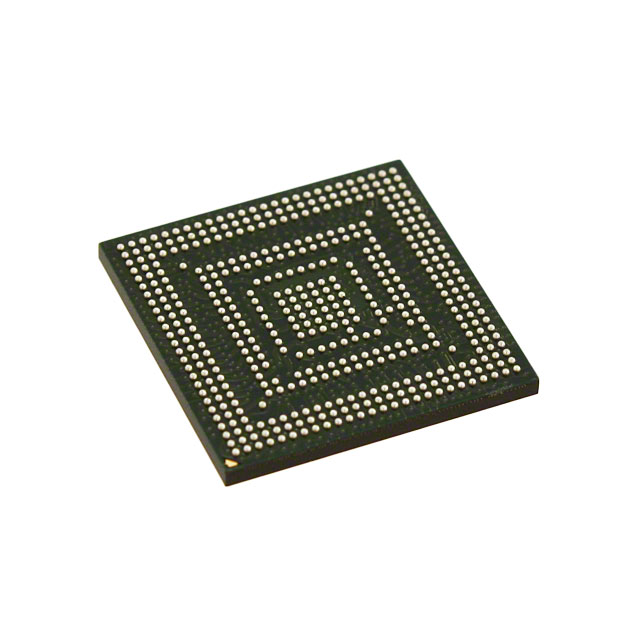

• Package and Mounting – 457‑LFBGA package (14 × 14 mm, 0.5 mm pitch) in a surface‑mount form factor suitable for compact system designs.
• Operating Conditions and Qualification – Industrial qualification with an operating temperature range of −40 °C to 85 °C and RoHS compliance.

Typical Applications

• Smartphones and Mobile Devices – Multimedia accelerators, USB connectivity and imaging support enable feature‑rich handheld designs.
• Portable Media Players – Hardware MPEG‑4 encoding, GPU and IPU accelerate audio/video playback and user interface rendering.
• Embedded Multimedia Systems – Compact package and DDR memory support make the device suitable for industrial HMIs, kiosks and multimedia appliances.
• Imaging and Vision Modules – Autonomous Image Processing Unit and VFP co‑processor support on‑device image processing and math‑intensive algorithms.

Unique Advantages

• Highly integrated multimedia engine: Combines GPU, IPU, MPEG‑4 encoder and VFP co‑processor to reduce external accelerator requirements and simplify BOM.
• Low‑power series design: Series‑documented power saving features (DPTC, DVFS, power/clock gating) and 90 nm process optimizations to manage power consumption in portable applications.
• Broad memory interfacing: DDR controller plus support for NAND/NOR/SDRAM/SRAM enables flexible storage and memory architectures.
• Industrial temperature range: −40 °C to 85 °C qualification supports deployment in temperature‑challenging embedded environments.
• On‑chip security primitives: RNG, Secure Fusebox, Secure JTAG and Secure Memory provide foundations for secure device provisioning and runtime protection.
• Compact, manufacturable package: 457‑LFBGA (14 × 14 mm, 0.5 mm pitch) surface‑mount package supports high‑density board designs.

Why Choose MCIMX31CVKN5D?

The MCIMX31CVKN5D positions itself as a balanced solution for embedded designs needing multimedia acceleration, secure operation and industrial temperature capability. With an ARM1136JF‑S core at up to 532 MHz and integrated co‑processors for video, imaging and floating‑point functions, it reduces the need for discrete accelerators while supporting diverse external memory and I/O options.

Manufactured by NXP Semiconductors and backed by series documentation, the device is suited for product teams building compact, power‑aware multimedia systems in industrial and portable markets that require long‑term availability and robust system features.

Request a quote or submit a purchasing inquiry to evaluate MCIMX31CVKN5D for your next embedded multimedia design.
