MCIMX31CVKN5DR2

The MCIMX31CVKN5DR2 from NXP Semiconductors is a single‑core ARM11-based microprocessor featuring an ARM1136JF-S core running at up to 532 MHz. It is part of the i.MX31 series and is designed for multimedia-focused embedded applications in high‑tier and mid‑tier smartphones and portable media players.

This device combines a 32‑bit ARM core with dedicated multimedia co‑processors, DDR memory controllers and multiple high‑speed peripheral interfaces, delivering a balance of performance, integration and industrial temperature operation for embedded multimedia designs.

Key Features

• Processor Core: ARM1136JF‑S single 32‑bit core running up to 532 MHz for general application processing.
• Multimedia & Acceleration: Integrated multimedia co‑processors including GPU, Autonomous Image Processing Unit (IPU), MPEG‑4 hardware encoder (VGA, 30 fps) and Vector Floating Point (VFP) co‑processor for accelerated video and image processing.
• Memory & Storage Interfaces: DDR memory controller plus documented support for external memory types such as DDR, NAND Flash, NOR Flash, SDRAM and SRAM.
• Connectivity: USB 2.0 connectivity (listed as USB 2.0 (3) in product data) and support for high‑speed peripheral interfaces such as ATA, MMC/SDIO and compact flash as noted in the technical data.
• Security Features: On‑chip security elements including Random Number Generator, RTIC, Secure Fusebox, Secure JTAG and Secure Memory to support secure system designs.
• Power Management & Process Technology: Low‑power design techniques referenced in the datasheet including DPTC, DVFS, power gating and clock gating; fabricated in 90 nm technology with dual‑Vt transistors for optimized performance versus leakage.
• System DMA & Co‑processing: RISC‑based SDMA controller and additional co‑processors to offload data movement and multimedia tasks from the main CPU.

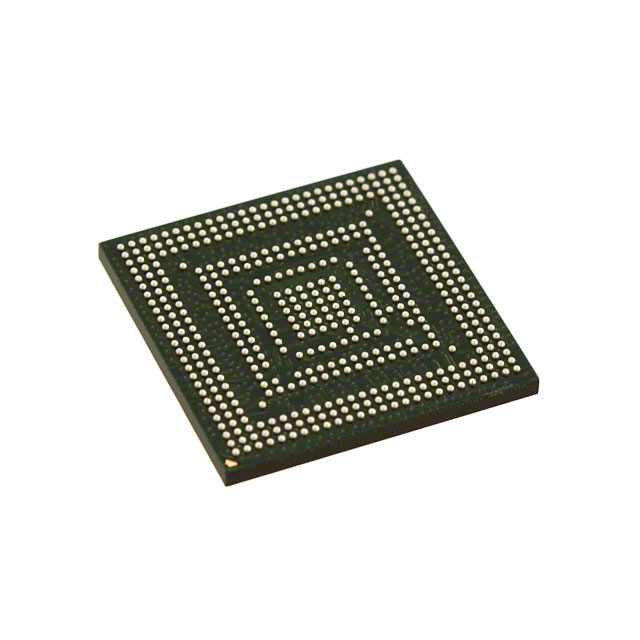

• Package & Mounting: 457‑LFBGA (14 × 14 mm, 0.5 mm pitch) surface‑mount package supplied in Tape & Reel (TR).
• Operating Range & Qualification: Industrial qualification with operating temperature range of -40 °C to 85 °C.

Typical Applications

• High‑tier and mid‑tier smartphones: Integration of multimedia accelerators, image processing and USB connectivity supports rich phone features and media playback.
• Portable media players: Hardware MPEG‑4 encoder, graphics acceleration and DDR memory interface enable audio/video playback and user interfaces.
• Multimedia handheld devices: On‑chip IPU, GPU and VFP co‑processor accelerate imaging and graphics workloads for handheld platforms.

Unique Advantages

• Balanced performance and power: ARM1136JF‑S core up to 532 MHz combined with DVFS, power gating and clock gating techniques for efficient operation.
• Integrated multimedia engines: Hardware MPEG‑4 encoder, IPU, GPU and VFP offload media and imaging tasks to reduce software complexity and CPU load.
• Comprehensive memory and peripheral support: DDR controller plus support for multiple external memory types and high‑speed interfaces simplifies system integration.
• Built‑in security primitives: RNG, secure fusebox, secure JTAG and secure memory provide hardware foundations for secure boot and runtime protection.
• Industrial temperature and packaging: -40 °C to 85 °C rating and compact 457‑LFBGA 14 × 14 mm package support rugged embedded deployments and high‑density PCB layouts.

Why Choose MCIMX31CVKN5DR2?

The MCIMX31CVKN5DR2 positions itself as a well‑integrated multimedia applications processor combining an ARM1136JF‑S core, dedicated multimedia co‑processors and extensive peripheral and memory support. Its industrial temperature rating, on‑chip security features and compact LFBGA package make it suitable for embedded designs that require both multimedia capability and robust operation.

This device is appropriate for designers targeting smartphone and portable media device segments or any embedded application that benefits from hardware video/image acceleration, secure operation and flexible memory interfaces as documented in the MCIMX31 technical data.

Request a quote or submit a procurement inquiry to check availability and pricing for the MCIMX31CVKN5DR2.
