MCIMX6DP6AVT8ABR

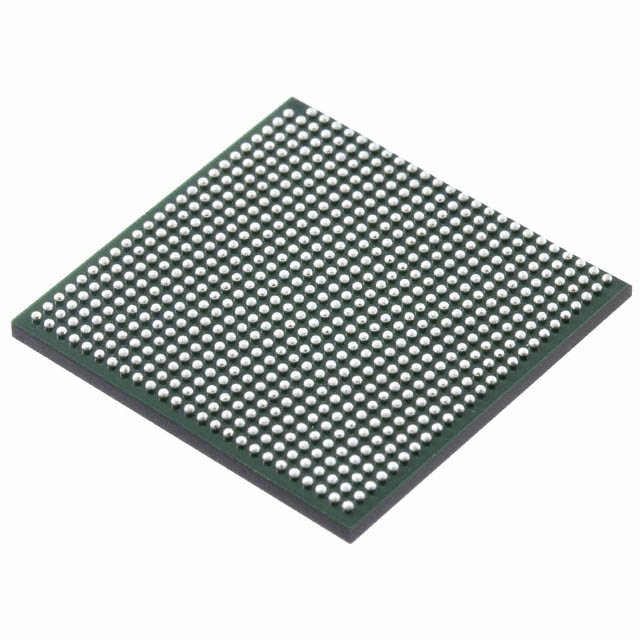

The MCIMX6DP6AVT8ABR is a dual-core ARM® Cortex®-A9 microprocessor IC operating at 852 MHz in a 624-FCBGA (21 x 21 mm) package. It implements the i.MX 6DualPlus series architecture and targets graphics- and multimedia-focused embedded designs that require broad peripheral integration and system-level features.

Designed for embedded systems with demanding display and multimedia requirements, the device combines dual 32-bit cores, dedicated multimedia/NEON SIMD acceleration and a rich set of I/O to simplify platform design and integration.

Key Features

• Core & Performance Dual ARM® Cortex®-A9 cores, 32-bit architecture running at 852 MHz with multimedia/NEON SIMD coprocessor support for accelerated media processing.
• Memory Interfaces 64-bit external memory interfaces supporting LPDDR2, DDR3L and DDR3 to accommodate a range of memory performance and power trade-offs.
• Graphics & Video Graphics acceleration and video processing capabilities from the i.MX 6DualPlus family (including 1080p video processing as described in the series datasheet) for display-rich applications.
• Display Interfaces Multiple display controllers including HDMI, LCD, LVDS, MIPI/DSI and parallel interfaces plus keypad support for flexible HMI designs.
• High-Speed Connectivity Integrated networking and storage interfaces: 10/100/1000 Mbps Ethernet (1), SATA 3 Gbps (1), multiple USB 2.0 ports with PHYs (three host ports and one OTG), and CAN for vehicle/industrial networks.
• Security & Trust On-chip security features including ARM TrustZone (TZ), A‑HAB, CAAM, CSU, SJC and SNVS for secure boot and system protection functions.
• Power & System Integration Includes integrated power management and PLL/clocking features described in the i.MX 6DualPlus series documentation to support efficient board-level power design.
• Package & Reliability 624-FCBGA package (21 x 21 mm, 0.8 mm pitch) in a surface-mount form factor with an extended operating temperature range of −40 °C to 125 °C.
• Compliance RoHS compliant.

Typical Applications

• High-performance infotainment systems — Leveraging dual-core processing, graphics acceleration and multiple display interfaces for advanced multimedia user interfaces.
• Graphics-intensive embedded displays — Suitable for systems requiring HDMI, LVDS or MIPI/DSI connectivity and 1080p-capable video processing.
• Multimedia devices and digital signage — Integrated storage (SATA), Gigabit Ethernet and USB connectivity for content delivery and playback platforms.
• Camera and sensor interface hubs — Support for camera sensors and peripheral connectivity to aggregate and process imaging data.

Unique Advantages

• Dual-core processing with SIMD acceleration: Delivers parallel compute capacity and NEON multimedia acceleration to handle demanding media and signal-processing tasks.
• Broad display and peripheral integration: Multiple native display controllers and a wide range of high-speed interfaces reduce external bridge and controller requirements.
• Comprehensive security feature set: Hardware security building blocks (TrustZone, A‑HAB, CAAM, CSU, SJC, SNVS) support secure boot and runtime protection strategies.
• Flexible memory support: 64-bit memory interface compatible with LPDDR2, DDR3L and DDR3 offers design flexibility across power and performance points.
• Industrial temperature capability: Rated operation from −40 °C to 125 °C for deployments requiring extended temperature resilience.
• Proven i.MX 6 series architecture: Series-level features such as integrated power management and 1080p video processing help accelerate platform development.

Why Choose MCIMX6DP6AVT8ABR?

The MCIMX6DP6AVT8ABR combines dual ARM® Cortex®-A9 cores, multimedia acceleration and a wide array of high-speed interfaces in a compact 624-FCBGA package, making it suitable for embedded designs that demand integrated display, storage and connectivity capabilities. Its extended operating temperature range and comprehensive on-chip security features address robustness and system protection needs.

This device is well suited to developers building display-driven, multimedia-rich embedded platforms who need a validated i.MX 6 series implementation with clear hardware interfaces and system-level features documented in the technical datasheet.

Request a quote or submit an inquiry to receive pricing, availability and lead-time information for MCIMX6DP6AVT8ABR.
