MCIMX6G2CVK05AB

The MCIMX6G2CVK05AB is an NXP i.MX 6UltraLite family microprocessor featuring a single ARM® Cortex®‑A7 core operating up to 528 MHz. It combines a compact 272‑MAPBGA (9×9 mm) package and industrial-grade qualification for embedded applications that require efficient single‑core processing and broad peripheral connectivity.

Designed for space‑constrained industrial designs, the device integrates power management features and multiple memory and I/O interfaces to simplify system design and support a range of peripherals and boot options.

Key Features

• Core & Performance  Single ARM® Cortex®‑A7 32‑bit core running up to 528 MHz, delivering balance between processing capability and energy efficiency for embedded control and edge tasks.
• Memory and Storage Interfaces  Supports LPDDR2, DDR3 and DDR3L memory controllers; datasheet for the i.MX 6UltraLite family also documents Raw and Managed NAND, NOR flash, eMMC and Quad SPI support for flexible storage options.
• Connectivity & Peripherals  Integrated interfaces include dual 10/100 Mbps Ethernet ports, two USB 2.0 controllers with PHY, and CAN, enabling wired networking and common peripheral connectivity.
• Display Support  Display interface controllers for LCD and LVDS provide options for modern HMI and panel integration.
• Security Features  On‑chip security blocks including ARM TrustZone (ARM TZ), A‑HAB, CAAM, CSU, SJC and SNVS for secure boot, cryptography and system integrity functions.
• Power Management  The i.MX 6UltraLite family includes an integrated power management module and on‑chip regulators to reduce external power supply complexity and simplify sequencing.

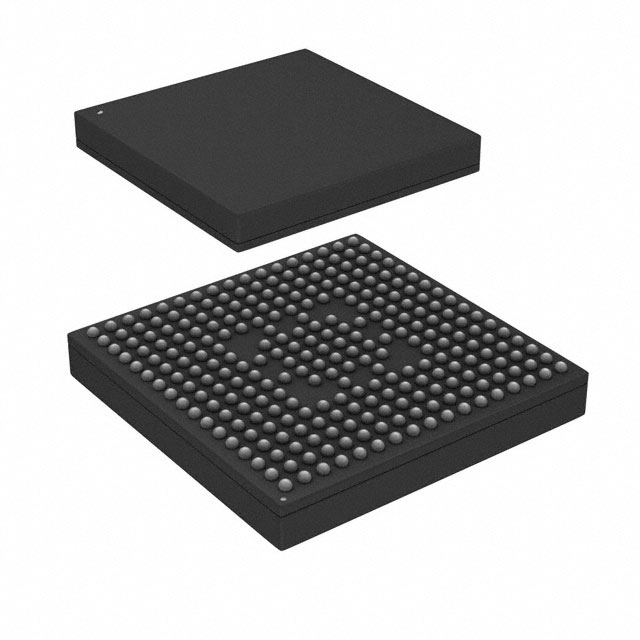

• Package & Mounting  272‑MAPBGA (9×9 mm) surface‑mount package (also referenced as 272‑LFBGA package case) for compact PCB implementation.
• Industrial Temperature Range  Rated for operation from −40 °C to 105 °C and offered with industrial qualification for deployment in demanding environments.
• Standards Compliance  RoHS compliant for materials and manufacturing conformity.

Typical Applications

• Point‑of‑Sale terminals  Single‑core processing, integrated interfaces and compact package suit payment and POS controllers with display and network connectivity.
• Telematics  Industrial temperature rating, dual Ethernet and CAN support make it suitable for vehicle telematics and fleet management devices.
• IoT Gateways  Integrated power management, Ethernet and USB ports enable gateway designs that bridge field devices to cloud or enterprise networks.
• Access Control  Secure boot and on‑chip security modules provide foundations for secure access controllers and credential handling.

Unique Advantages

• Highly integrated power management: The integrated power management module reduces external power supply complexity and simplifies power sequencing for compact designs.
• Flexible memory support: On‑chip controllers for LPDDR2, DDR3 and DDR3L plus support for common flash options allow designers to select memory and storage that match performance and cost targets.
• Industrial‑grade operation: −40 °C to 105 °C operating range and industrial qualification provide robustness for harsh environments.
• Comprehensive security suite: Built‑in ARM TrustZone, A‑HAB, CAAM and related security blocks enable secure boot and cryptographic services for protected embedded systems.
• Compact, surface‑mount package: The 272‑MAPBGA (9×9 mm) package supports dense PCB layouts and space‑constrained product designs.

Why Choose MCIMX6G2CVK05AB?

MCIMX6G2CVK05AB is positioned for embedded and industrial applications that require a reliable, single‑core ARM® Cortex®‑A7 processor with integrated power management, broad memory interface support and a compact BGA footprint. Its combination of industrial temperature rating and on‑chip security features makes it suitable for commercial and industrial control, connectivity and HMI designs.

As a member of the i.MX 6UltraLite family, this device benefits from documented family features such as multiple flash and storage options, integrated regulators and a wide range of peripheral interfaces—helping reduce BOM complexity and accelerate development for volume products.

Request a quote or submit an inquiry to receive pricing, availability and technical purchase support for MCIMX6G2CVK05AB.
