MCIMX6G3DVK05AA

The MCIMX6G3DVK05AA is an NXP Semiconductors i.MX 6UltraLite family microprocessor implementing a single ARM® Cortex®-A7 32-bit core running up to 528 MHz. It targets embedded consumer applications and offers an ultra-efficient architecture with integrated system-level features to simplify board design.

Designed for use in markets such as IoT gateways, point-of-sale, telematics, access control and human machine interfaces, the device combines a compact BGA package with multiple memory and peripheral interfaces and on-chip power management to reduce external component count.

Key Features

• Core and Acceleration  Single ARM® Cortex®-A7 32-bit core operating at up to 528 MHz with multimedia co-processor support including NEON™ SIMD for accelerated data processing.
• Memory Interfaces  Integrated controllers for LPDDR2, DDR3 and DDR3L plus support for raw and managed NAND flash, NOR flash, eMMC and Quad SPI as documented for the i.MX 6UltraLite family.
• Integrated Power Management  On-chip power management module reduces external power supply complexity and simplifies power sequencing as described in the device family documentation.
• Connectivity and Peripherals  Dual 10/100 Mbps Ethernet ports, two USB 2.0 interfaces with PHY, and additional interfaces including CAN and display controllers for LCD and LVDS.
• Security Features  Hardware security features include ARM TrustZone (ARM TZ), A-HAB, CAAM, CSU, SJC and SNVS to support secure boot and system protection functions.

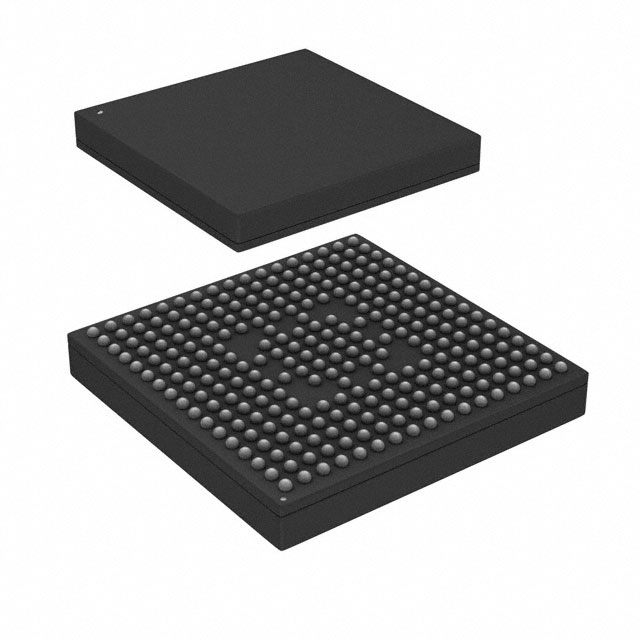

• Package and Mounting  Supplier device package: 272‑MAPBGA (9×9 mm) with surface mount; package case listed as 272‑LFBGA in family documentation.
• Environmental and Qualification  Consumer qualification and RoHS compliance; specified operating temperature range 0 °C to 95 °C.

Typical Applications

• Point-of-Sale (POS) systems  Use the single-core Cortex‑A7 performance and multimedia processing to drive transaction UI, peripheral interfacing and secure boot functionality.
• IoT Gateways  Dual Ethernet, USB and CAN support make the device suitable for gateway designs requiring multiple wired interfaces and reliable connectivity.
• Telematics and Access Control  Integration of security modules and multiple peripheral interfaces supports secure device authentication and connectivity in telematics and access control panels.
• Human Machine Interfaces (HMI)  LCD and LVDS display controllers plus multimedia capabilities enable user interface control for embedded display applications.
• Smart Appliances  On-chip power management, compact BGA packaging and flexible memory support are useful for embedded appliance control and feature integration.

Unique Advantages

• Highly integrated power management: Integrated power management module reduces external regulator count and simplifies board-level power sequencing.
• Flexible memory support: Native controllers for LPDDR2, DDR3 and DDR3L and support for multiple flash types enable a wide range of memory configurations.
• Broad peripheral mix: Dual Ethernet, USB 2.0 with PHY, CAN and display interfaces provide ready-made connectivity options for diverse embedded designs.
• Security-capable platform: Hardware security blocks (ARM TZ, A-HAB, CAAM, CSU, SJC, SNVS) help implement secure boot and runtime protection strategies.
• Compact BGA footprint: 272‑MAPBGA (9×9 mm) supplier package supports high-density board designs where space is a premium.
• Consumer-grade qualification and RoHS compliance: Designed for consumer embedded applications with documented operating range and environmental compliance.

Why Choose MCIMX6G3DVK05AA?

The MCIMX6G3DVK05AA positions itself as a compact, ultra-efficient single-core application processor for embedded consumer designs that require a balanced mix of processing, connectivity and security. Its integrated power management and broad memory/peripheral support simplify system architecture and reduce BOM complexity.

This part is suited for engineers developing IoT gateways, POS, telematics, HMI and appliance control systems who need a verified family platform with documented package options, security features and consumer-grade qualification backed by NXP’s i.MX 6UltraLite documentation.

Request a quote or submit a procurement inquiry to receive pricing and availability for MCIMX6G3DVK05AA and to discuss volume packaging or technical support options.
