MCIMX6G3DVM05AA-NXP

The MCIMX6G3DVM05AA-NXP is a single-core ARM® Cortex®-A7 microprocessor from the NXP i.MX 6G series, operating at 528 MHz in a 289-ball MAPBGA (14×14) package. Designed for embedded and consumer applications, it combines a 32-bit core with multimedia SIMD and security engines to deliver balanced compute, connectivity, and system integration.

Key Features

• Processor Core ARM® Cortex®-A7, single 32-bit core running at 528 MHz for general embedded compute tasks.
• Multimedia Acceleration Integrated multimedia/NEON™ SIMD support for optimized signal and media processing workloads.
• Memory Interfaces Built-in controllers for LPDDR2, DDR3 and DDR3L memory types to support flexible system memory choices.
• Display Interfaces LCD and LVDS display controller support for driving local displays and flat-panel interfaces.
• Connectivity Integrated 10/100 Mbps Ethernet (1), USB 2.0 with PHY (1) and CAN interface for common wired communications.
• Security Features Hardware security primitives including ARM TrustZone (ARM TZ), A-HAB, CAAM, CSU, SJC and SNVS to support system integrity and secure boot strategies.

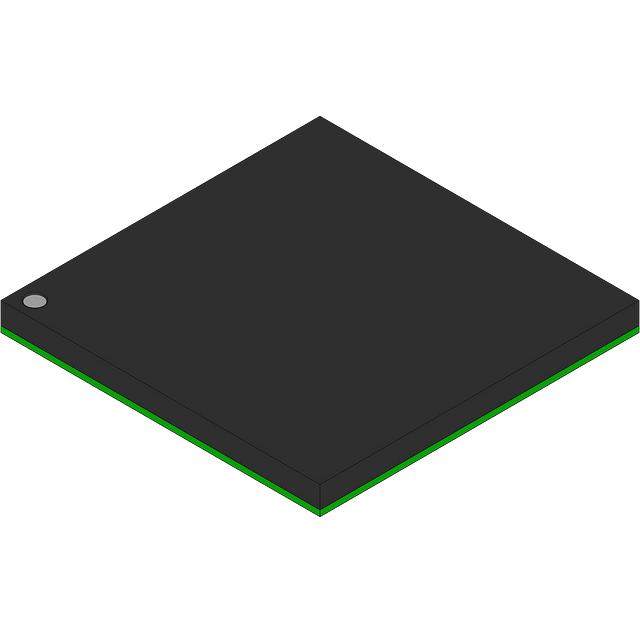

• Package and Mounting Supplier device package: 289-MAPBGA (14×14); package case listed as 289-LFBGA. Surface-mount mounting type suitable for compact embedded boards.
• Operating Range Rated for operation from 0 °C to 95 °C, targeted to consumer qualification.
• Graphics Acceleration No dedicated graphics acceleration included.

Typical Applications

• Embedded Control — Single-core processing and real-time-capable interfaces make this device suitable for general-purpose embedded controllers and appliance electronics.
• HMI and Display Panels — LCD and LVDS display support enable use in human-machine interfaces and control panels where moderate display driving is required.
• Connectivity Modules — Integrated Ethernet, USB 2.0 with PHY and CAN make the part a fit for networked consumer devices and local communications gateways.
• Consumer Electronics — Consumer qualification and flexible memory support permit deployment in a range of consumer-facing products requiring integrated security and multimedia processing.

Unique Advantages

• Compact BGA Packaging: 289-ball MAPBGA (14×14) footprint allows high-density board layouts and surface-mount assembly.
• Balanced Processing Performance: 528 MHz ARM® Cortex®-A7 single-core delivers deterministic single-threaded performance for control and media tasks.
• Flexible Memory Support: On-chip controllers for LPDDR2, DDR3 and DDR3L provide design flexibility across performance and power trade-offs.
• Integrated Connectivity: Built-in Ethernet, USB 2.0 with PHY and CAN reduce external component count and simplify system-level I/O design.
• Extensive Security Suite: Multiple hardware security features (ARM TZ, A-HAB, CAAM, CSU, SJC, SNVS) support secure boot and trusted execution requirements.

Why Choose MCIMX6G3DVM05AA-NXP?

The MCIMX6G3DVM05AA-NXP positions itself as a compact, single-core embedded MPU that blends essential compute capability with integrated connectivity and hardware security. Its support for multiple memory types, display interfaces, and wired communications makes it suitable for consumer and embedded designs that require a balance of performance, integration, and secure operation.

This device is well suited to engineers and procurement teams developing consumer and embedded systems that prioritize compact packaging, integrated I/O, and on-chip security while maintaining clear device qualification and operating range information.

Request a quote or submit an inquiry to receive pricing and availability information for the MCIMX6G3DVM05AA-NXP. Our team can provide lead-time details and support your design evaluation needs.
