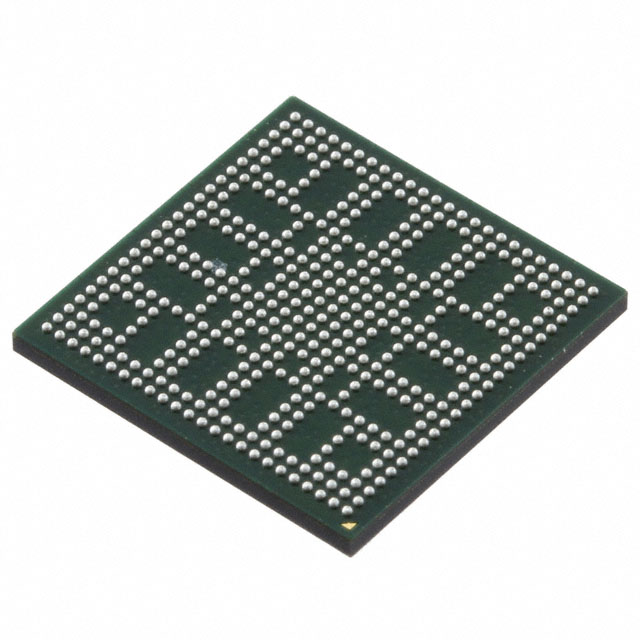

MCIMX6L2DVN10AC

The MCIMX6L2DVN10AC is an NXP i.MX 6SoloLite family application processor implementing a single ARM® Cortex®-A9 core running at 1.0 GHz in a 432-MAPBGA (13 × 13 mm) package. It targets consumer multimedia and embedded applications that require a balance of processing performance, integrated multimedia support and power management.

Key on-chip capabilities include a 32-bit application core, multimedia/NEON SIMD acceleration, integrated 2D graphics and on-chip power management. The device supports common mobile memory interfaces and a range of peripheral connectivity suitable for eReaders, entry-level tablets and similar consumer products.

Key Features

• Core — Single ARM® Cortex®-A9 32-bit core running at up to 1 GHz for application processing.
• Multimedia Acceleration — Includes multimedia co-processor support and NEON™ SIMD for accelerated media and signal processing tasks.
• Graphics — Integrated 2D graphics acceleration to support LCD-based user interfaces.
• Memory Support — Memory controller support for LPDDR2, LVDDR3 and DDR3; datasheet references a 32-bit DDR3-800 memory interface for high-bandwidth external memory configurations.
• Interfaces — Multiple peripheral interfaces including USB 2.0 with on-chip PHY (3 ports), 10/100 Mbps Ethernet (1), AC97 audio interface, and display/keypad controllers.
• Security — Comprehensive security feature set including ARM TrustZone, boot security, cryptography, secure fusebox, secure JTAG, secure memory, secure RTC and tamper detection.
• Power and Integration — On-chip integrated power management to simplify power sequencing and system design.
• Package and Mounting — 432-MAPBGA (13 × 13 mm, 0.5 mm pitch) plastic BGA package; surface-mount device.
• Operating Range — Consumer-grade qualification with specified operating temperature range of 0 °C to 95 °C.
• RoHS — RoHS compliant.

Typical Applications

• Color and Monochrome eReaders — Process and render page content while managing low-power operation and display control.
• Entry-Level Tablets — Handle user interfaces, multimedia playback and peripheral connectivity in consumer tablet designs.
• Barcode Scanners — Provide the compute and peripheral support needed for data processing and I/O in handheld scanning devices.

Unique Advantages

• Integrated multimedia and NEON SIMD — Offloads media and signal processing tasks to specialized engines to free the main core for application logic.
• On-chip power management — Simplifies system power design and sequencing by integrating power management functionality on the processor.
• Flexible external memory support — Support for LPDDR2, LVDDR3 and DDR3 memory interfaces enables designers to choose memory types that match cost and performance targets.
• Comprehensive security features — Built-in TrustZone, boot security and cryptography features help protect boot and runtime assets in consumer devices.
• Rich peripheral set — Multiple USB 2.0 ports with PHY, Ethernet, audio interface and display controllers reduce the need for external bridge chips.
• Compact BGA package — 13 × 13 mm MAPBGA with 0.5 mm pitch supports dense, space-constrained board designs.

Why Choose MCIMX6L2DVN10AC?

The MCIMX6L2DVN10AC positions itself as a well-integrated application processor choice for consumer multimedia and embedded designs that require an ARM® Cortex®-A9 single-core at up to 1 GHz, on-chip multimedia acceleration, and a broad set of peripheral interfaces. Its memory flexibility, integrated power management and comprehensive security features make it suitable for designs that prioritize integration and controlled BOM complexity.

Engineers designing eReaders, entry-level tablets or handheld scanners will find the i.MX6SoloLite-based MCIMX6L2DVN10AC useful for delivering the required application performance while supporting common consumer peripherals and display subsystems. The device’s consumer qualification and RoHS compliance support streamlined product development for consumer markets.

Request a quote or submit an inquiry to discuss pricing, availability and how MCIMX6L2DVN10AC fits your next embedded design.
