MCIMX6L2EVN10ACR

The MCIMX6L2EVN10ACR is an NXP i.MX 6L series applications microprocessor featuring a single ARM® Cortex®-A9 core running at up to 1.0 GHz. Designed for embedded multimedia applications, it integrates graphics acceleration, memory controllers and on-chip power management for compact, power-conscious designs.

Typical use cases include consumer and industrial embedded products that require a balance of performance and integration such as eReaders, entry-level tablets and barcode scanners. Industrial qualification and a wide operating temperature range support deployment in demanding environments.

Key Features

• Core  Single ARM® Cortex®-A9 32-bit core operating up to 1 GHz for responsive application processing.
• Co-processors and DSP  Multimedia acceleration with NEON™ SIMD support to enhance media and signal-processing tasks.
• Memory  Integrated memory controllers for LPDDR2, LVDDR3 and DDR3 to support a range of system memory configurations.
• Graphics and Display  2D graphics acceleration and display interface controllers including LCD and keypad support for user interfaces.
• Connectivity  Integrated Ethernet 10/100 Mbps (1) and USB 2.0 with PHY (3) plus AC97 audio interface for common peripheral and network connectivity.
• Security  Hardware security features including ARM TrustZone (ARM TZ), boot security, cryptography, secure fusebox, secure JTAG, secure memory, secure RTC and tamper detection.
• Power and Integration  On-chip power management and integrated peripherals reduce external component count and simplify board design.

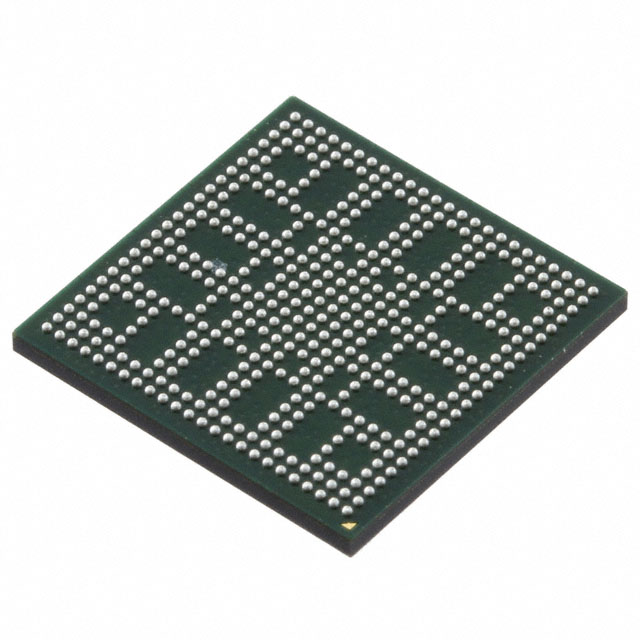

• Package and Mounting  432-MAPBGA supplier device package in a 13 × 13 mm format (432-TFBGA referenced) with surface mount capability.
• Industrial Qualification & Temperature  Qualified for industrial applications with an operating temperature range of −40 °C to 105 °C.

Typical Applications

• eReaders and Display Devices  2D graphics acceleration and LCD controller support make it suitable for color and monochrome eReader designs.
• Entry-Level Tablets  A compact, integrated processor option for entry-level tablets requiring balanced CPU and multimedia capability.
• Barcode Scanners and Handheld Terminals  Embedded connectivity, multimedia processing and industrial temperature qualification suit portable data-capture devices.

Unique Advantages

• Integrated Multimedia Subsystem  NEON SIMD and 2D graphics acceleration provide hardware assistance for media and UI workloads, reducing software workload.
• Flexible Memory Support  Support for LPDDR2, LVDDR3 and DDR3 memory controllers enables designers to choose memory technology that fits performance and cost targets.
• Rich Peripheral Set  Built-in Ethernet, multiple USB 2.0 with PHY, LCD and AC97 interfaces minimize external bridge components.
• Industrial-Grade Reliability  Industrial qualification plus a −40 °C to 105 °C operating range allows deployment in temperature-challenging environments.
• Hardware Security Suite  Multiple on-chip security features support protected boot and cryptographic functions to help safeguard device integrity.
• Compact BGA Package  432-MAPBGA 13 × 13 mm package supports small form-factor designs while maintaining a broad I/O feature set.

Why Choose MCIMX6L2EVN10ACR?

The MCIMX6L2EVN10ACR positions itself as a compact, industrially qualified applications processor that balances CPU performance, multimedia support and system-level integration. Its single ARM Cortex-A9 core, multimedia co-processing and broad memory interface support make it suitable for embedded designs demanding responsive UI and media handling within a small footprint.

This device is aimed at designers of consumer and industrial embedded products who need a verified silicon platform with integrated peripherals and on-chip power management to reduce BOM complexity and accelerate time-to-market.

Request a quote or submit a purchase inquiry to get pricing and availability for the MCIMX6L2EVN10ACR. Our team can provide part-specific ordering and lead-time information to support your design and sourcing planning.
