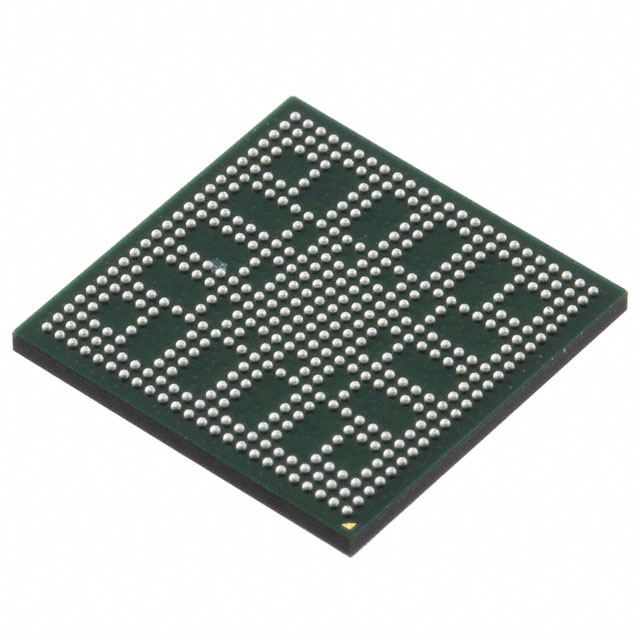

MCIMX6L3DVN10AA

The MCIMX6L3DVN10AA is an i.MX 6SoloLite series multimedia applications processor featuring a single ARM® Cortex®-A9 core running at up to 1.0 GHz. It combines processing performance, integrated graphics acceleration and system-level interfaces in a compact 432-MAPBGA (13 × 13 mm) package for consumer-focused embedded designs.

Designed for low-power multimedia applications, this device targets consumer segments such as eReaders, entry-level tablets and handheld scanners where display support, multimedia processing and secure boot capabilities are required.

Key Features

• Core and Performance  Single ARM® Cortex®-A9 core, 32-bit, up to 1 GHz for responsive application workloads.
• Multimedia and SIMD  Multimedia co-processor support with NEON™ SIMD and integrated 2D graphics acceleration for UI and content rendering.
• Memory Interfaces  Integrated memory controllers supporting LPDDR2, LVDDR3 and DDR3 (DDR3-800 indicated in datasheet content) to match a range of system memory designs.
• Display and Audio  Display interface controllers including LCD and keypad support plus AC97 audio interface for multimedia devices.
• High-speed Peripherals  Three USB 2.0 ports with integrated PHY and a single 10/100 Mbps Ethernet interface provide flexible connectivity options.
• Security and Trust  On-chip security features including ARM TrustZone (ARM TZ), boot security, cryptography, secure fusebox, secure JTAG, secure memory, secure RTC and tamper detection.
• System Integration  Integrated power management elements and on-chip functions reduce external BOM and simplify power sequencing (as described in the series datasheet).
• Package and Temperature  432-MAPBGA supplier device package in a 13 × 13 mm plastic package with 0.5 mm pitch; surface mount. Specified operating temperature range: 0 °C to 95 °C.
• Qualification and Compliance  Consumer qualification and RoHS compliance for use in consumer product designs.

Typical Applications

• eReaders  Color and monochrome eReaders benefit from the device’s 2D graphics acceleration, display interfaces and low-power multimedia focus.
• Entry-level Tablets  Single-core Cortex-A9 processing, multimedia SIMD and multiple memory interface options make it suitable for cost-sensitive tablet platforms.
• Barcode Scanners and Handheld Terminals  Compact package, integrated connectivity (USB, Ethernet) and security features support handheld scanner control and secure data handling.

Unique Advantages

• Highly integrated multimedia engine: Combines an ARM Cortex-A9 core with NEON SIMD and 2D graphics acceleration to handle UI and multimedia tasks within a single device.
• Flexible memory support: Native controllers for LPDDR2, LVDDR3 and DDR3 let designers choose memory types that balance cost and performance.
• Rich peripheral set: Multiple USB 2.0 + PHY ports, 10/100 Ethernet and audio/display interfaces reduce the need for external controllers.
• Security built in: On-chip TrustZone, cryptography, secure boot and tamper detection help protect data and enable secure product boot flows.
• Compact, manufacturable package: 432-MAPBGA (13 × 13 mm, 0.5 mm pitch) surface-mount package supports dense designs and standard assembly processes.
• Consumer-focused qualification: RoHS-compliant and specified for consumer temperature ranges to match consumer electronics production requirements.

Why Choose MCIMX6L3DVN10AA?

The MCIMX6L3DVN10AA positions itself as a balanced, integrated solution for consumer multimedia and embedded applications that require a capable single-core ARM Cortex-A9 processor, display and audio interfaces, and on-chip security. Its memory flexibility, multiple USB ports, Ethernet and compact 432-MAPBGA package make it well suited to designs such as eReaders, entry-level tablets and handheld scanners.

Backed by i.MX 6 series documentation and datasheet-level detail, this device offers a clear integration path for teams seeking a low-power multimedia processor with system-level features that simplify BOM and accelerate time-to-market.

Request a quote or submit an inquiry to receive pricing and availability for MCIMX6L3DVN10AA and to discuss how it fits your next embedded consumer design.
