MCIMX6L3DVN10AC

The MCIMX6L3DVN10AC is an NXP i.MX 6L series applications microprocessor featuring a single ARM® Cortex®-A9 core running at up to 1.0 GHz. It targets multimedia-focused consumer applications where integrated processing, graphics and power management are required.

Designed for compact embedded designs, the device integrates a 2D graphics processor, memory controller and a range of peripheral interfaces to support eReaders, entry-level tablets, barcode scanners and similar consumer products.

Key Features

• Core – Single ARM® Cortex®-A9 32-bit core operating up to 1 GHz for responsive application processing.
• Multimedia & Acceleration – Integrated 2D graphics acceleration and NEON™ SIMD; suitable for multimedia and UI tasks.
• Memory Support – Built-in controllers supporting LPDDR2, LVDDR3 and DDR3 memory interfaces for flexible system memory configurations.
• Connectivity – Integrated USB 2.0 with PHY (3) and a single 10/100 Mbps Ethernet controller for wired and host-peripheral connectivity.
• Display & Audio Interfaces – LCD and keypad display interface controllers plus AC97 audio interface for simple display and audio subsystem integration.
• Security – Hardware security features including ARM TrustZone (ARM TZ), boot security, cryptography, Secure JTAG, secure memory, secure RTC, secure fusebox, RTIC and tamper detection.
• Power Management – Integrated power management features to help balance performance and energy efficiency in portable consumer designs.

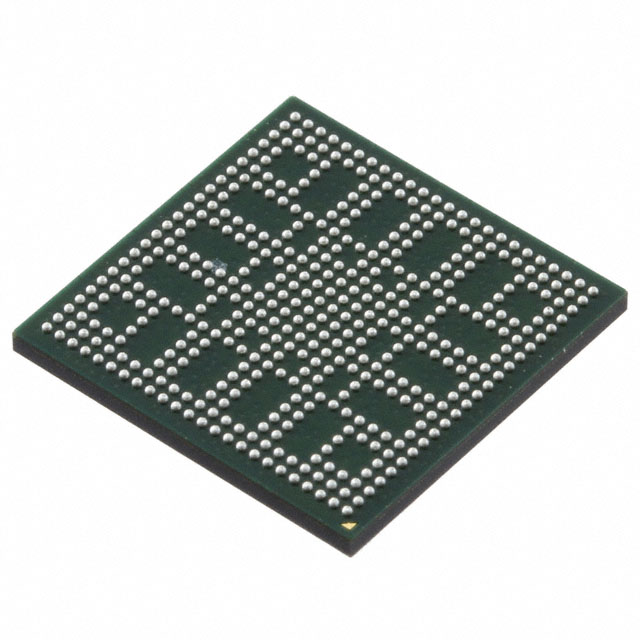

• Package & Mounting – 432-MAPBGA (13 × 13 mm) surface-mount package (432-TFBGA listing), designed for space-constrained PCBs.
• Qualification & Compliance – Consumer qualified and RoHS compliant for consumer electronics applications.
• Operating Temperature – Rated for 0 °C to 95 °C operation for typical consumer-environment deployments.

Typical Applications

• eReaders – Supports color and monochrome eReader designs requiring efficient display handling and low-power operation.
• Entry-level Tablets – Provides the processing, graphics acceleration and memory interfaces suited to affordable tablet platforms.
• Barcode Scanners – Delivers the multimedia and I/O connectivity needed for handheld barcode scanning and similar consumer devices.

Unique Advantages

• Highly integrated multimedia processing: Single Cortex‑A9 core combined with NEON SIMD and 2D graphics acceleration reduces external component needs for UI and media tasks.
• Flexible memory support: LPDDR2, LVDDR3 and DDR3 controller options allow designers to choose memory types that match cost and performance targets.
• Broad connectivity in a compact package: Multiple USB 2.0 ports with PHY, 10/100 Ethernet and AC97 in a 13 × 13 mm MAPBGA simplify system-level design in space-constrained products.
• Comprehensive security features: Hardware-level security blocks and secure boot capabilities help protect device integrity and sensitive data.
• Integrated power management: On-chip power management supports efficient operation for portable and battery-powered consumer devices.
• Documented platform: Supported by published datasheet and package information for design and qualification activities.

Why Choose MCIMX6L3DVN10AC?

The MCIMX6L3DVN10AC provides a balanced combination of processing performance, multimedia capability and integrated peripherals tailored for consumer multimedia devices. Its single ARM Cortex‑A9 core, NEON SIMD acceleration, graphics support and flexible memory interfaces make it suitable for compact, cost-conscious embedded designs.

As a member of the i.MX 6L family, this device offers the documentation and package details necessary for development and production of eReaders, entry-level tablets and barcode scanners, delivering a clear path from design to deployment in consumer applications.

Request a quote or submit a purchasing inquiry for the MCIMX6L3DVN10AC to initiate pricing and availability details for your design needs.
