MCIMX6L7DVN10AC

The MCIMX6L7DVN10AC is an NXP Semiconductors i.MX 6SoloLite ARM® Cortex®‑A9 based microprocessor running at up to 1.0 GHz. It is a single‑core, 32‑bit applications processor targeted at consumer multimedia products where efficient processing, integrated peripherals and compact packaging are required.

Designed for embedded consumer use, the device integrates processing, graphics acceleration and multiple peripheral interfaces to support products such as eReaders, entry‑level tablets and handheld scanners, while offering integrated power management and a compact 432‑MAPBGA (13×13 mm) package.

Key Features

• Core — Single ARM® Cortex®‑A9 core at 1 GHz providing 32‑bit application processing.
• Multimedia & DSP — Multimedia co‑processor support including NEON™ SIMD and 2D graphics acceleration for display and UI tasks.
• Memory Interfaces — Supports LPDDR2, LVDDR3 and DDR3 memory controllers; datasheet references a 32‑bit DDR3‑800 memory interface.
• Display & Input — Integrated LCD and keypad display interface controllers suitable for consumer device user interfaces.
• Connectivity — Integrated 10/100 Mbps Ethernet (1) and three USB 2.0 ports with PHY for wired connectivity and peripheral support.
• Audio & Codec — AC97 additional interface for legacy audio codec connections.
• Security — Hardware security features including ARM TrustZone, boot security, cryptography, secure fusebox, secure JTAG, secure memory, secure RTC and tamper detection.
• Power & Integration — Integrated power management features referenced in the i.MX 6SoloLite documentation to support low‑power multimedia applications.

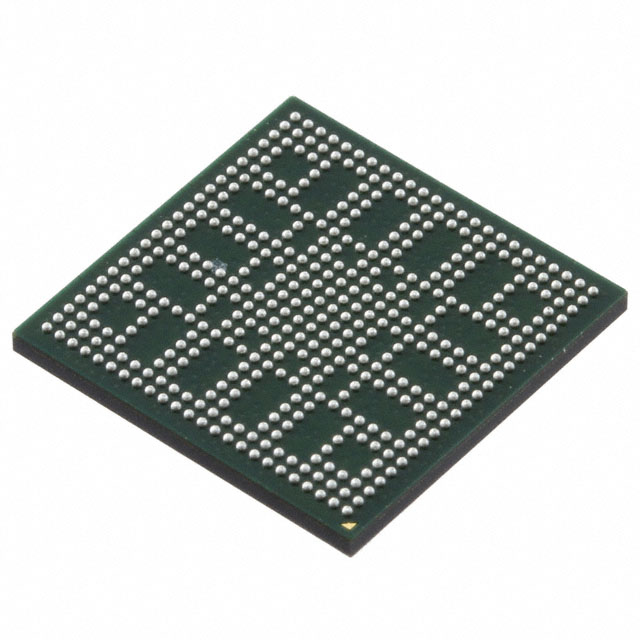

• Package & Mounting — Supplier device package: 432‑MAPBGA (13×13 mm); package case: 432‑TFBGA; surface mount with 0.5 mm pitch as specified in package documentation.
• Temperature & Compliance — Operating temperature range 0 °C to 95 °C; RoHS compliant.

Typical Applications

• Color and Monochrome eReaders — Processing and display interfaces tailored for content rendering and user interaction.
• Entry‑Level Tablets — Single‑core application and graphics acceleration for consumer tablet use cases.
• Barcode Scanners and Handhelds — Integrated connectivity and multimedia capabilities useful for portable scanning and UI control.
• Consumer Multimedia Devices — General consumer products that require a compact, integrated multimedia processor with security features.

Unique Advantages

• Single‑chip multimedia processor: Combines a Cortex‑A9 core with 2D graphics acceleration and NEON SIMD to handle UI and multimedia tasks within a compact solution.
• Flexible memory support: Multiple memory controller support (LPDDR2, LVDDR3, DDR3) including DDR3‑800 enables designers to choose memory options to fit system cost and performance targets.
• Integrated connectivity: On‑chip Ethernet and multiple USB 2.0 ports with PHY reduce external component count for networking and peripheral expansion.
• Comprehensive hardware security: Built‑in TrustZone, secure boot and related security primitives provide a foundation for protected boot and cryptographic operations.
• Compact, manufacturable package: 432‑MAPBGA (13×13 mm) surface‑mount package with 0.5 mm pitch supports high‑density board designs.
• Documented platform: Backed by i.MX 6SoloLite series technical documentation that details electrical characteristics, package information and recommended connections.

Why Choose MCIMX6L7DVN10AC?

The MCIMX6L7DVN10AC positions itself as a compact, integrated solution for consumer multimedia applications that require a balance of processing performance, graphics capability and system‑level security. Its single ARM® Cortex®‑A9 core at 1.0 GHz, combined with multimedia acceleration and multiple memory interface options, makes it suitable for designs where a streamlined BOM and integration matter.

With on‑chip connectivity, security features and a small 13×13 mm package, this device is targeted at engineers developing eReaders, entry‑level tablets, handheld scanners and other consumer multimedia products who need documented electrical and package guidance from the i.MX 6SoloLite series materials.

Request a quote or submit an inquiry for pricing and availability for the MCIMX6L7DVN10AC to learn more about lead times and purchasing options.
