MCIMX6L8DVN10AB

The MCIMX6L8DVN10AB is an NXP Semiconductors i.MX 6L-series applications microprocessor based on a single ARM® Cortex®-A9 core running at up to 1.0 GHz. It integrates multimedia acceleration, power management and a broad set of peripheral interfaces in a compact 432-ball MAPBGA (13 × 13 mm) package.

Designed for consumer multimedia and embedded display applications, this part targets use cases such as eReaders, entry-level tablets and barcode scanners where balanced performance, integration and low-power operation are important.

Key Features

• Core — Single ARM® Cortex®-A9 32-bit core operating up to 1 GHz, suitable for general embedded application processing.
• Memory Interfaces — Supports LPDDR2, LVDDR3 and DDR3 memory controllers for flexible system memory configurations.
• Graphics & Display — Integrated 2D graphics acceleration plus display interface controllers for LCD and keypad support.
• Connectivity — 10/100 Mbps Ethernet interface (1) and AC97 additional interface for audio/peripheral connectivity.
• USB — USB 2.0 with integrated PHY (3), enabling multiple high-speed peripheral connections.
• Security — Hardware security features including ARM TrustZone, boot security, cryptography, secure fusebox, secure JTAG, secure memory, secure RTC and tamper detection.
• Multimedia Acceleration — Includes multimedia co-processors and NEON™ SIMD support for accelerated media operations.
• Power & Integration — On-chip integrated power management and low-power optimized architecture as described in the i.MX 6SoloLite family specification.

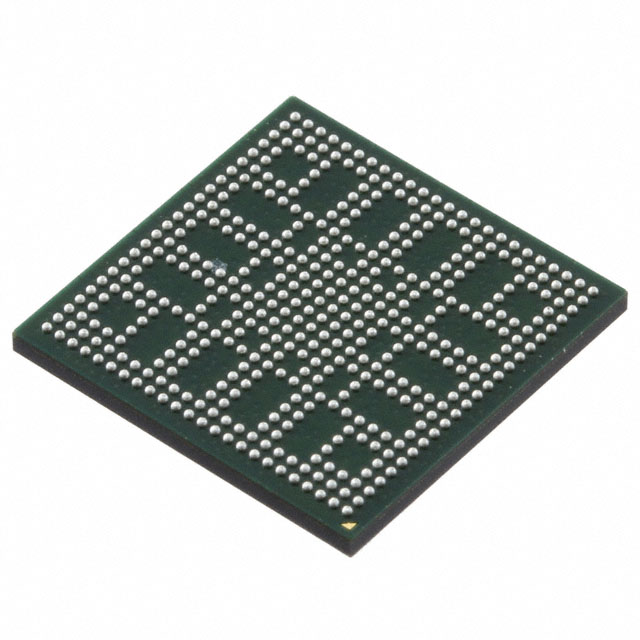

• Package — 432-ball MAPBGA (13 × 13 mm, 0.5 mm pitch) surface-mount package; package case listed as 432-TFBGA.
• Operating Range & Compliance — Consumer-grade qualification with an operating temperature of 0 °C to 95 °C; RoHS compliant.

Typical Applications

• Color and Monochrome eReaders — Integrated graphics and low-power operation support user interfaces and long battery life in eReader platforms.
• Entry-Level Tablets — Single-core processing, multimedia acceleration and multiple memory interface options enable cost-sensitive tablet designs.
• Barcode Scanners — Compact package, integrated peripherals and security features make it suitable for embedded scanning devices.

Unique Advantages

• Highly integrated multimedia platform: On-chip 2D graphics acceleration and NEON™ SIMD support reduce external component needs for media processing.
• Flexible memory support: LPDDR2, LVDDR3 and DDR3 controller options allow designers to choose memory types that match cost and performance targets.
• Comprehensive security: Multiple hardware security mechanisms (TrustZone, secure JTAG, secure memory, secure RTC, secure fusebox, cryptography and tamper detection) address platform trust and data protection requirements.
• Rich peripheral set: Integrated USB 2.0 PHYs, Ethernet and AC97 support a wide range of I/O and audio connectivity without extensive external logic.
• Compact surface-mount package: 432-MAPBGA (13 × 13 mm) enables space-efficient PCB layouts for compact consumer devices.
• Optimized for low power: The i.MX 6SoloLite family implementation includes integrated power management and architecture choices aimed at minimizing power consumption.

Why Choose MCIMX6L8DVN10AB?

The MCIMX6L8DVN10AB combines a 1.0 GHz ARM® Cortex®-A9 core with integrated multimedia, security and power management features in a compact MAPBGA package, offering a balanced solution for consumer multimedia and embedded display applications. As a member of the i.MX 6SoloLite/i.MX 6L family from NXP Semiconductors, it provides a clear upgrade and design-family path for projects that require single-core processing, flexible memory options and on-chip peripherals.

This part is well suited for designers building cost-sensitive, space-constrained consumer devices that need verified hardware security, multiple I/O options and power-optimized operation backed by the i.MX 6L series documentation and package options.
