MCIMX6L8DVN10AC

The MCIMX6L8DVN10AC is an NXP i.MX 6L series applications microprocessor featuring a single ARM® Cortex®‑A9 core running at 1.0 GHz. It targets multimedia‑focused consumer embedded designs, combining processing performance with integrated multimedia and system peripherals.

Designed for cost‑sensitive consumer applications, this device integrates memory interfaces, display and audio controllers, connectivity, and a suite of security features to simplify board design and accelerate time to market.

Key Features

• Core — Single ARM® Cortex®‑A9 32‑bit core operating at 1 GHz, supporting NEON™ SIMD for multimedia acceleration.
• Memory — Integrated memory controller supporting LPDDR2, LVDDR3 and DDR3 memory types for flexible system memory configurations.
• Graphics & Multimedia — Integrated 2D graphics acceleration and multimedia DSP support suitable for UI and basic graphics workloads.
• Connectivity — One 10/100 Mbps Ethernet MAC and three USB 2.0 controllers with integrated PHY provide standard wired and USB connectivity options.
• Display & Audio — LCD and keypad display controllers plus AC97 audio interface for display and audio subsystem integration.
• Security — Hardware security features including ARM TrustZone, boot security, cryptography, secure fusebox, secure JTAG, secure memory and secure RTC, plus tamper detection.
• Power & Integration — Integrated power management features as described in the i.MX6SoloLite documentation to help optimize system power use.

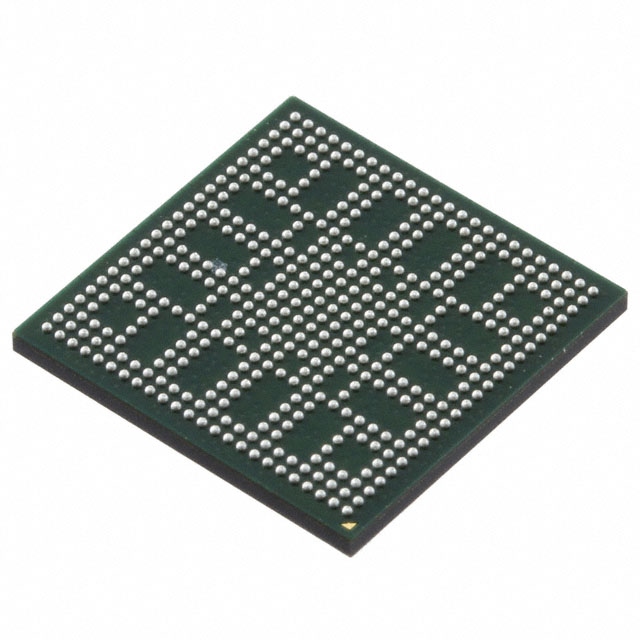

• Package & Mounting — 432‑MAPBGA package (13 × 13 mm), surface mount; supplier package listed as 432‑MAPBGA / 432‑TFBGA.
• Operating Range & Qualification — Consumer qualification with an operating temperature range of 0 °C to 95 °C and RoHS compliance.

Typical Applications

• eReaders — Supports color and monochrome eReader designs that require low‑power multimedia processing and display control.
• Entry‑level Tablets — Suitable for entry‑level tablet platforms needing a single 1.0 GHz application processor with integrated display and audio interfaces.
• Barcode Scanners — Provides the processing and peripheral integration for handheld scanners and similar consumer embedded devices.

Unique Advantages

• Single‑chip multimedia processing: A Cortex‑A9 core combined with multimedia DSP and NEON SIMD enables responsive UI and media handling in compact systems.
• Flexible memory support: Native support for LPDDR2, LVDDR3 and DDR3 memory types lets designers choose the memory technology that fits cost and performance targets.
• Broad peripheral integration: On‑chip USB, Ethernet, display and audio controllers reduce external components and simplify BOM and PCB routing.
• Comprehensive security feature set: Multiple hardware security mechanisms (TrustZone, secure boot, cryptography, secure JTAG, etc.) address common consumer device protection requirements.
• Compact, production‑ready package: 432‑MAPBGA (13 × 13 mm) surface‑mount package enables compact board layouts for space‑constrained designs.
• Consumer market fit: Designed and qualified for consumer applications, aligning with common use cases such as eReaders, tablets and handheld scanners.

Why Choose MCIMX6L8DVN10AC?

The MCIMX6L8DVN10AC positions itself as a practical, integrated solution for consumer multimedia and embedded applications that require a balance of processing capability, peripheral integration, and security. Its single ARM Cortex‑A9 core at 1.0 GHz, combined with integrated graphics acceleration and flexible memory support, helps streamline system architecture and reduce component count.

As part of the i.MX 6L family from NXP, this device is suitable for developers targeting cost‑sensitive consumer products where compact packaging, built‑in connectivity and hardware security are important. The device’s documented electrical and package information supports production‑level design and manufacturing workflows.

Request a quote or submit a pricing request to receive availability and lead‑time details for the MCIMX6L8DVN10AC.
