MCIMX6L8DVN10AA

The MCIMX6L8DVN10AA is an NXP i.MX 6SoloLite application processor featuring a single ARM® Cortex®-A9 core operating at up to 1.0 GHz. It is designed for embedded consumer multimedia applications that require integrated graphics acceleration, memory flexibility, and robust security features.

This device integrates key system functionality — including a 2D graphics processor, integrated power management and a 32-bit DDR3-800 memory interface — in a compact 432‑MAPBGA 13 × 13 mm package, enabling space-efficient designs for portable and display-driven products.

Key Features

• Core Single ARM® Cortex®-A9 32-bit core running up to 1 GHz for application-level processing.
• Multimedia Acceleration Integrated 2D graphics processor and NEON™ SIMD support to accelerate multimedia and signal-processing tasks.
• Memory Support Flexible external memory controller supporting LPDDR2, LVDDR3 and DDR3 (32-bit DDR3-800 interface referenced in datasheet content).
• Connectivity & Interfaces Integrated 10/100 Mbps Ethernet (1), three USB 2.0 ports with PHY, and AC97 audio interface for common peripheral connectivity.
• Security On-chip security features including ARM TrustZone, boot security, cryptography, secure fusebox, secure JTAG, secure memory, secure RTC and tamper detection.
• Power & System Integrated power management and on-chip regulators described in the datasheet to support optimized power sequencing and system integration.

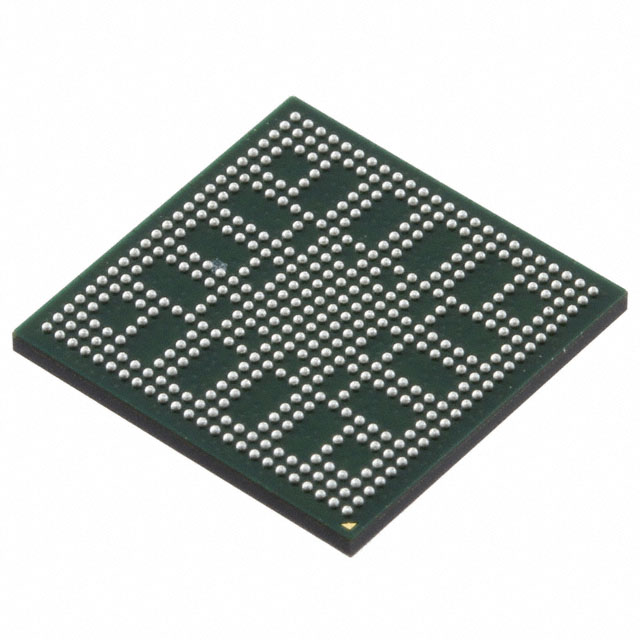

• Package & Mounting 432‑MAPBGA package (13 × 13 mm, 0.5 mm pitch) designed for surface-mount assembly.
• Operating Range & Compliance Consumer qualification with operating temperature range of 0 °C to 95 °C and RoHS compliance.

Typical Applications

• Color and Monochrome eReaders Use the integrated graphics and memory interface to drive displays while keeping board area and BOM low.
• Entry-Level Tablets Single-core processing, multimedia acceleration and multiple USB ports make it suitable for basic tablet platforms.
• Barcode Scanners and Handhelds Compact package, integrated interfaces and security features support secure data capture and processing in portable devices.
• Consumer Multimedia Devices Integrated power management, graphics acceleration and peripheral interfaces enable cost-effective multimedia applications.

Unique Advantages

• Highly integrated multimedia processing: Combines an ARM® Cortex®-A9 core with a 2D graphics processor and NEON™ SIMD to handle UI and media tasks without extensive external hardware.
• Flexible memory options: Support for LPDDR2, LVDDR3 and DDR3 provides design flexibility across cost and performance points.
• Comprehensive security feature set: ARM TrustZone, secure boot and cryptography blocks support protection of code and data in consumer applications.
• Compact, production-ready package: 432‑MAPBGA (13 × 13 mm) with 0.5 mm pitch simplifies board layout for space-constrained designs.
• Integrated connectivity: Built-in Ethernet, multiple USB 2.0 ports with PHY and AC97 interface reduce external component count for common peripherals.
• Designed for consumer applications: Consumer qualification and RoHS compliance align with consumer product requirements and regulatory expectations.

Why Choose MCIMX6L8DVN10AA?

The MCIMX6L8DVN10AA positions itself as a compact, integrated application processor for consumer multimedia and handheld designs that require a balance of processing, graphics support, connectivity and system security. Its single ARM® Cortex®-A9 core at 1.0 GHz, combined with integrated power management and a DDR3-800 memory interface, enables efficient platform designs with fewer external components.

This device is well suited to engineers building eReaders, entry-level tablets, barcode scanners and similar consumer products that prioritize integration, compact packaging and on-chip security. The datasheet-supported features and packaging choices help streamline BOM, layout and thermal considerations for production designs.

Request a quote or submit a procurement inquiry to receive pricing and availability information for the MCIMX6L8DVN10AA.
