MCIMX6L8DVN10ABR

The MCIMX6L8DVN10ABR is an NXP Semiconductors i.MX 6SoloLite family application processor based on a single ARM® Cortex®-A9 core running at up to 1.0 GHz. It targets consumer multimedia and embedded designs that require a compact, integrated solution with optimized power consumption and essential peripheral support.

Designed for entry-level multimedia devices, the device combines a 32-bit Cortex‑A9 core with integrated 2D graphics processing, on-chip power management, and a range of I/O interfaces to simplify system design for products such as eReaders, tablets, and barcode scanners.

Key Features

• Processor Core  Single ARM® Cortex®‑A9 core, 32‑bit, operating up to 1.0 GHz for responsive application processing.
• Memory Interfaces  Supports LPDDR2, LVDDR3 and DDR3 memory controllers to match common mobile/embedded memory choices.
• Graphics & Multimedia  Integrated 2D graphics processor and graphics acceleration to drive LCD displays and basic graphical user interfaces.
• Connectivity & Peripherals  Integrated USB 2.0 controllers with PHY (3), 10/100 Mbps Ethernet (1) and AC97 audio interface for flexible peripheral integration.
• Display & Input  Display interface controllers including LCD and keypad support for user interface implementations.
• Security  Comprehensive security features including ARM TrustZone, Boot Security, Cryptography, RTIC, Secure Fusebox, Secure JTAG, Secure Memory, Secure RTC and Tamper Detection.
• Power Management  On‑chip integrated power management optimized for low power consumption across multimedia applications.

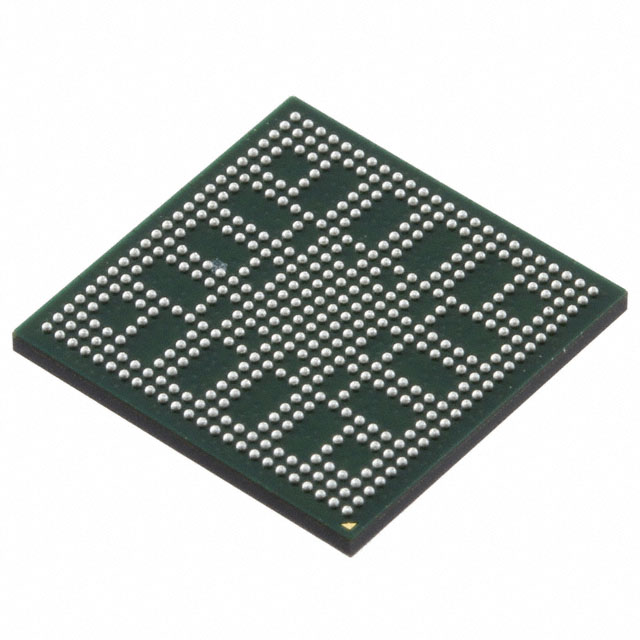

• Package & Mounting  Supplied in a compact 432‑MAPBGA (13 × 13 mm) surface‑mount package; package case listed as 432‑TFBGA.
• Operating Range  Consumer qualification with an operating temperature range of 0 °C to 95 °C.
• Compliance  RoHS compliant.

Typical Applications

• eReaders  Color and monochrome eReaders benefit from the device’s integrated 2D graphics and low power optimizations.
• Entry-level Tablets  Provides core application processing, display control and multimedia interfaces suitable for entry‑level tablet designs.
• Barcode Scanners  Embedded scanner solutions can leverage the processor’s I/O set and security features for robust consumer deployments.

Unique Advantages

• Single-chip multimedia processing: A Cortex‑A9 core with integrated 2D graphics and multimedia accelerators reduces the need for external co‑processors.
• Broad interface integration: USB 2.0 with PHY, Ethernet, display controllers and AC97 audio reduce BOM and simplify system wiring.
• Comprehensive security stack: Multiple hardware security elements (TrustZone, secure JTAG, secure memory, etc.) enable secure boot and runtime protection.
• Optimized power profile: On‑chip power management and an architecture tuned for low power make it suitable for battery‑sensitive consumer devices.
• Compact packaging: 432‑MAPBGA (13 × 13 mm) package supports space‑constrained board designs.

Why Choose MCIMX6L8DVN10ABR?

The MCIMX6L8DVN10ABR positions itself as a compact, integrated application processor for consumer multimedia and embedded designs that need a balance of processing capability and low power. With a single ARM® Cortex®‑A9 core at 1.0 GHz, integrated 2D graphics, a wide set of I/O and an extensive security feature set, it fits designs where streamlined system integration and RoHS compliance are priorities.

Engineers building entry‑level tablets, eReaders or embedded scanning devices will find a ready set of interfaces and on‑chip power management that reduce external component count and simplify development, backed by NXP Semiconductors documentation and product support.

Request a quote or contact sales to discuss availability, pricing and how the MCIMX6L8DVN10ABR can be integrated into your next consumer multimedia or embedded design.
