MCIMX6L7DVN10AB

The MCIMX6L7DVN10AB is an NXP Semiconductors i.MX 6SoloLite series applications processor featuring a single ARM® Cortex®‑A9 core running at up to 1.0 GHz. The device targets multimedia-focused consumer applications and integrates graphics and power-management features optimized for low power consumption.

Designed for compact embedded designs, the part combines a 32‑bit core architecture with onboard graphics acceleration, flexible memory interfaces, and a range of peripheral connectivity options to support entry-level tablets, eReaders and handheld scanning devices.

Key Features

• Core — Single ARM® Cortex®‑A9 32‑bit core operating at up to 1.0 GHz for general-purpose application processing.
• Co‑processors — Multimedia and NEON™ SIMD support for media and signal processing acceleration.
• Memory — Integrated memory controller supporting LPDDR2, LVDDR3 and DDR3 memories for flexible system RAM options.
• Graphics — 2D graphics processor and graphics acceleration to support display and UI tasks.
• Connectivity — Integrated Ethernet 10/100 Mbps (1), USB 2.0 with PHY (3), and AC97 audio interface for common peripheral and network connections.
• Display and I/O — Built‑in controllers for keypad and LCD interfaces to support human‑machine interfaces.
• Security — Hardware security suite including ARM TZ, Boot Security, Cryptography, RTIC, Secure Fusebox, Secure JTAG, Secure Memory, Secure RTC and Tamper Detection.
• Power and Integration — Integrated power management and design optimized for low power consumption as described in the i.MX 6SoloLite documentation.

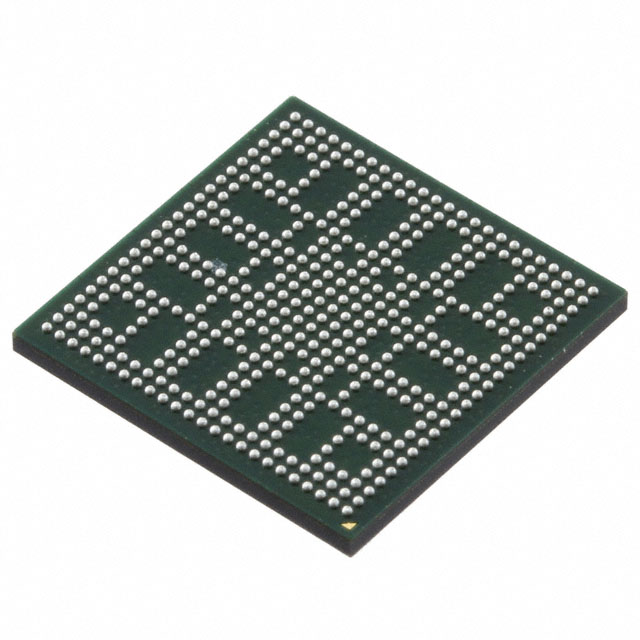

• Package and Mounting — Available in a 432‑MAPBGA 13 × 13 mm supplier package (listed as 432‑TFBGA package case) with surface‑mount assembly.
• Operating Range — Rated for operation from 0 °C to 95 °C.
• Compliance — RoHS compliant.

Typical Applications

• Color and Monochrome eReaders — Integrated graphics and low‑power operation support display‑centric, battery‑sensitive reading devices.
• Entry-Level Tablets — Single‑core application processing with multimedia acceleration and multiple memory interface options for cost‑sensitive tablet designs.
• Barcode Scanners and Handhelds — Compact package, onboard connectivity and security features fit handheld scanning and data‑capture devices.
• Consumer Multimedia Devices — Multimedia co‑processor and array of interfaces enable basic audio, display and connectivity functions in consumer products.

Unique Advantages

• Highly integrated multimedia platform: Single Cortex‑A9 core with NEON SIMD and a 2D graphics processor reduces the need for external accelerators.
• Flexible memory support: Controllers for LPDDR2, LVDDR3 and DDR3 enable designers to choose the memory type that matches system cost and power targets.
• Rich peripheral set: Multiple USB 2.0 ports with PHY, 10/100 Ethernet and AC97 provide broad connectivity without extra interface chips.
• Comprehensive hardware security: Multiple on‑chip security features (ARM TZ, secure boot, cryptography, tamper detection, secure fusebox/JTAG/memory/RTC) simplify implementation of protected systems.
• Compact, manufacturable package: 432‑MAPBGA (13 × 13 mm) surface‑mount package supports small form‑factor designs and standard PCB assembly.
• Designed for low power: Integrated power management and architecture optimizations in the i.MX 6SoloLite family help reduce overall system power consumption.

Why Choose MCIMX6L7DVN10AB?

The MCIMX6L7DVN10AB positions itself as a compact, integrated application processor delivering 1.0 GHz Cortex‑A9 performance with multimedia and security capabilities well suited to consumer embedded designs. Its combination of flexible memory interfaces, built‑in graphics acceleration and a broad set of peripherals enables streamlined BOMs for display‑centric and handheld applications.

As part of the i.MX 6SoloLite family from NXP, this device provides a scalable platform option for designers targeting low‑power multimedia devices where package density, integrated security and standard connectivity are required.

If you would like pricing, availability or to request a quote for MCIMX6L7DVN10AB, submit an inquiry and our team will respond with a quote and procurement details.
