MCIMX6L2DVN10AA

The MCIMX6L2DVN10AA is an NXP Semiconductors i.MX 6L series microprocessor featuring a single ARM® Cortex®-A9 core running at 1.0 GHz. It is targeted at multimedia-focused embedded designs that require integrated processing, graphics acceleration and a compact BGA package.

This device combines a high-performance 32‑bit application core with integrated power management and 2D graphics processing, making it suitable for consumer devices such as eReaders, entry-level tablets and barcode scanners.

Key Features

• Core Single ARM® Cortex®-A9 core, 32‑bit, operating up to 1 GHz for responsive application processing.
• Multimedia & SIMD Multimedia co-processor support and NEON™ SIMD acceleration to improve media and signal processing tasks.
• Graphics & Display Integrated 2D graphics acceleration plus display interface controllers for LCD and keypad support.
• Memory Interfaces On-chip memory controller supporting LPDDR2, LVDDR3 and DDR3 (including DDR3-800 as referenced in the datasheet).
• Connectivity Single 10/100 Mbps Ethernet interface and up to three USB 2.0 ports with integrated PHY for peripheral and network connectivity.
• Audio & Legacy I/O AC97 audio interface for legacy codec support.
• Security Hardware security features including ARM TrustZone (ARM TZ), Boot Security, Cryptography, RTIC, Secure Fusebox, Secure JTAG, Secure Memory, Secure RTC and Tamper Detection.
• Power & Integration Integrated power management as described in the processor family datasheet to simplify power design and system integration.

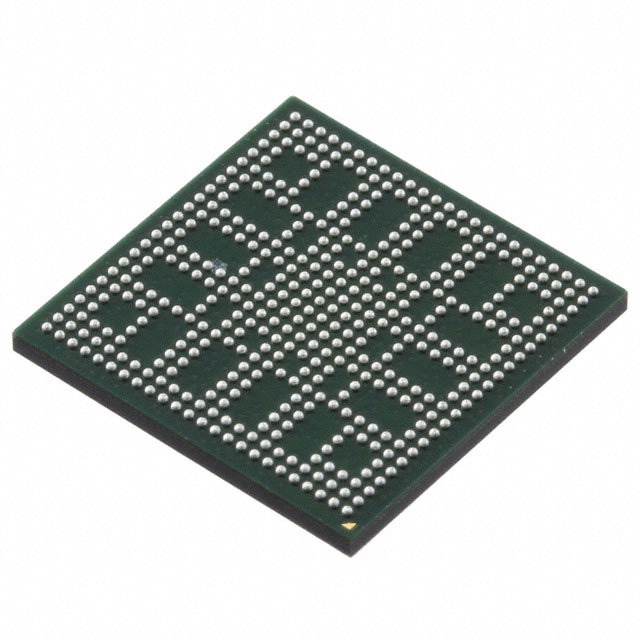

• Package & Mounting 432‑MAPBGA supplier device package (13x13 mm), surface mount; package case referenced as 432‑TFBGA in product data.
• Operating Range & Compliance Operating temperature 0°C to 95°C and RoHS compliant; consumer-grade qualification as specified.

Typical Applications

• Color and Monochrome eReaders Use the integrated display controller, 2D graphics acceleration and low-power architecture for responsive page rendering and long battery life.
• Entry-Level Tablets Single-core processing with multimedia acceleration and multiple USB ports supports basic tablet experiences and peripheral connectivity.
• Barcode Scanners On-chip multimedia and NEON SIMD acceleration assist in image processing and decode tasks in compact, embedded scanner designs.

Unique Advantages

• Highly integrated multimedia processing: Single Cortex‑A9 core with NEON SIMD and 2D graphics reduces the need for external accelerators.
• Flexible memory support: LPDDR2, LVDDR3 and DDR3 controller support (including DDR3‑800) enables designers to match memory choices to cost and performance targets.
• Comprehensive security suite: Multiple hardware security mechanisms (TrustZone, secure fusebox, secure JTAG, cryptography, etc.) protect boot and runtime integrity.
• Broad connectivity: Integrated Ethernet and multiple USB 2.0 + PHY interfaces simplify networking and peripheral expansion.
• Compact surface-mount package: 432‑MAPBGA (13x13) package provides a small footprint for space-constrained embedded designs.
• Industry-ready documentation: Series datasheet includes package, electrical characteristics, boot configuration and recommended connections to accelerate development.

Why Choose MCIMX6L2DVN10AA?

The MCIMX6L2DVN10AA positions itself as a balanced solution for consumer-focused embedded products that need multimedia capability, hardware security and a compact form factor. Its single ARM® Cortex®-A9 core running at 1.0 GHz, combined with NEON SIMD and 2D graphics, delivers the processing and media acceleration required for eReaders, tablets and portable scanners while integrated power management helps streamline system design.

Designed for developers seeking a validated silicon platform, this i.MX 6L family device offers flexible memory options, multiple connectivity interfaces and a comprehensive security feature set—helping reduce BOM complexity and support faster time-to-market for consumer embedded applications.

If you need pricing or availability for the MCIMX6L2DVN10AA, request a quote or submit a pricing inquiry and our team will respond with the information you need.
