MCIMX6G3DVK05AB

The MCIMX6G3DVK05AB is an NXP Semiconductors i.MX 6G series microprocessor based on a single ARM® Cortex®-A7 core running at up to 528 MHz. It targets embedded and consumer applications that require efficient processing, integrated system features and flexible memory and peripheral connectivity.

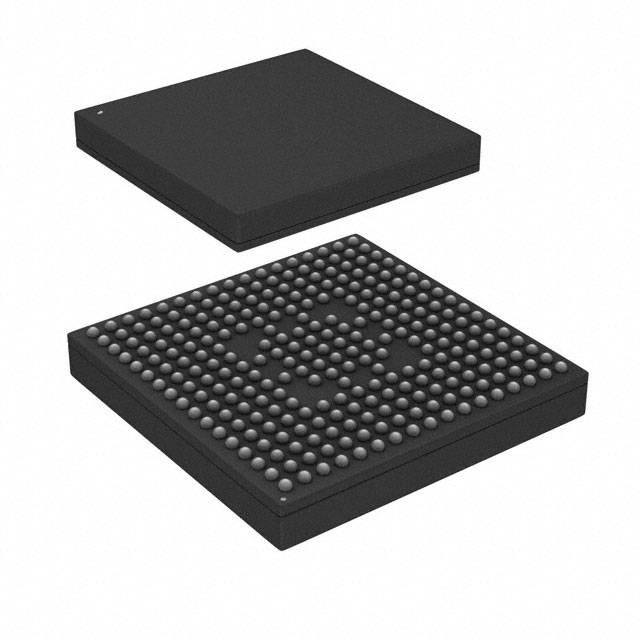

Designed for compact, surface-mount implementations, this device is supplied in a 272-MAPBGA (9×9 mm) package and includes an integrated power management module to simplify external power supply design and sequencing.

Key Features

• Core and Performance Single ARM® Cortex®-A7 core, 32-bit, operating up to 528 MHz for efficient application processing.
• Memory Interface Flexibility Supports LPDDR2, DDR3 and DDR3L memory controllers and a range of boot/storage options including raw and managed NAND flash, NOR flash, eMMC and Quad SPI.
• Connectivity Dual 10/100 Mbps Ethernet interfaces and two USB 2.0 ports with integrated PHY provide wired networking and host/device connectivity.
• Peripheral Interfaces Integrated display controllers include LCD and LVDS support; additional interfaces include CAN for vehicle and industrial networks.
• Multimedia and DSP Acceleration Includes multimedia co-processor capabilities and NEON™ SIMD support to accelerate signal processing tasks.
• Security and System Integrity Hardware security features include ARM TrustZone (ARM TZ), A-HAB, CAAM, CSU, SJC and SNVS to support secure boot and runtime protections.
• Power Management Integrated power management module reduces external power-supply complexity and simplifies sequencing for streamlined board design.
• Package and Mounting 272-LFBGA / 272-MAPBGA (9×9 mm) surface-mount package suitable for compact embedded designs.
• Operating Range and Compliance Consumer-qualified device with an operating temperature range of 0 °C to 95 °C and RoHS compliance.

Typical Applications

• Point-of-Sale Systems — Compact processing, multimedia support and multiple I/O interfaces suitable for terminals and kiosks.
• Telematics — Network interfaces, CAN and integrated power management enable vehicle telematics and fleet communication units.
• IoT Gateways and Edge Devices — Flexible memory options, Ethernet and USB connectivity make it suitable for edge processing and gateway functions.
• Consumer Embedded Products — Single-core efficiency and security features support consumer electronics and connected devices.

Unique Advantages

• Compact, Surface-Mount Package: 272-MAPBGA (9×9 mm) package allows high-density board designs without sacrificing connectivity.
• Integrated Power Management: On-chip power management reduces external component count and simplifies power sequencing.
• Broad Memory and Boot Options: Support for LPDDR2, DDR3, DDR3L, NAND, NOR, eMMC and Quad SPI provides flexibility for storage and performance trade-offs.
• Comprehensive Security Suite: Multiple hardware security modules (ARM TZ, A-HAB, CAAM, CSU, SJC, SNVS) help implement secure boot and protected runtime environments.
• Rich Peripheral Set: Dual Ethernet, dual USB 2.0 with PHY, CAN and display controller support enable diverse connectivity and interface requirements.
• Targeted for Embedded Consumer Designs: Consumer qualification and a 0 °C to 95 °C operating range align the device with mainstream embedded product requirements.

Why Choose MCIMX6G3DVK05AB?

The MCIMX6G3DVK05AB brings together a proven single-core ARM® Cortex®-A7 architecture with flexible memory interfaces, integrated power management and a broad set of security and connectivity features from NXP Semiconductors’ i.MX 6G family. Its compact 272-MAPBGA package and surface-mount mounting make it well suited for space-constrained embedded and consumer designs.

This part is a practical choice for engineers building point-of-sale systems, telematics units, IoT gateways and consumer embedded products that require a balanced mix of performance, integration and secure system capabilities, backed by documentation and datasheet support from the manufacturer.

If you would like pricing, availability or to request a quote for the MCIMX6G3DVK05AB, please submit a quote request or contact sales to start the procurement process.
